FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN K Flex Fuel
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

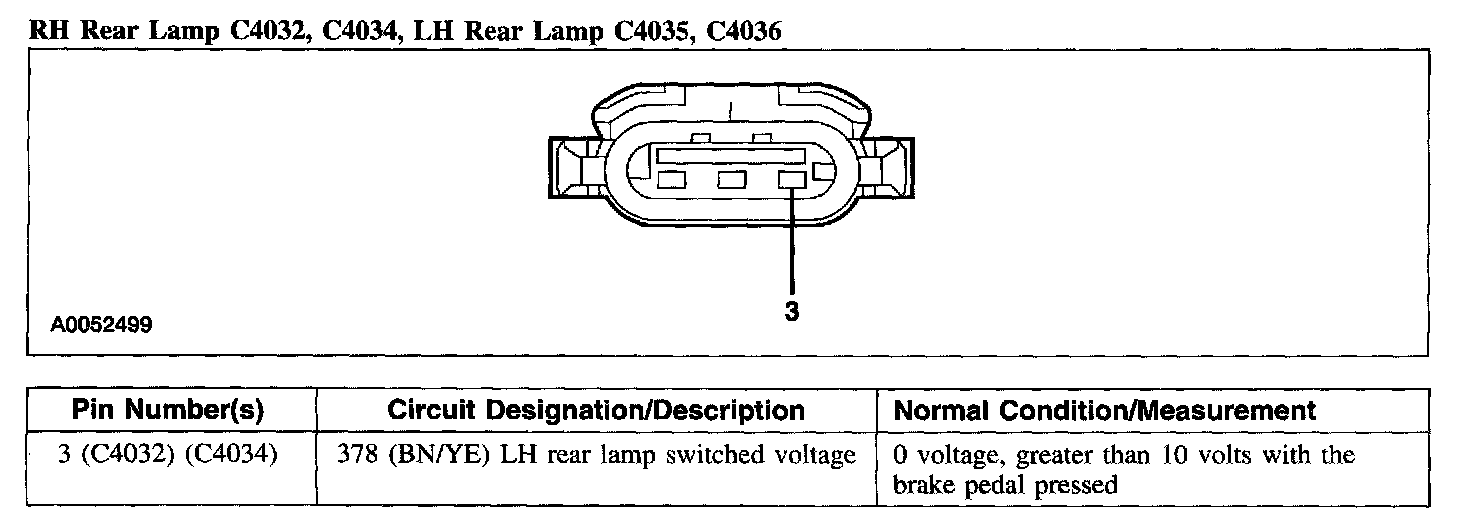

RH Rear Lamp C4032, C4034, LH Rear Lamp C4035, C4036
RH Rear Lamp C4032, C4034, LH Rear Lamp C4035, C4036

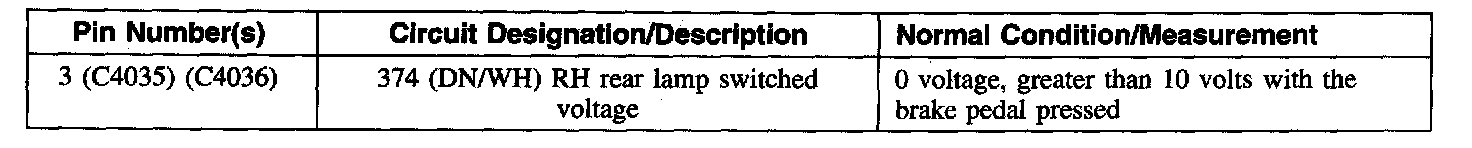

RH Rear Lamp C4032, C4034, LH Rear Lamp C4035, C4036, Part 1:
RH Rear Lamp C4032, C4034, LH Rear Lamp C4035, C4036, Part 2:
