Tests AO

PINPOINT TEST AO: THE INDICATOR DOES NOT OPERATE CORRECTLY - DOOR AJAR DISPLAY

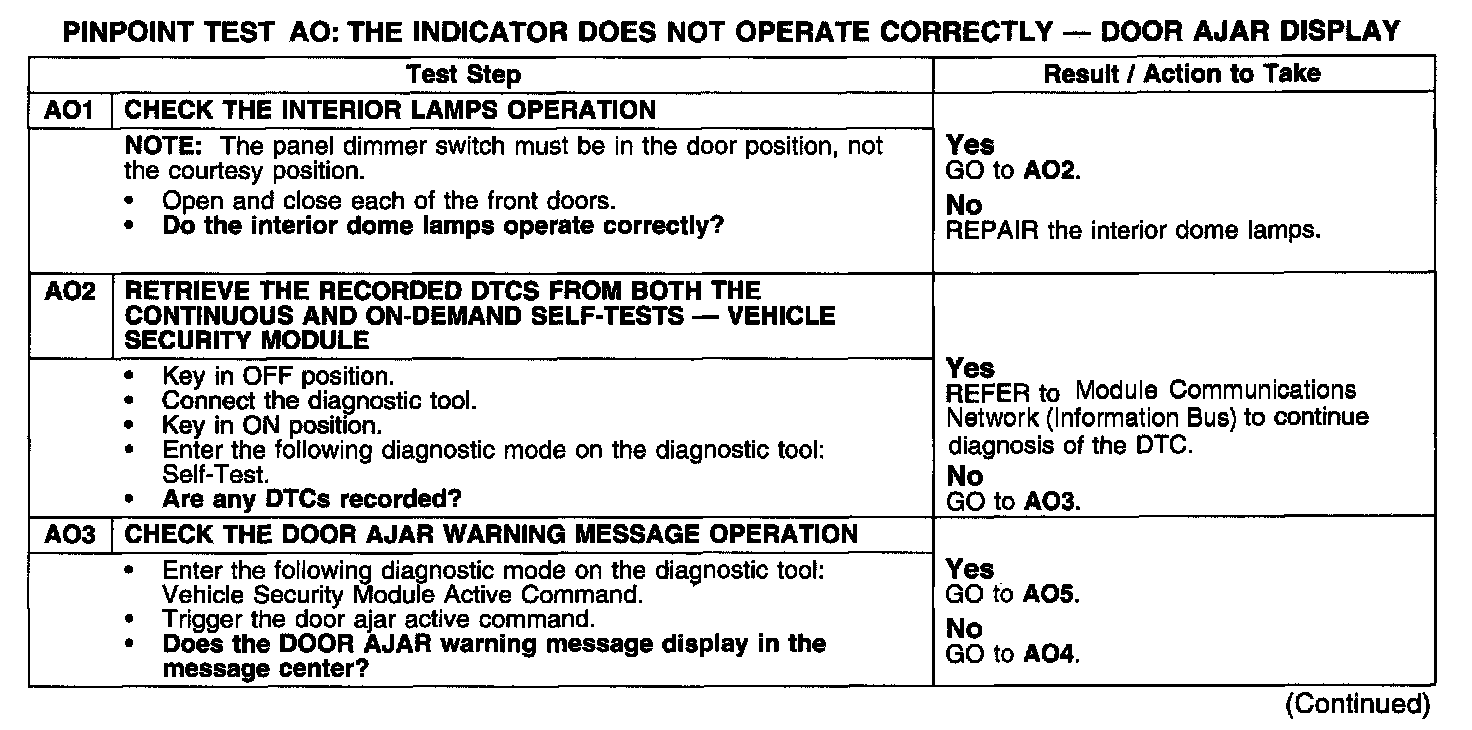

Test AO1-AO3:

Test AO4-AO5:

Normal Conditions
The vehicle security module communicates the door ajar status to the message center over the UART based protocol (UBP) communication network, circuit 693 (OG).

Possible Causes
- door ajar switch
- instrument cluster
- vehicle security module
