PINPOINT TEST AN: THE INDICATOR DOES NOT OPERATE CORRECTLY - LOW WASHER FLUID LEVEL DISPLAY

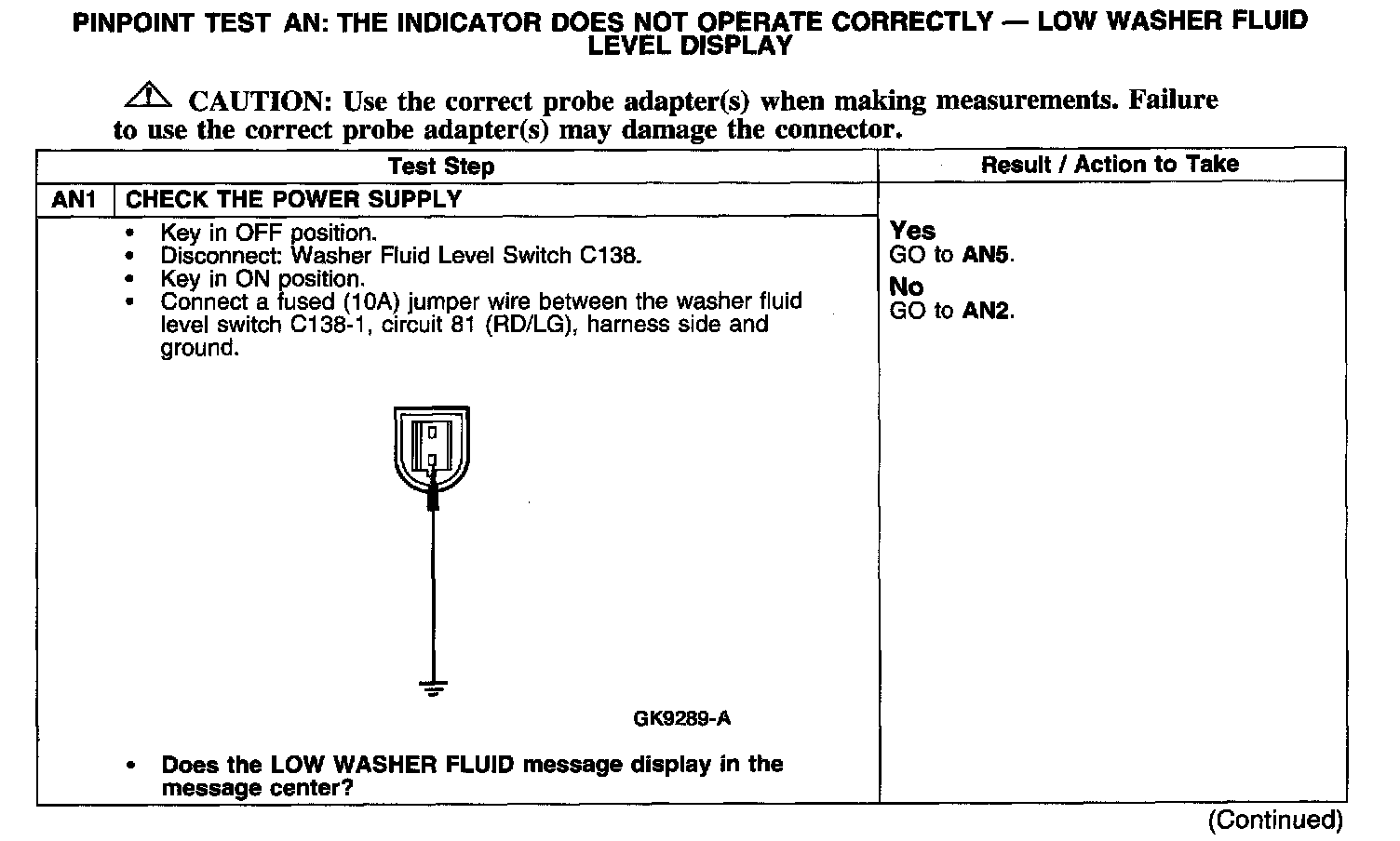

Test AN1:

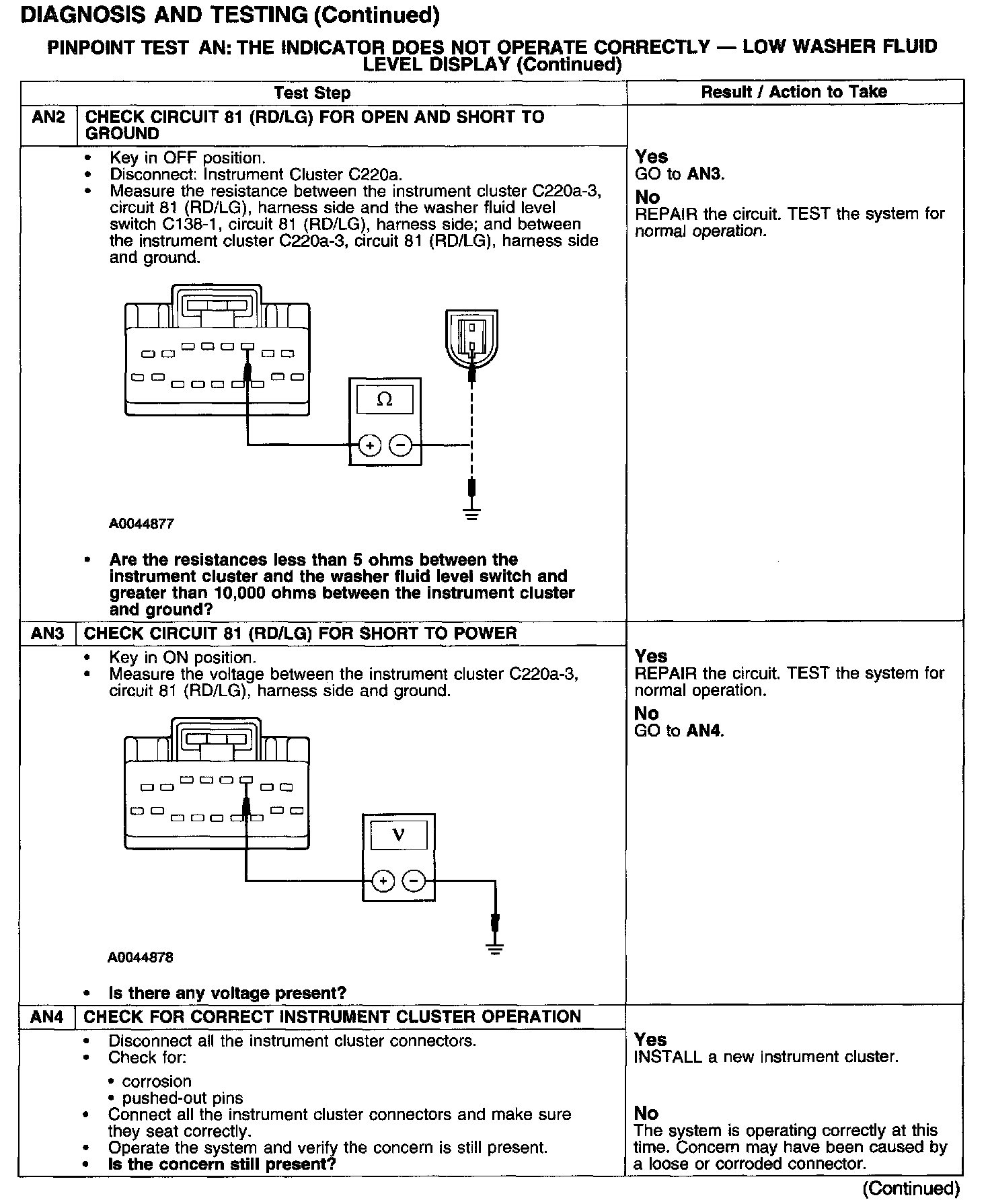

Test AN2-AN4:

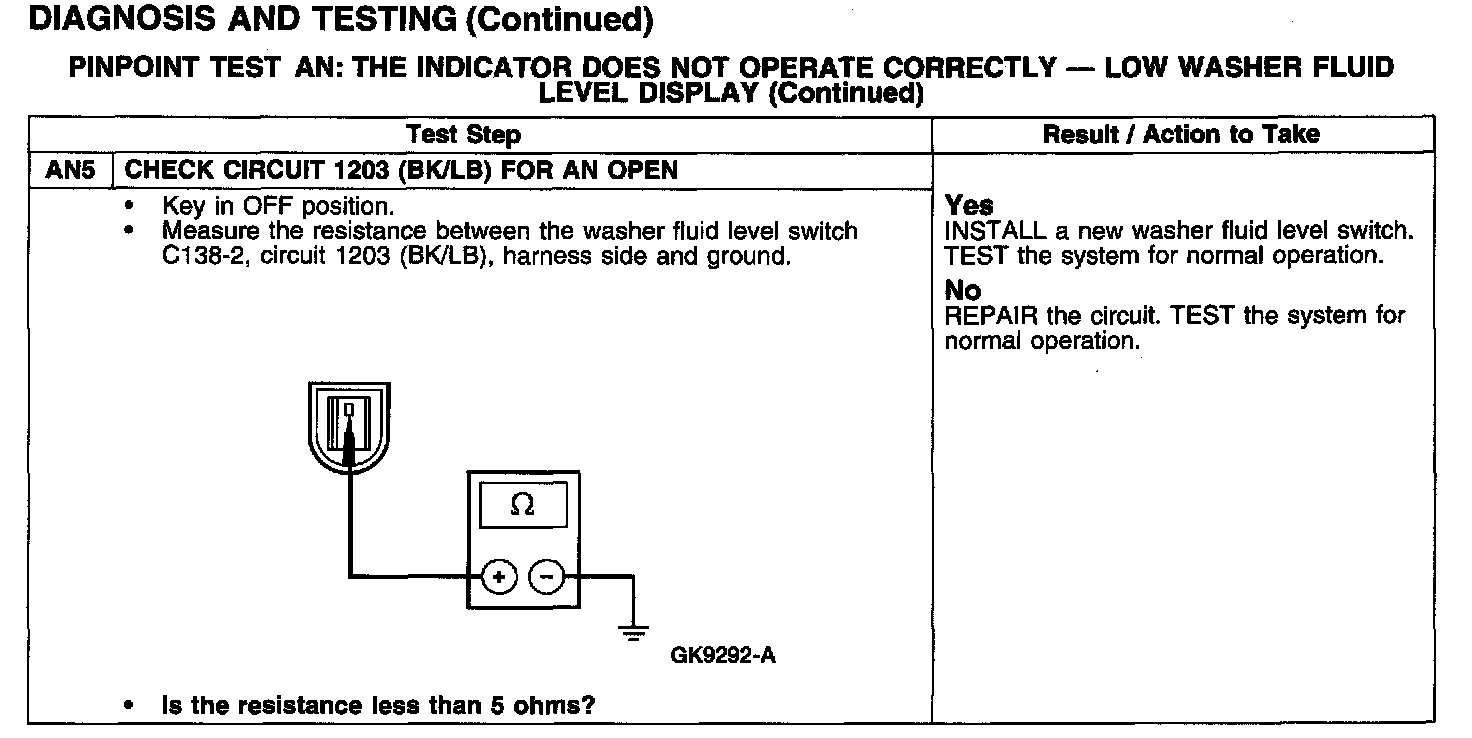

Test AN5:

Normal Conditions
The washer fluid level switch circuit 81 (RD/LG) is open when the washer fluid level is high. When the washer fluid level is low, the switch will close circuit 81 (RD/LG) with the ground circuit 1203 (BK/LB) to signal the message center to indicate the washer fluid level is low.

Possible Causes
- circuit 1203 (BK/LB) open
- circuit 81 (RD/LG) open or short
- instrument cluster
- washer fluid level switch
