Tests AL

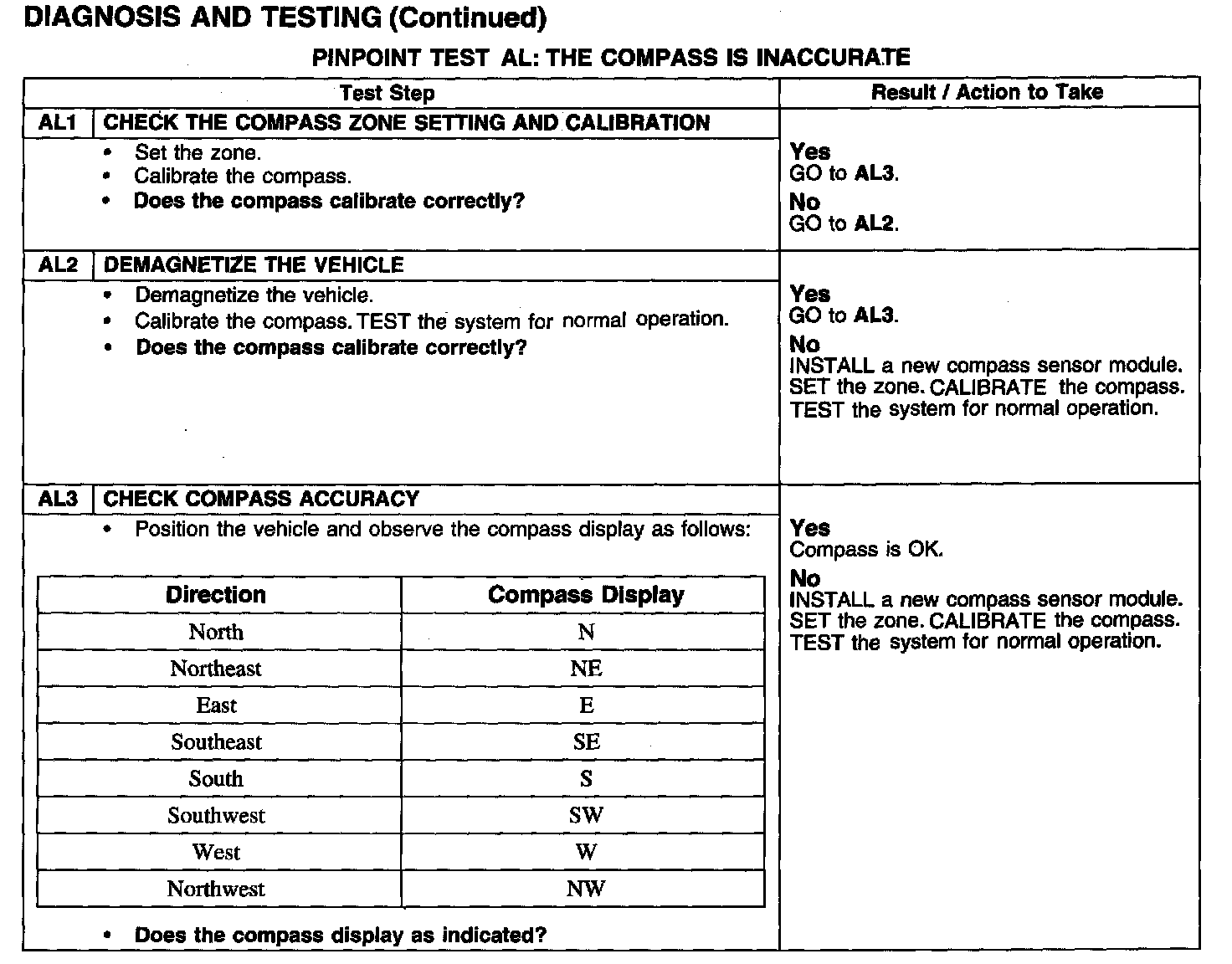

PINPOINT TEST AL: THE COMPASS IS INACCURATE

Test AL1-AL3:

Normal Operation
The compass sensor module communicates vehicle direction to the instrument cluster to be displayed in the message center.

Possible Causes
- compass sensor module
- vehicle is magnetized
