Auxiliary Temperature Blend Door Actuator C3019
Auxiliary Temperature Blend Door Actuator C3019

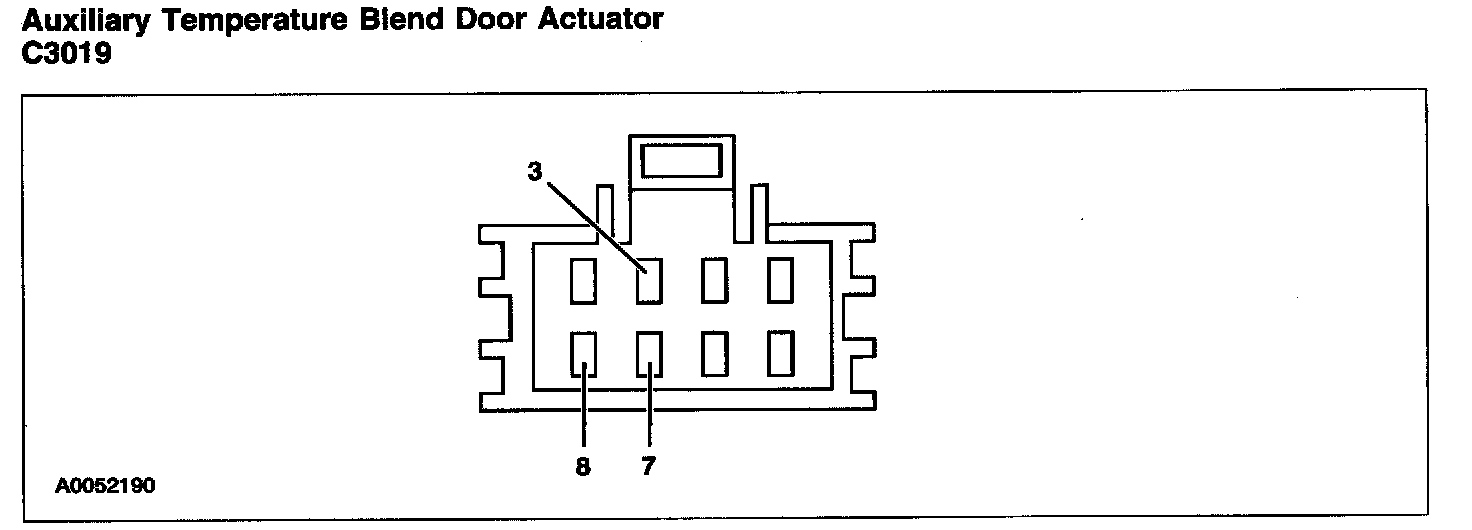

Auxiliary Temperature Blend Door Actuator C3019, Part 1:

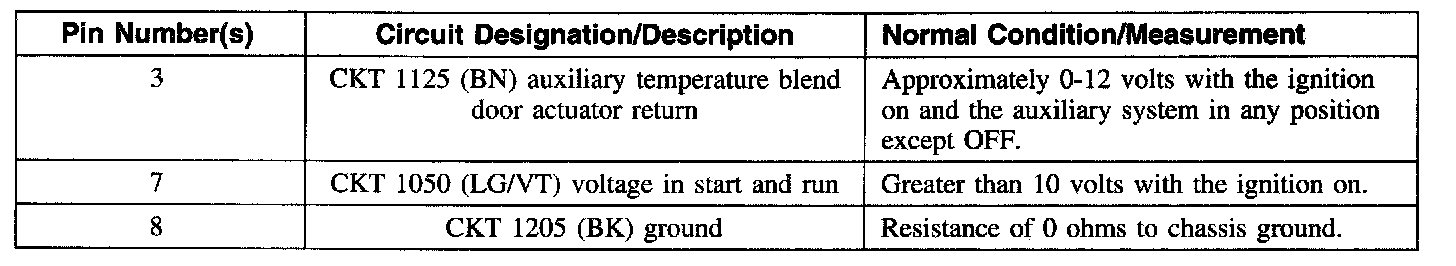

Auxiliary Temperature Blend Door Actuator C3019, Part 2:
