Rear Auxiliary Evaporator Outlet and Inlet Line

AUXILIARY EVAPORATOR OUTLET AND INLET LINE - REAR

REMOVAL

NOTE:
- Installation of a new accumulator is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the accumulator.
- New O-ring seals, lubricated in clean PAG oil, must be installed before reconnecting any A/C fitting which has been disconnected.

1. Position the vehicle on a hoist with the gear selector in NEUTRAL.
2. Recover the refrigerant.
3. Remove the spare tire.

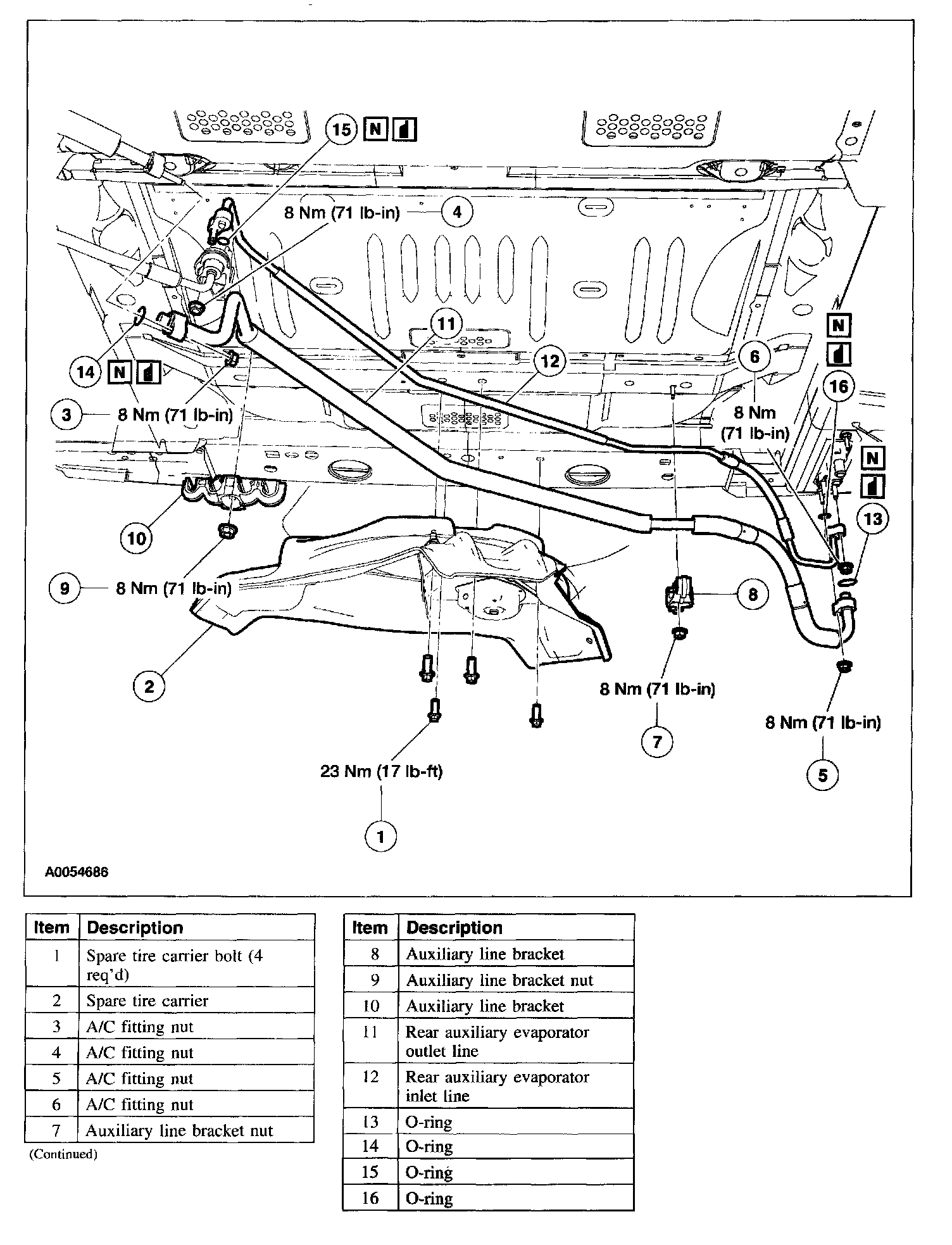

4. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install reverse the removal procedure.
2. Lubricate the refrigerant system with the correct amount of clean PAG oil.
3. Evacuate, leak test and charge the refrigerant system.
