Climate Control Assembly - DATC

CLIMATE CONTROL ASSEMBLY - DATC

REMOVAL

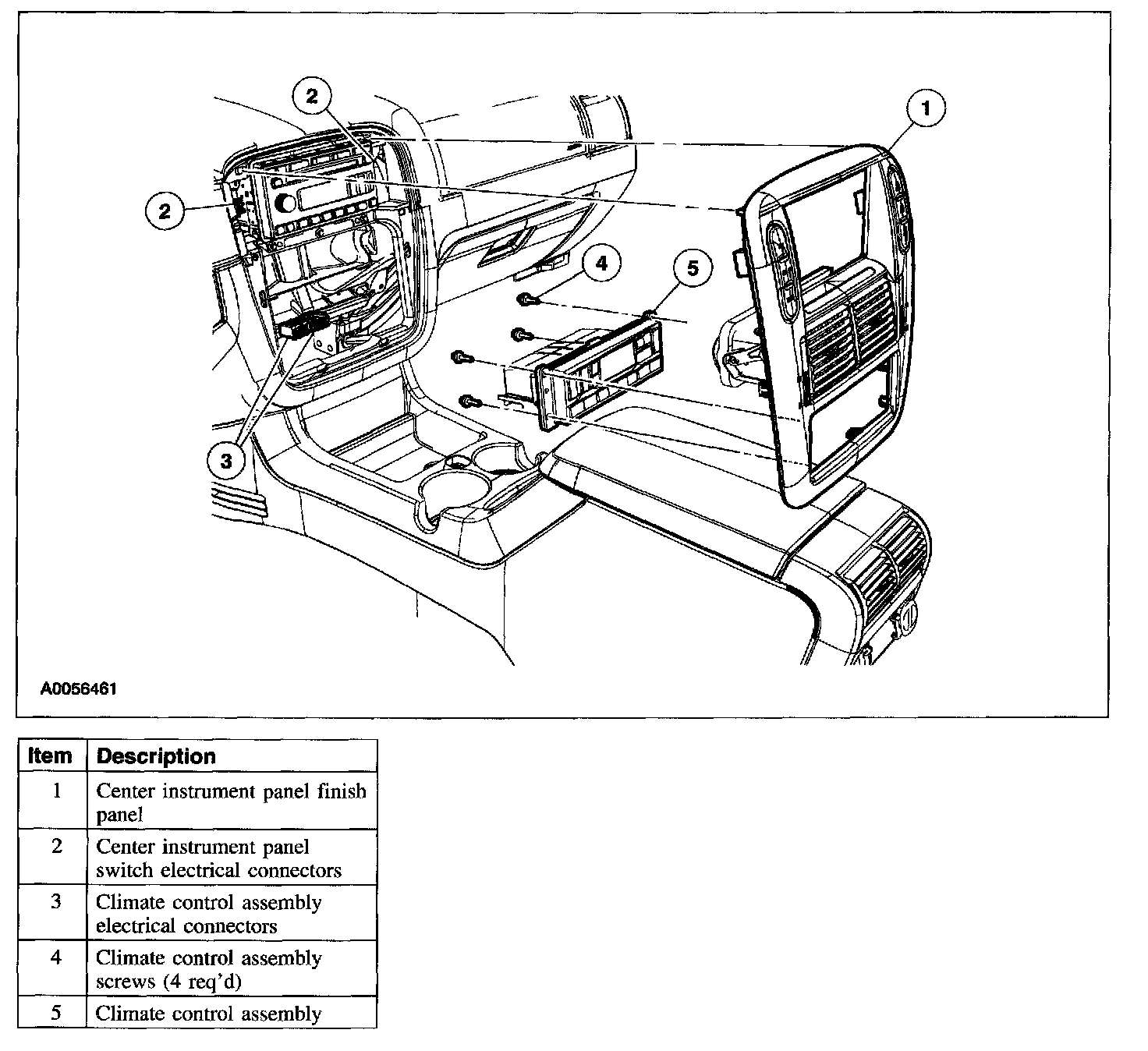

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
