Engine Mount: Service and Repair

Engine Support Insulators





Special Tool(s)

Removal and Installation

CAUTION: Any time bolts, washers, spacers, or nuts are loosened in the differential support for any reason, install new components to prevent damage.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the exhaust gas recirculation (EGR) valve tube.

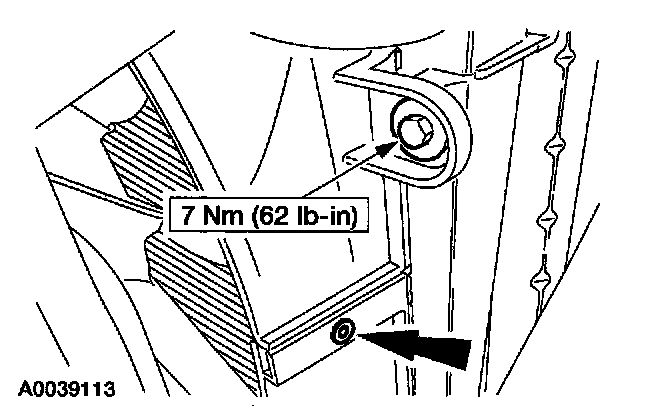

4. Remove the upper fan shroud.
^ Remove the bolts and, if equipped, the assembly screws.
^ Discard the assembly screws.





5. Remove the LH radio capacitor.





6. Remove the bolt and install the lifting eye.





7. Install the special tools.





8. Remove the components in the order indicated. To remove individual components, only carry out the listed steps.





9. NOTE: These steps are necessary for 4x4 equipped vehicles only.

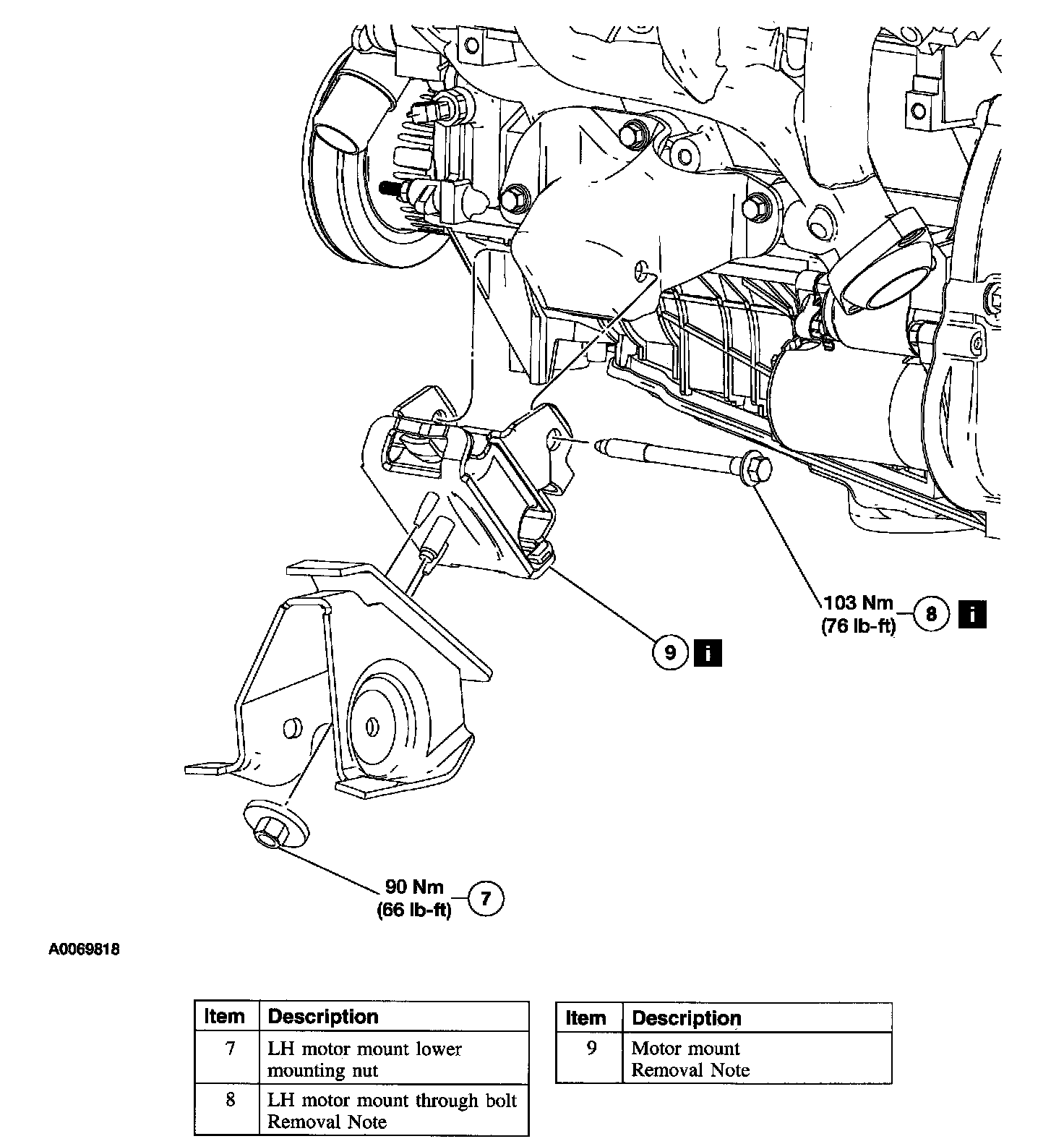

Illustration 1 of 3. Remove the components in the order indicated.





10. Illustration 2 of 3. Remove the components in the order indicated.





11. Illustration 3 of 3. Remove the components in the order indicated.
12. To install, reverse the removal procedure.

Item 2: Stabilizer Bar Removal Note
1. Allow the stabilizer bar to hang freely to allow clearance for motor mount removal.

Item 6: Axle Housing Removal Note

1. WARNING: Secure the axle to the jack with a safety strap. Failure to follow these instructions can result in personal injury.

Support the axle housing with a suitable jackstand.





2. Disconnect the vent hose from the differential housing vent tube.

Items 8, 9, 11 and 12: RH and LH Motor Mount and Through Bolt Removal Note
1. Using a suitable jack, raise the engine to remove the appropriate motor mount.
