Harmonic Balancer - Crankshaft Pulley: Service and Repair
Crankshaft Pulley and Crankshaft SealPart 1 Of 2:
Part 2 Of 2:

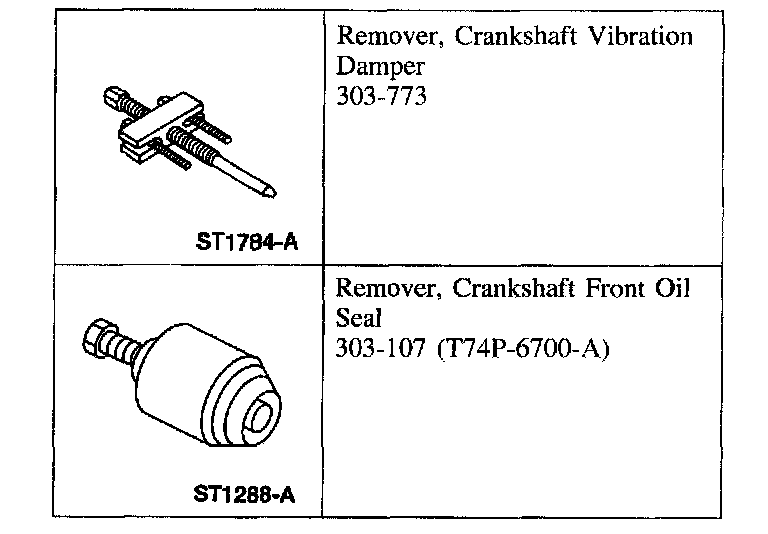

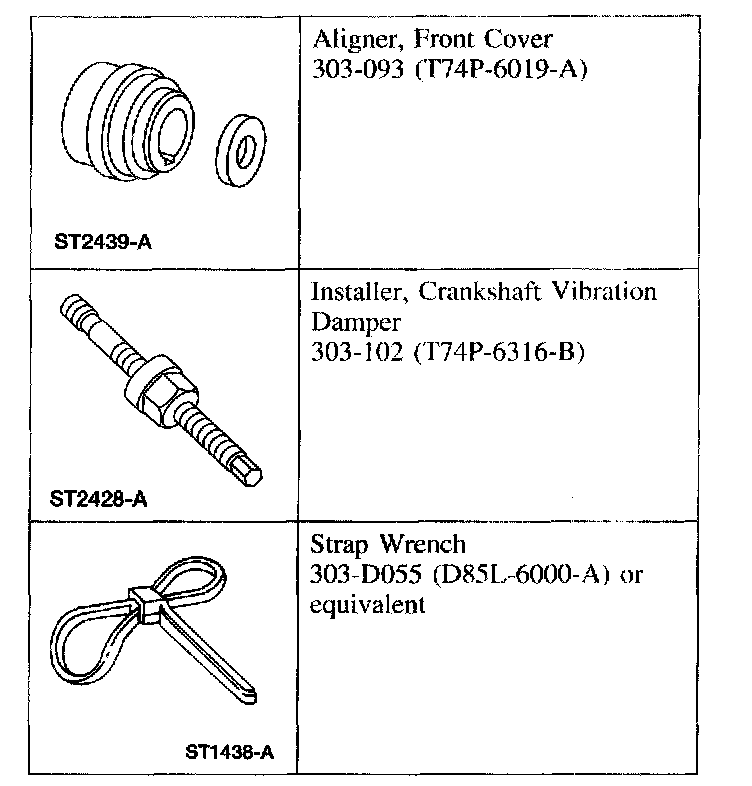

Special Tool(s)
Removal and Installation
1. Remove the fan shroud.
2. Remove the accessory drive belt.

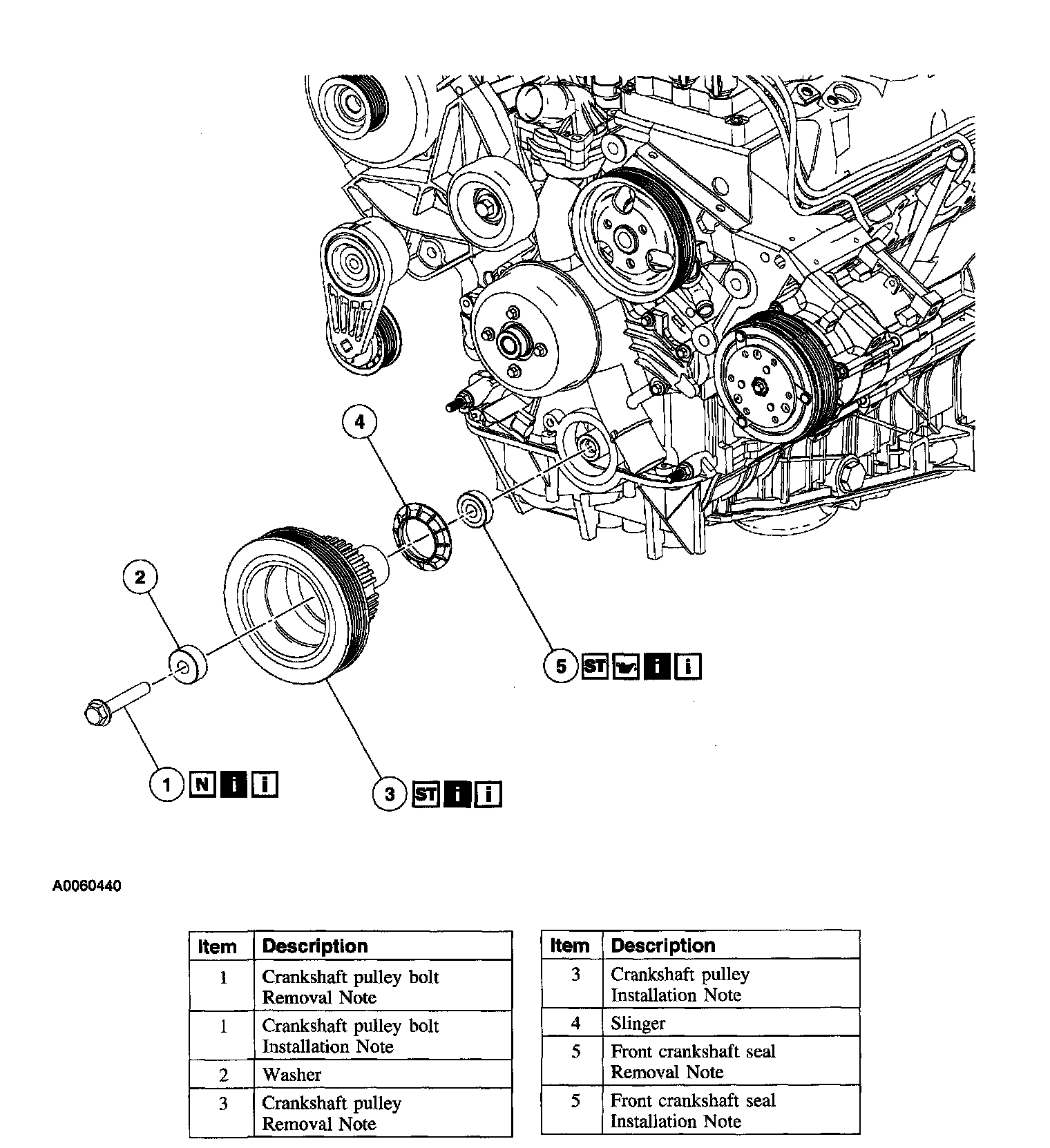

3. Remove the components in the order indicated.
4. To install, reverse the removal procedure.
Item 1: Crankshaft Pulley Bolt Removal Note
1. CAUTION: This bolt is torque-to-yield and cannot be reused.

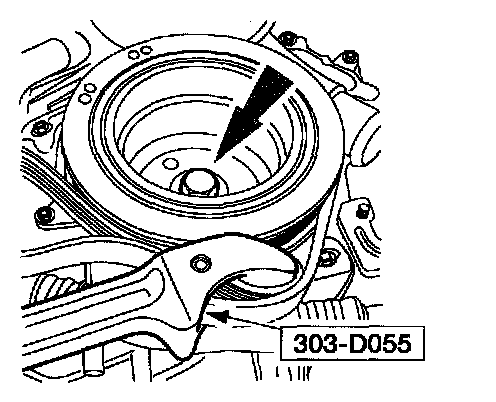

Using the special tool, remove and discard the damper bolt.
Item 3: Crankshaft Pulley Removal Note

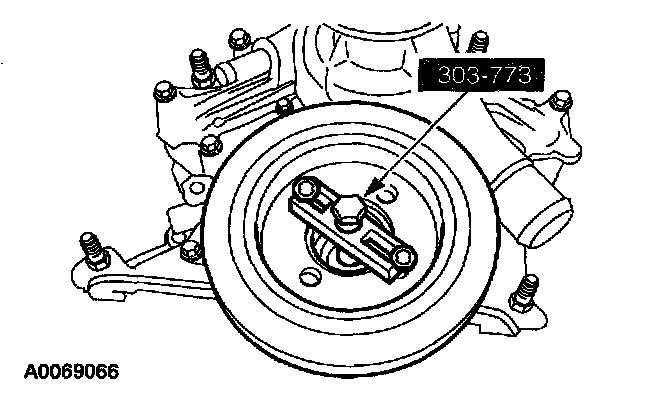

1. Using the special tool, remove the crankshaft pulley.
Item 5: Front Crankshaft Seal Removal Note

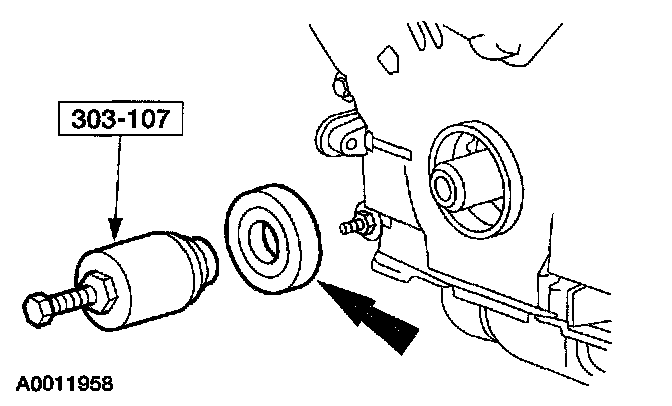

1. Using the special tool, remove the crankshaft front seal.
Item 5: Front Crankshaft Seal Installation Note

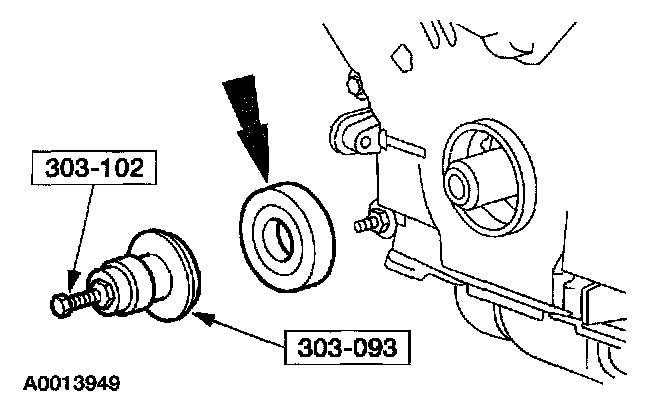

1. Using the special tool, install the crankshaft front seal.
Item 3: Crankshaft Pulley Installation Note

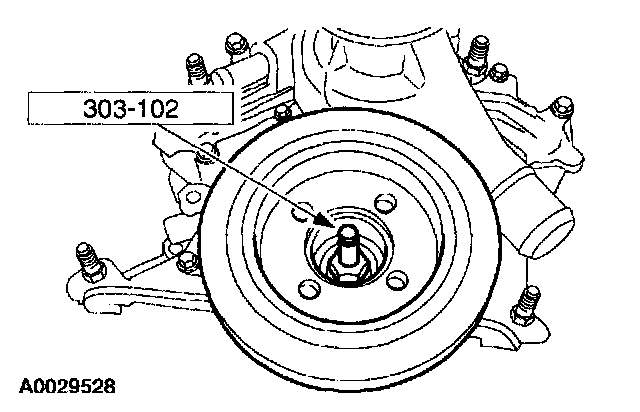

1. Using the special tool, install the crankshaft pulley
Item 1: Crankshaft Pulley Bolt Installation Note
1. Using the special tool, tighten the bolt in two stages:
1 Stage 1: Tighten the bolt to 45 Nm (33 ft. lbs.).
2 Stage 2: Tighten the bolt and additional 85 degrees.
