Cooling Module

Cooling Module
1. Drain the cooling system.
2. Recover the A/C refrigerant.
3. Remove the cooling fan.

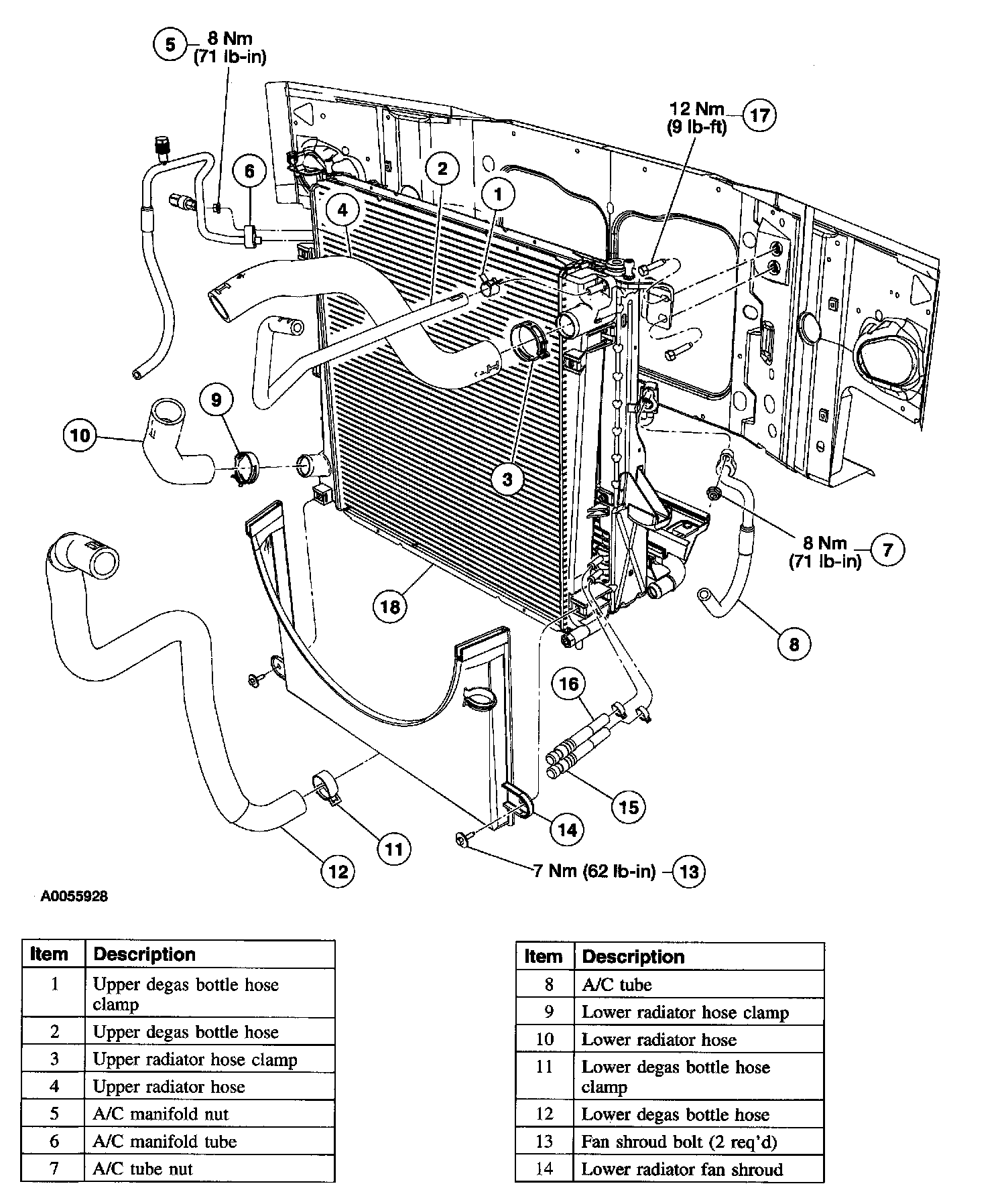

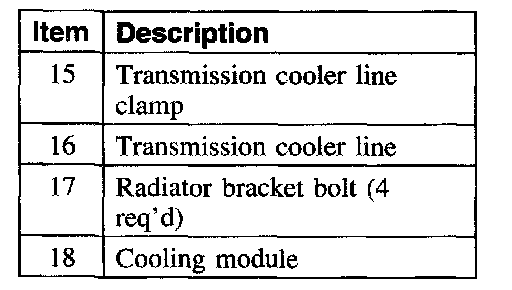

4. Remove the components in the order indicated.








5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
7. Evacuate, leak check and charge the A/C system.
