Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN K Flex Fuel >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 34

Diagram Set 34

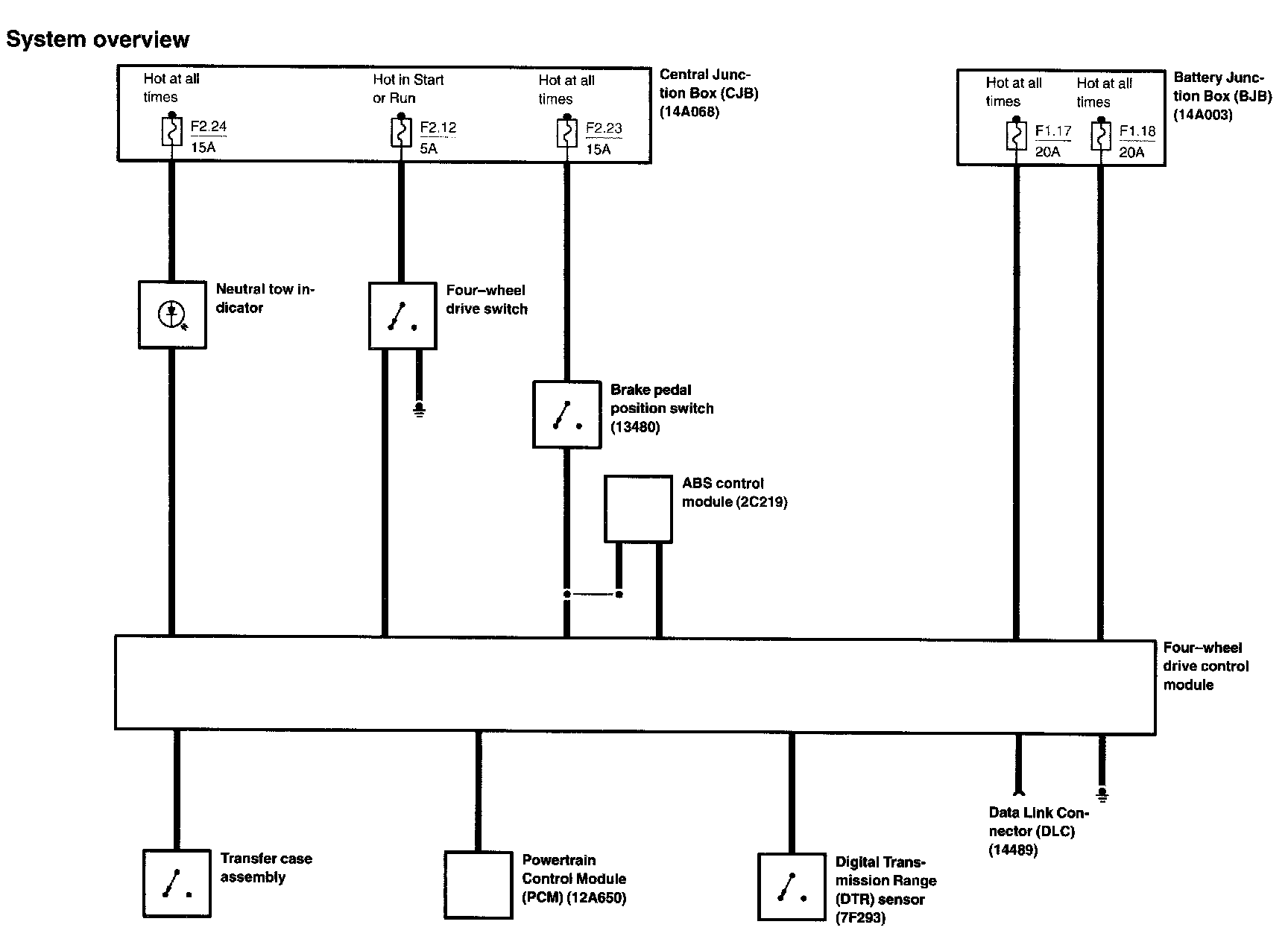

34-1, System Overview:

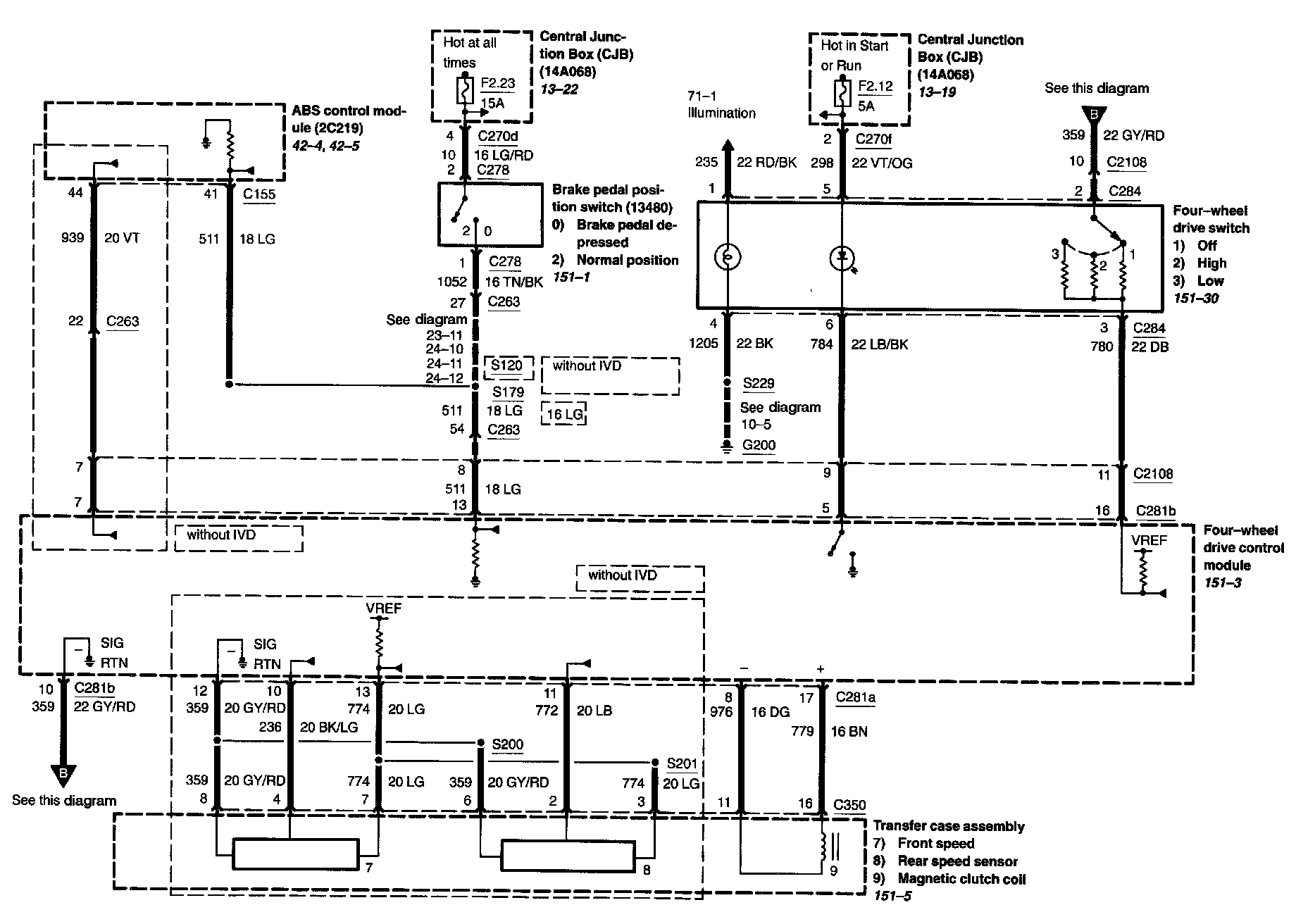

34-2:

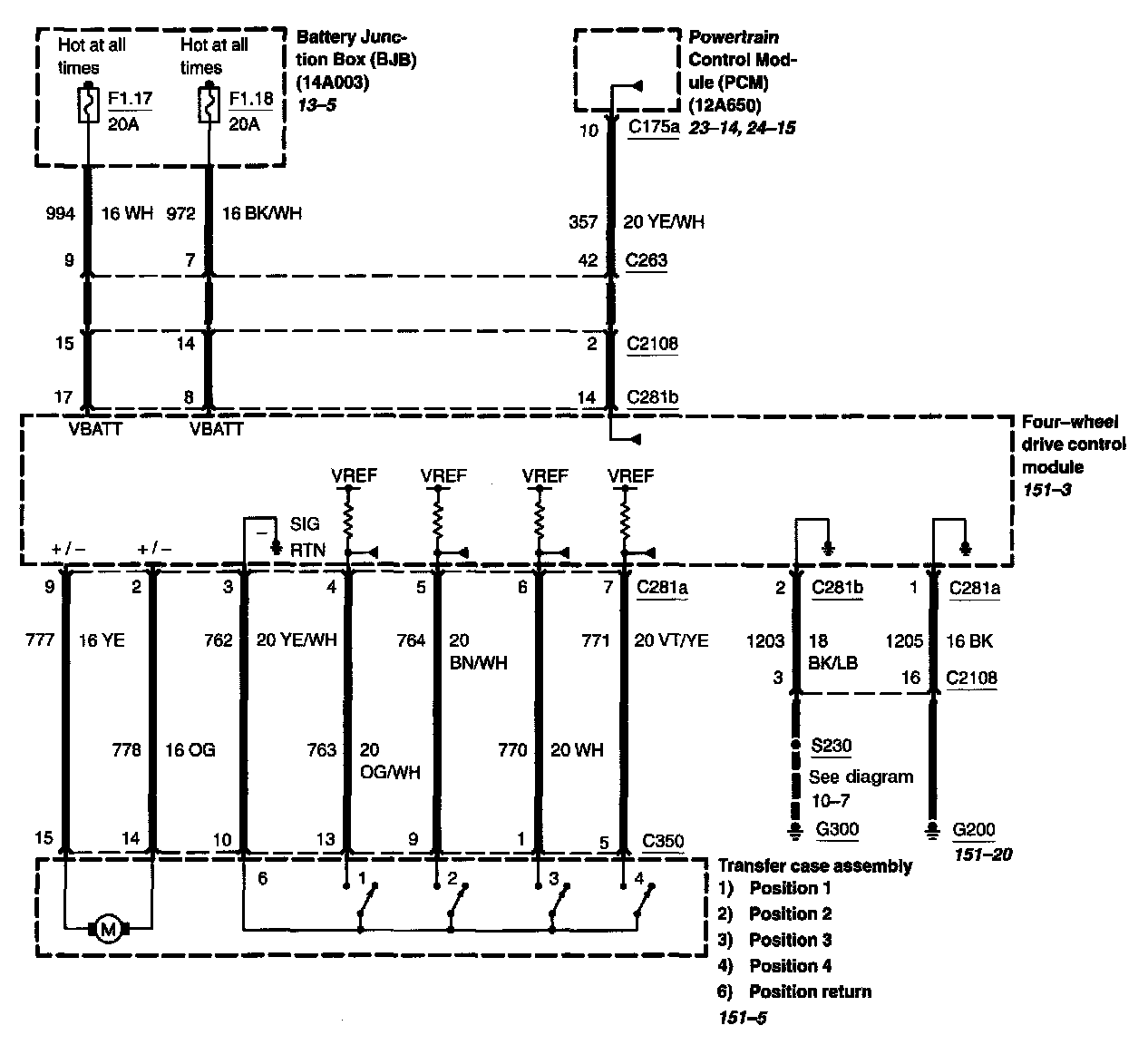

34-3:



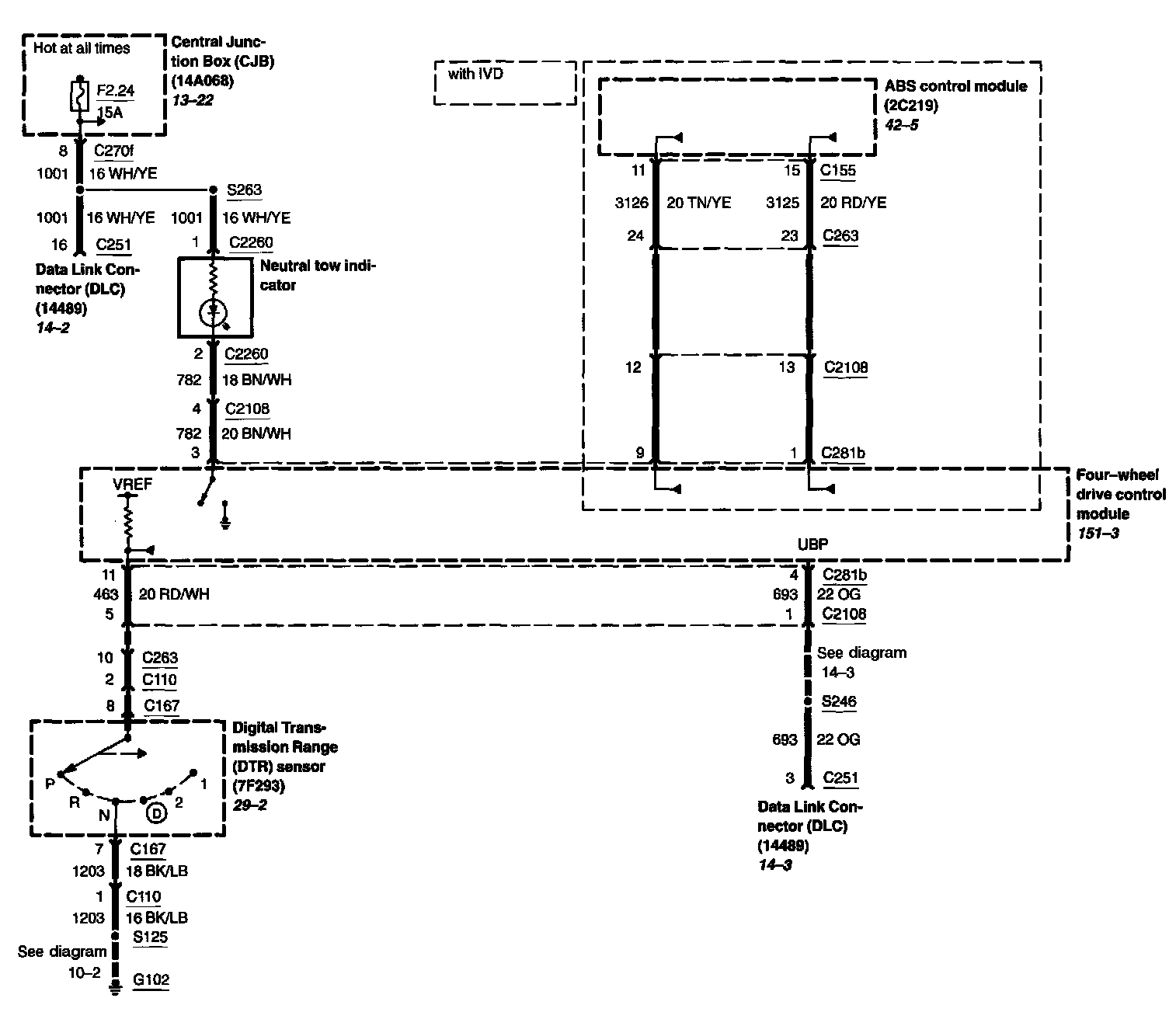

34-4:
