Test F














Pinpoint Test F: Vibration When The Brakes Are Applied

- Possible Causes
- uneven brake pad wear
- brake disc pad transfer
- brake disc
- suspension components

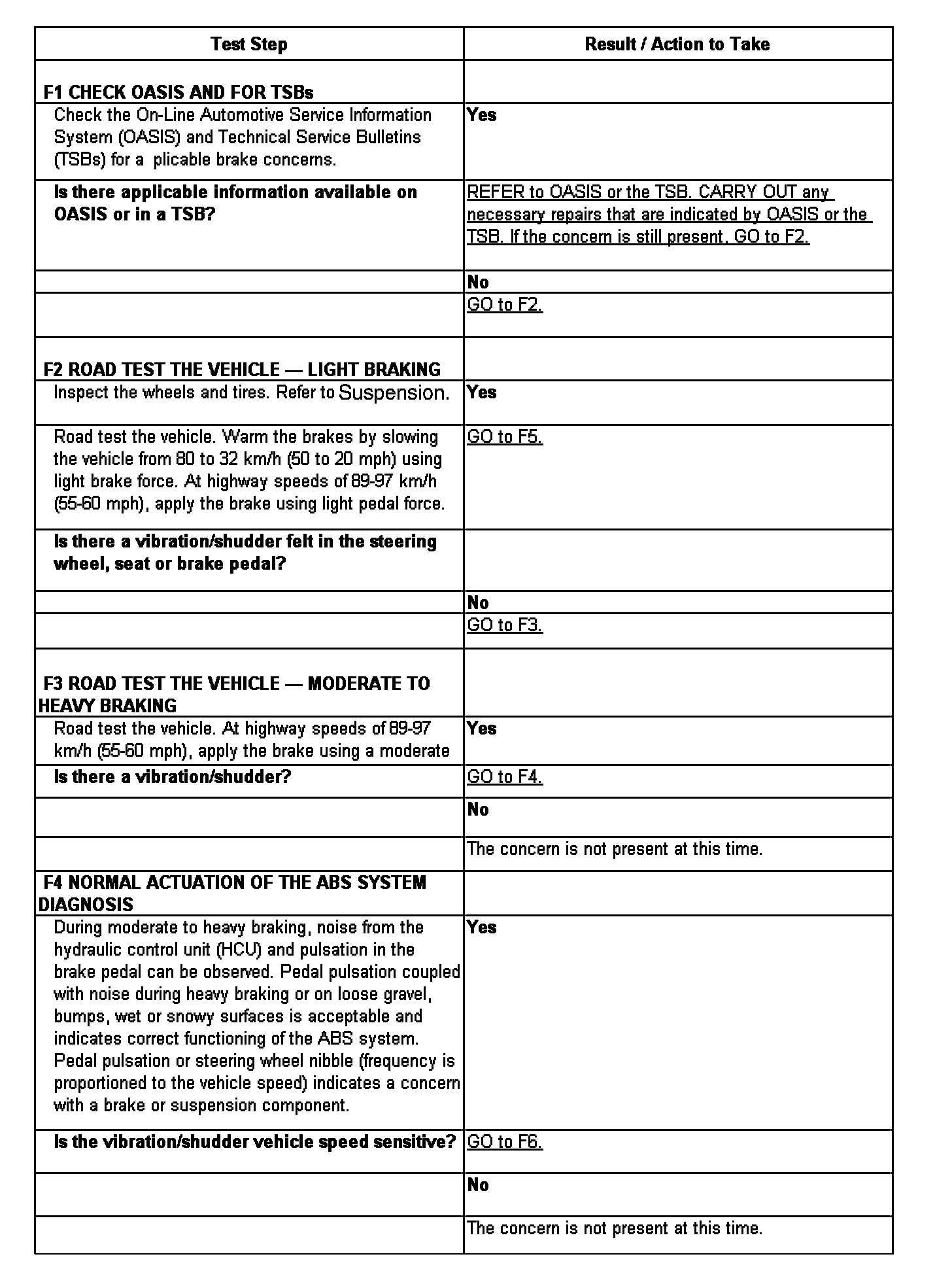

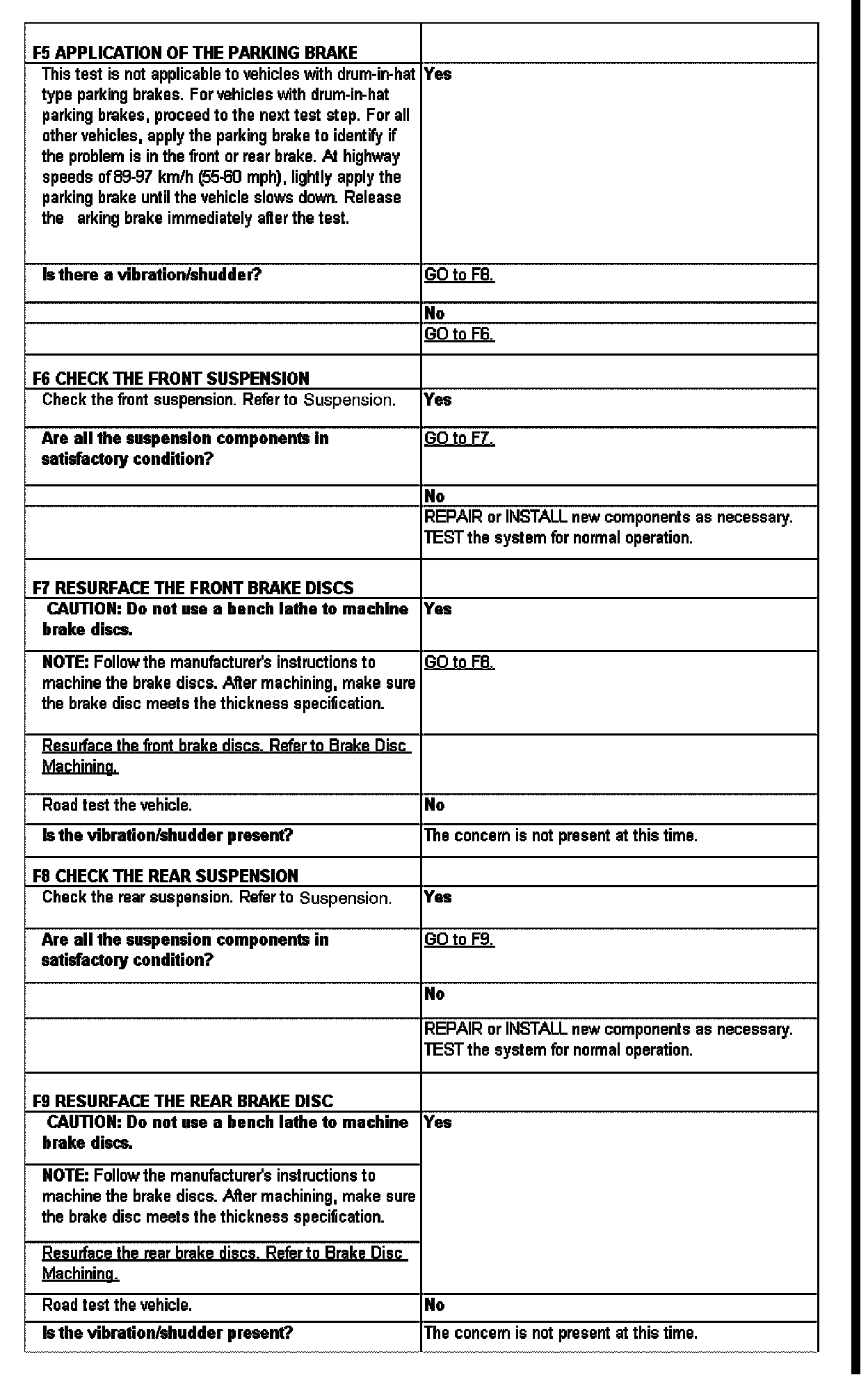

PINPOINT TEST F: VIBRATION WHEN THE BRAKES ARE APPLIED
