Vacuum Brake Booster: Service and Repair

Brake Master Cylinder and Brake Booster
1. Disconnect the battery ground cable.

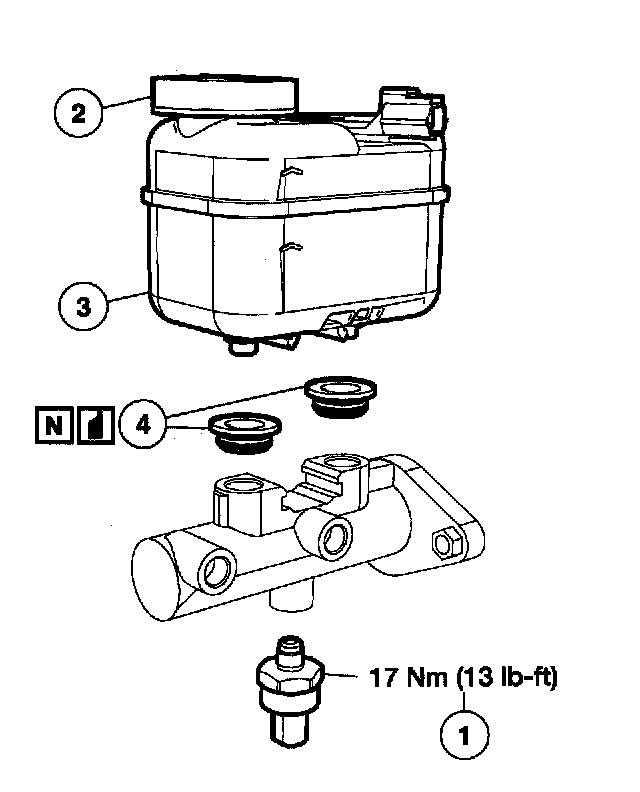

2. NOTE: IVD vehicle shown, non-IVD vehicle similar.

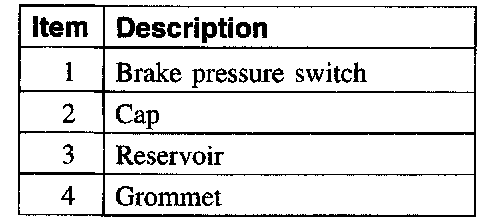

Remove the components in the order indicated in the illustration and table.
3. To install, reverse the removal procedure.
4. Bleed the brake system.

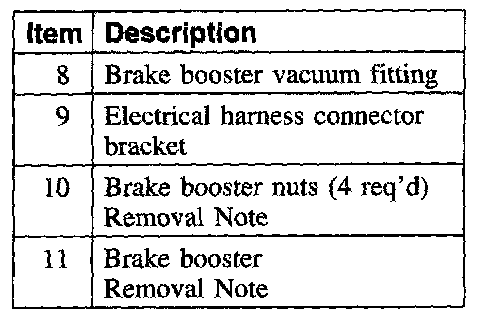

Item 10: Brake Booster Nuts Removal Note





1. NOTE: Use new nuts when installing the brake booster.

Remove the brake booster nuts.

Item 11: Brake Booster Removal Note











1. Disconnect the brake pedal to power brake booster push rod.
1 Remove the self-locking pin.
2 Remove the stoplight switch and the brake booster push rod from the brake pedal pin.
3 Remove the brake booster push rod bushing.
