Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN K Flex Fuel >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Wheel Speed Sensor LF C150, RF C160, LR C440, RR C426

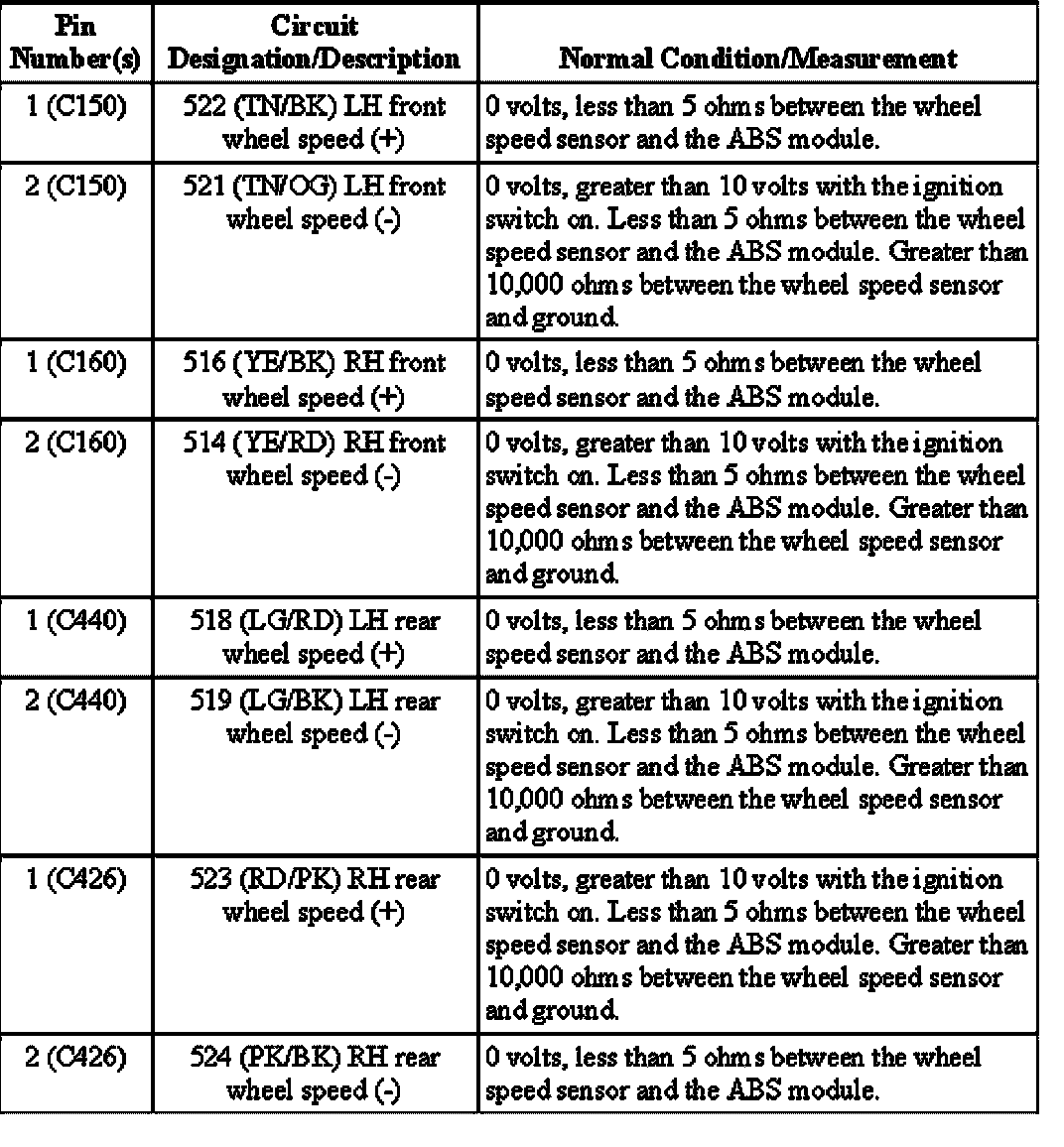

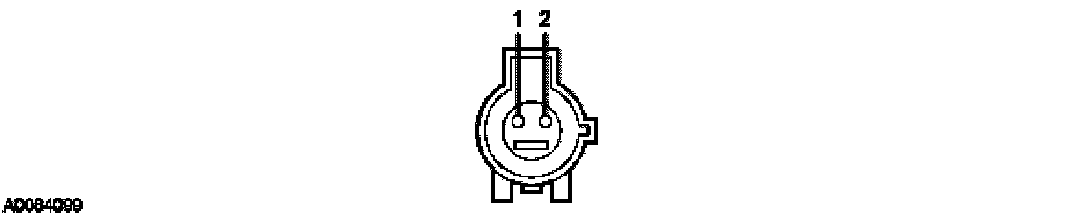

Wheel Speed Sensor LF C150, RF C160, LR C440, RR C426
