40 Percent E-Z Entry, Second Row

REAR SEAT - 40 PERCENT E-Z ENTRY, SECOND ROW

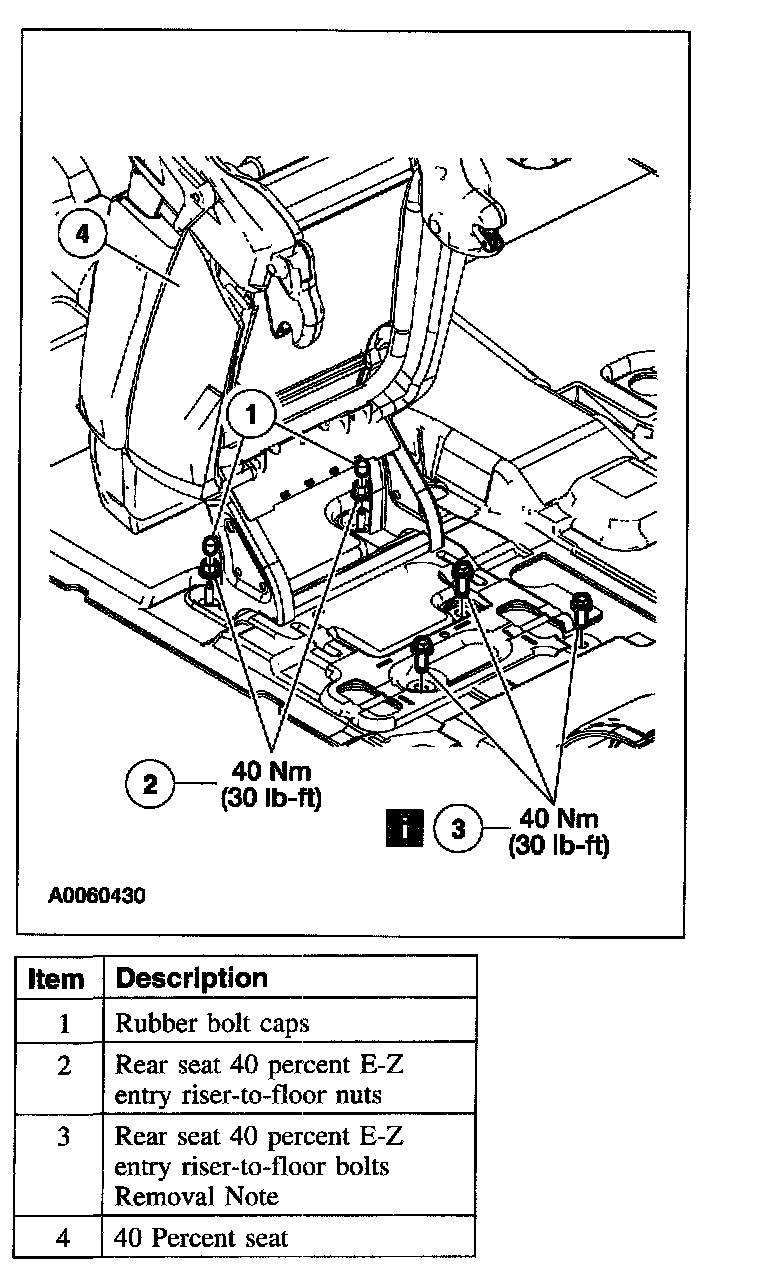

NOTE: LH seat is shown, RH is similar.

REMOVAL







1. Remove the components in the order listed in the illustration and table.

Item 3: Rear Seat 40 Percent E-Z Entry Riser-to-Floor Bolts Removal Note
1. Fold the affected 40 percent seat Up to the E-Z entry position.
2. Remove the three seat riser-to-floor bolts.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the active restraint system for correct operation.
