40 Percent of 60/40 Bench, Second Row

REAR SEAT CUSHION - 40 PERCENT OF 60/40 BENCH, SECOND ROW

DISASSEMBLY
1. Remove the second row, 40 percent seat.

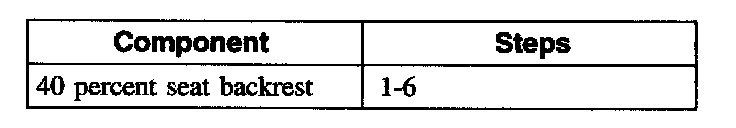

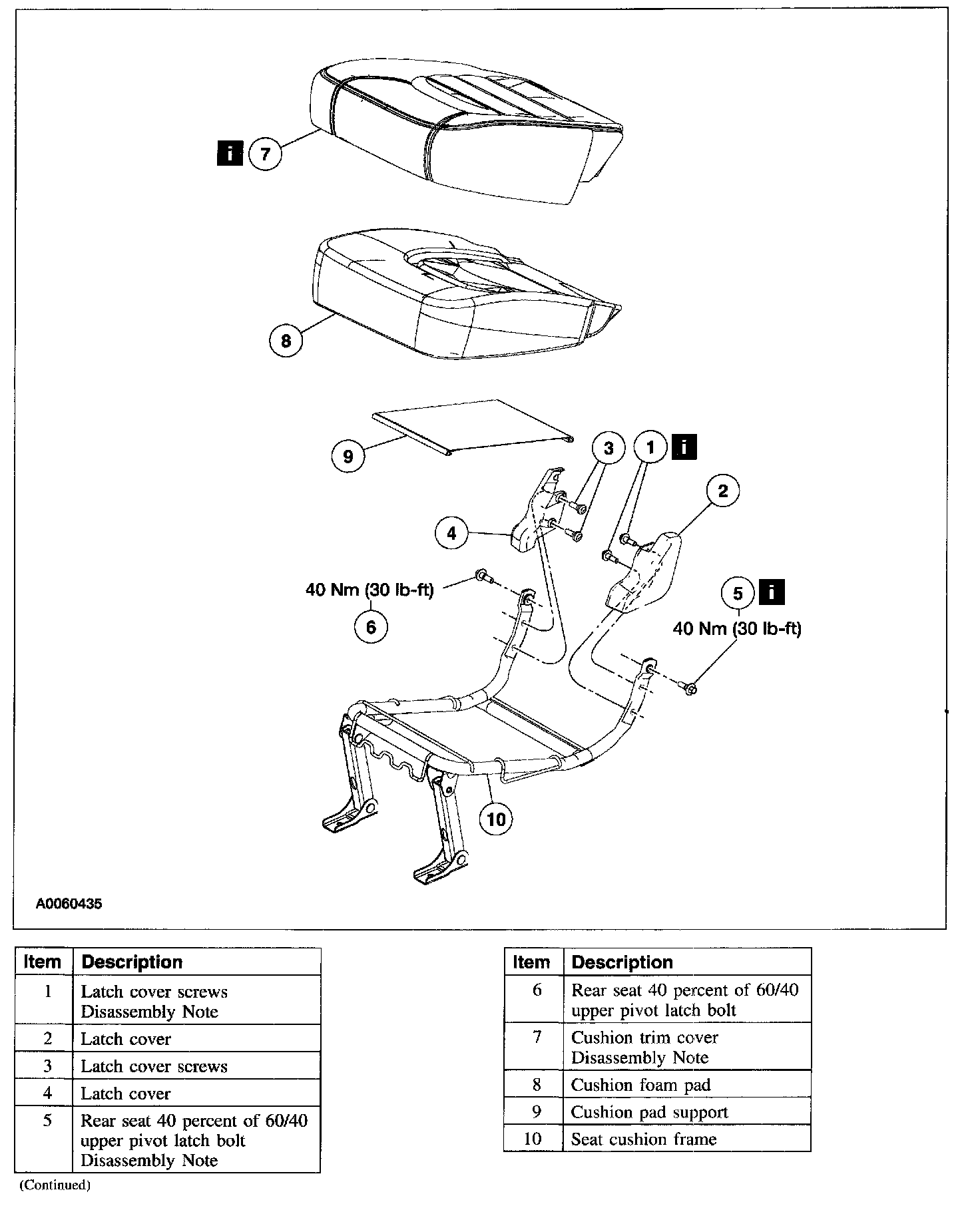

2. Disassemble the components in the order listed in the illustration and table. To remove individual components, carry out only the steps.

Item 1: Latch Cover Screws Disassembly Note







1. Release the seat backrest J-clip.







2. Remove all the staples in the backrest support panel.

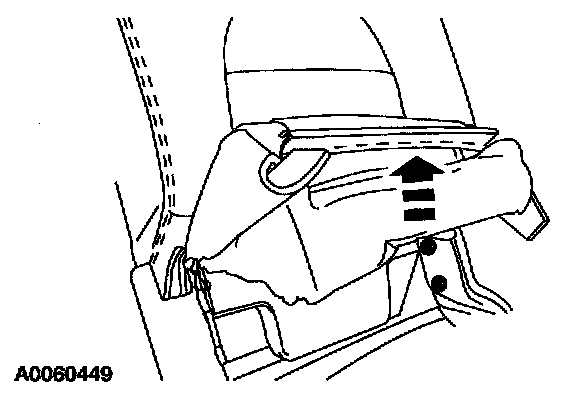

3. Invert the seat backrest trim cover and foam pad to access the latch cover screws.







4. Remove the two screws and the cover (outboard side shown, inboard side similar). Detach the seat backrest material attachment from the latch cover.

Item 5: Rear Seat 40 Percent of 60/40 Upper Pivot Latch Bolt Disassembly Note

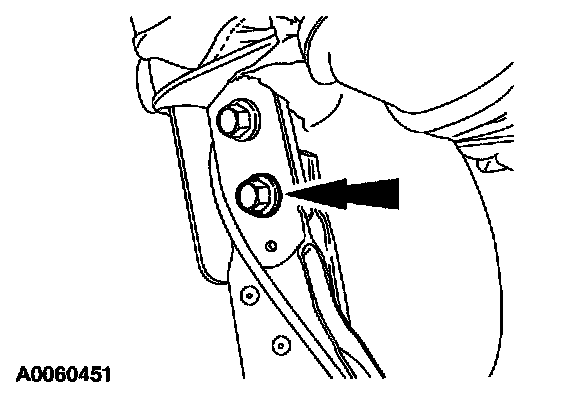

1. Remove the backrest pivot bolt (inboard side shown, outboard side similar).

Item 7: Cushion Trim Cover Disassembly Note

1. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.

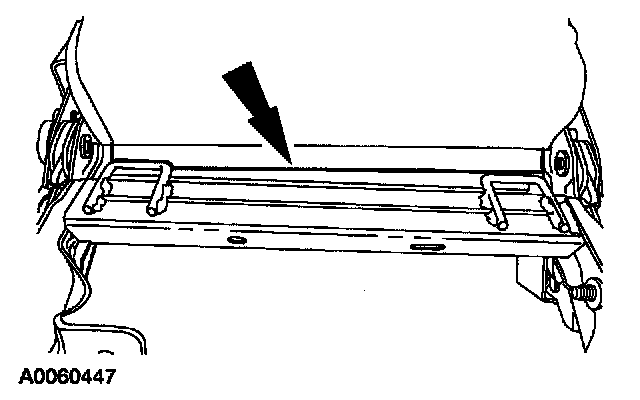

Separate the hook and loop fasteners.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
