Explorer AWD V6-4.0L VIN K Flex Fuel
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR)

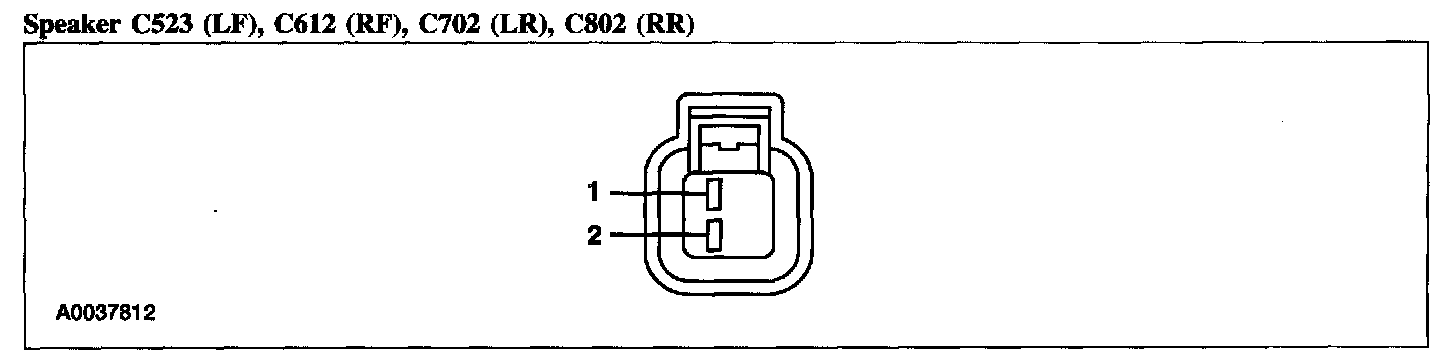

Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR)

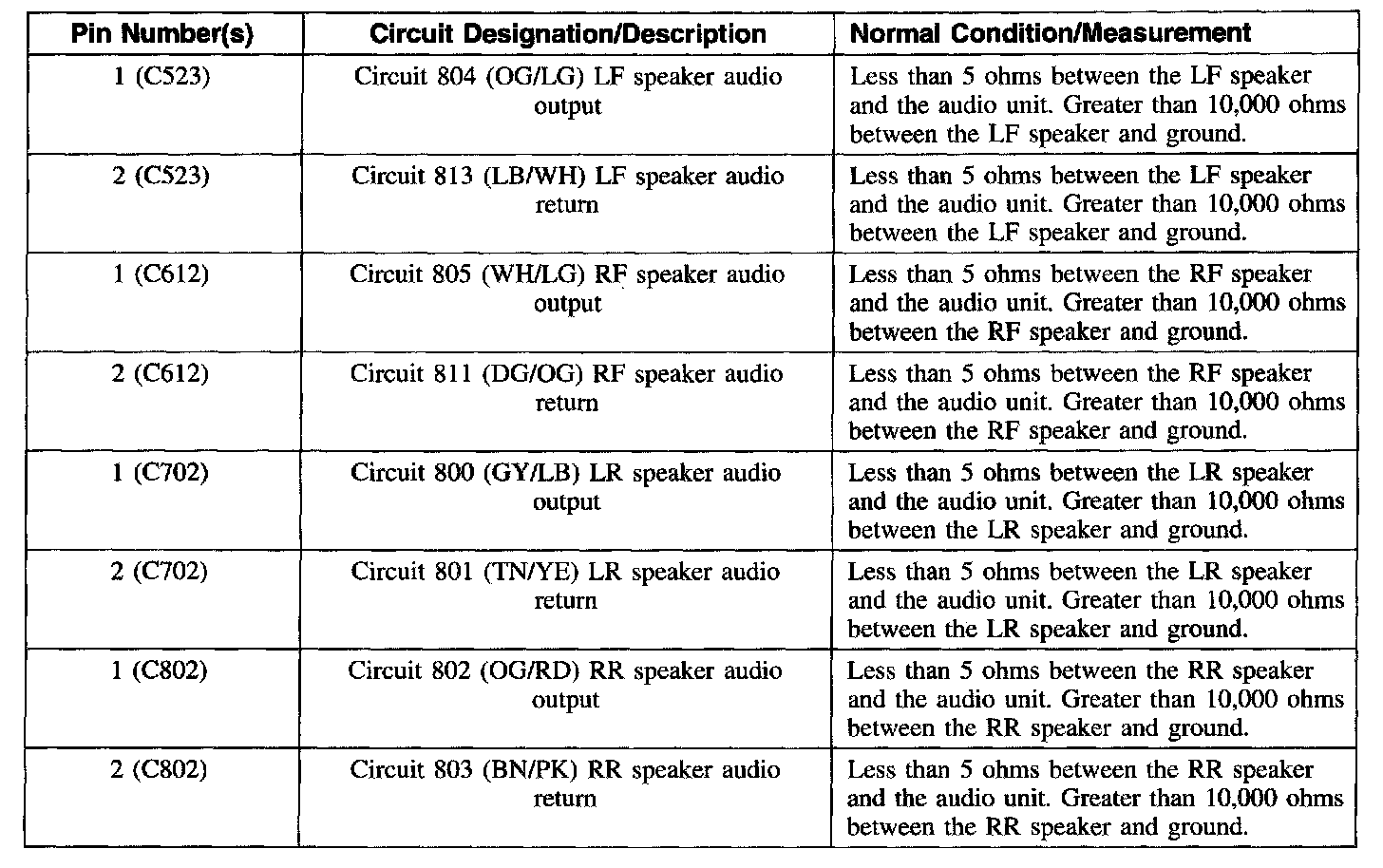

Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR), Part 1:
Speaker C523 (LF), C612 (RF), C702 (LR), C802 (RR), Part 2:
