Audio Unit

AUDIO UNIT

REMOVAL
1. Disconnect the battery.

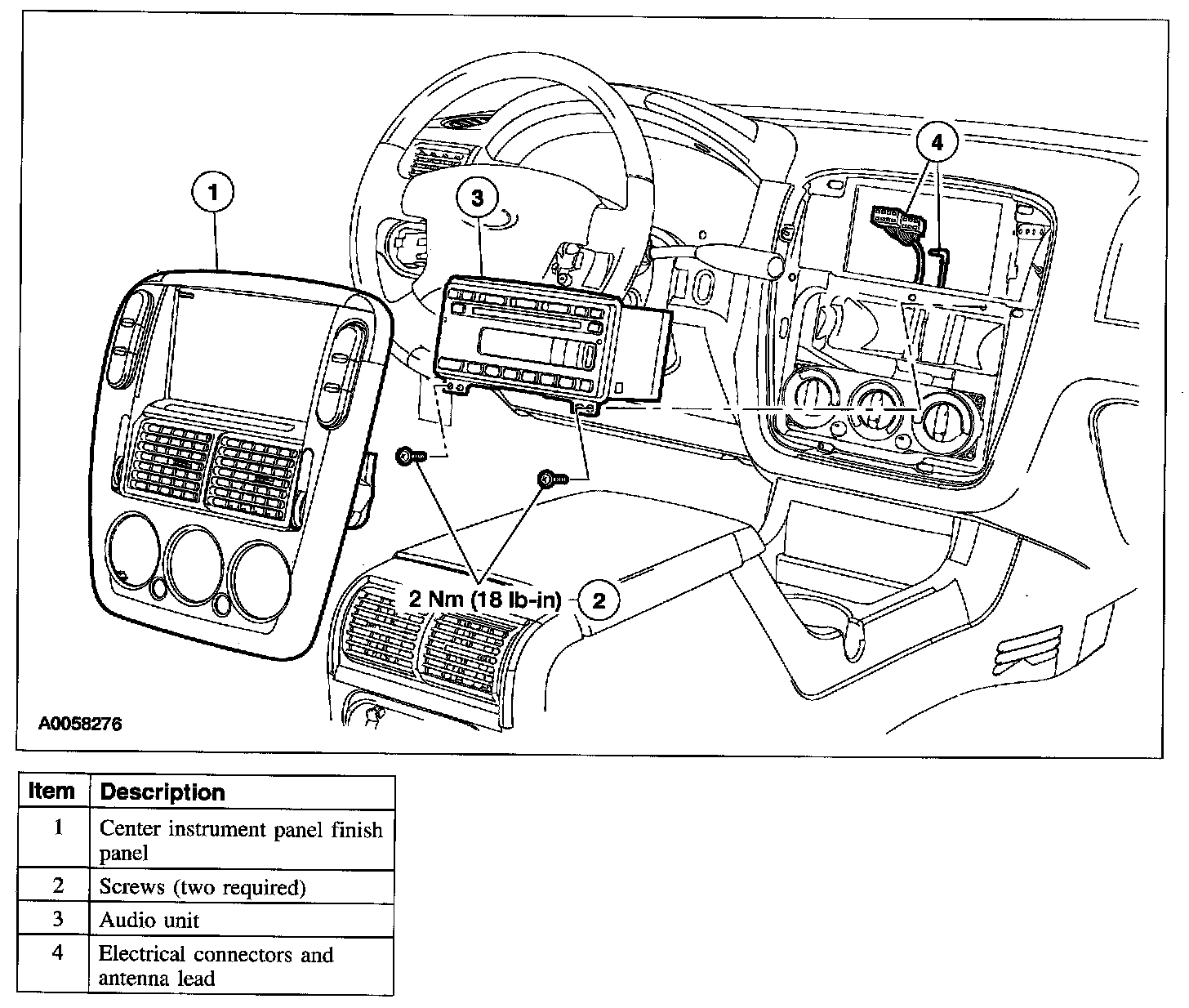

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
