Alarm System Transponder: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER

REMOVAL

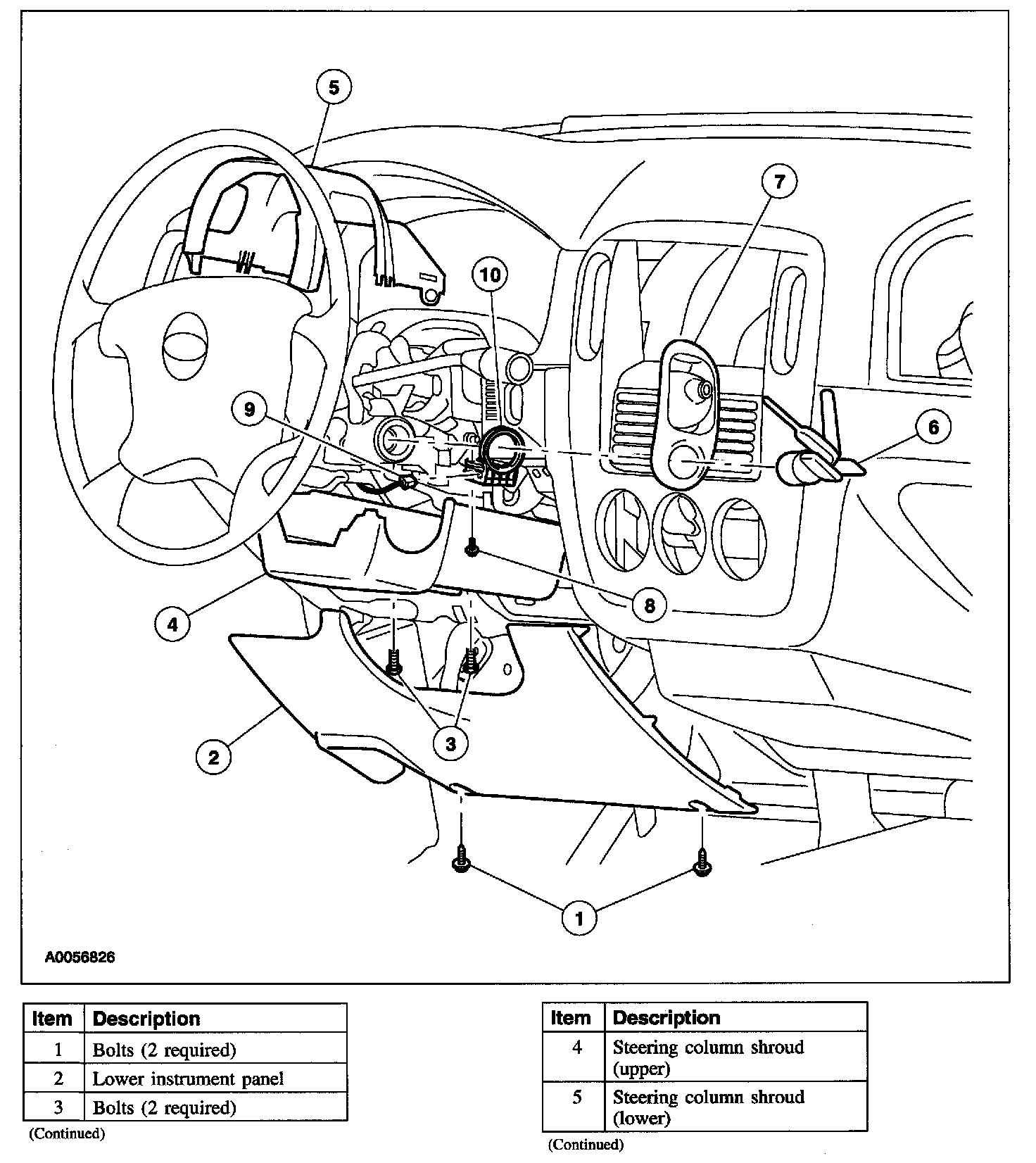

Part 1:

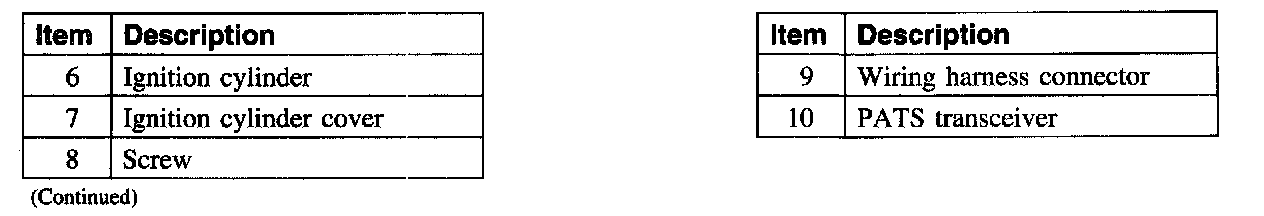

Part 2:

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. Install in the reverse order of removal.
