Rear Door Window Regulator: Service and Repair

WINDOW GLASS - REAR DOOR

NOTE: RH side is shown. LH side is similar.

REMOVAL
1. Remove the rear door-mounted speaker.

Part 1:

Part 2:

2. Remove the components in the order indicated in the illustration and table.

To remove individual components, only carry out the listed steps.

3. To install, reverse the removal procedure.

Item 4: Rear Door Glass-To-Regulator Bolts Removal Note

CAUTION: Make sure the hole in the glass bracket do not become enlarged during the rivet removal process. If the hole become enlarged, the new rivets may become loose, resulting in a clicking noise concern.

NOTE: Some vehicles may use rivets to attach the glass to the regulator.

NOTE: Use a 4.5 mm (0.1772 in) drill bit to drill out the glass-to-regulator rivets.






1. Lower the rear door window glass as necessary to access the bolts or rivets.






2. If removing the rear door glass regulator assembly and motor, secure the rear door glass in the full up position with tape.

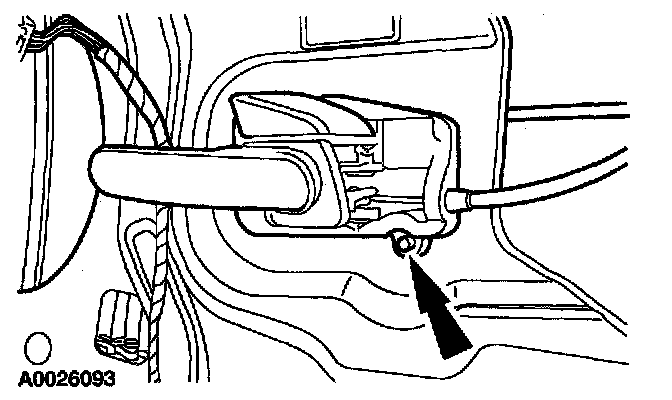

3. If removing the rear door glass regulator assembly and motor, remove the inside door handle but do not disconnect the latch cable.
1 Remove the screw.
2 Disengage the inside door handle from the door.

Item 5: Rear Door Window Glass Removal Note






1. Remove the applique on the rear door.
- Remove the screws.






2. Pull the glass out through the top inboard side of the door.

Item 10: Window Regulator Motor Removal Note.






1. Before removing the window regulator motor, secure the glass in the full up position with tape.

Item 12: Rear Door Window Glass Top Run Removal Note

1. Remove the glass top run through the top opening of rear door.

INSTALLATION
1. To install, reverse the removal procedure.
