Front Door Window Regulator: Service and Repair
WINDOW GLASS - FRONT DOORREMOVAL
1. Remove the front door speaker.
Part 1:
Part 2:

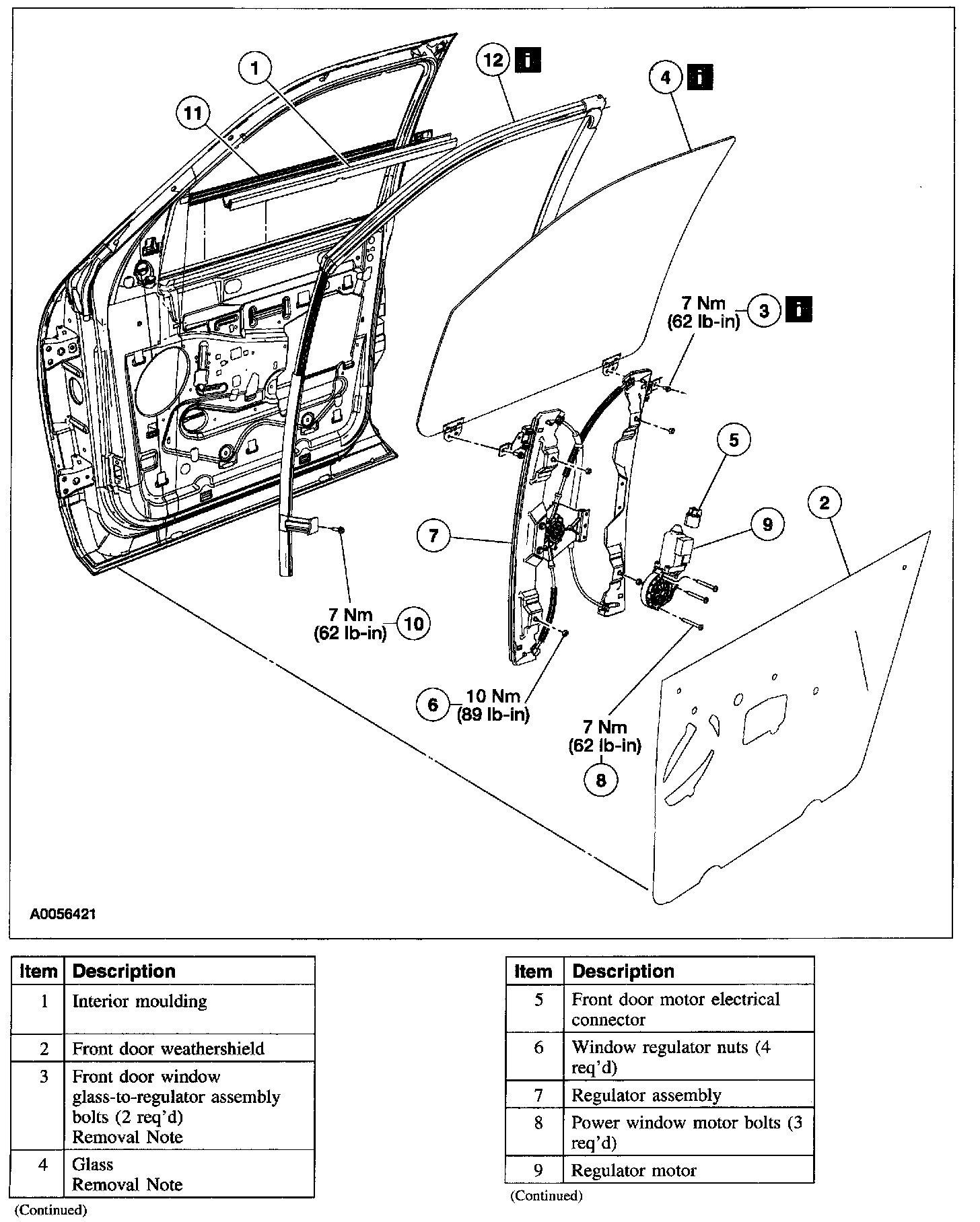

2. Remove the components in the order indicated in the illustration and table.

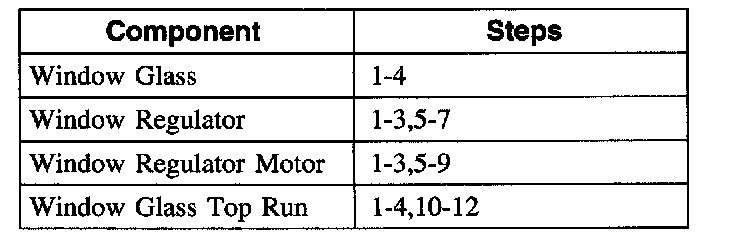

To remove individual components, only carry out the listed steps.
3. To install, reverse the removal procedure.
Item 2: Front Door Weatherstrip Removal Note.

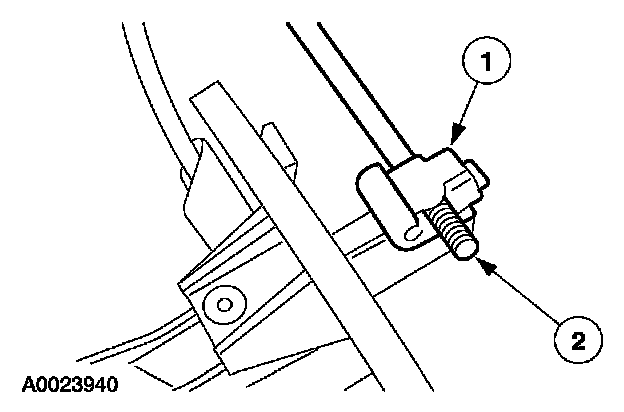

1. Disconnect the lock rod at the handle assembly.
Item 3: Front Door Window Glass-to-Regulator Bolts Removal Note
CAUTION: Make sure the holes in the glass bracket do not become enlarged during the rivet removal process. If the holes become enlarged, the new rivets may become loose, resulting in a clicking noise concern.
NOTE: Some vehicles may use rivets to attach the window.
NOTE: Use a 4.5 mm (0.1772 in) drill bit to drill out the glass-to-regulator rivets.
1. Lower the front door window glass as necessary to access bolts.

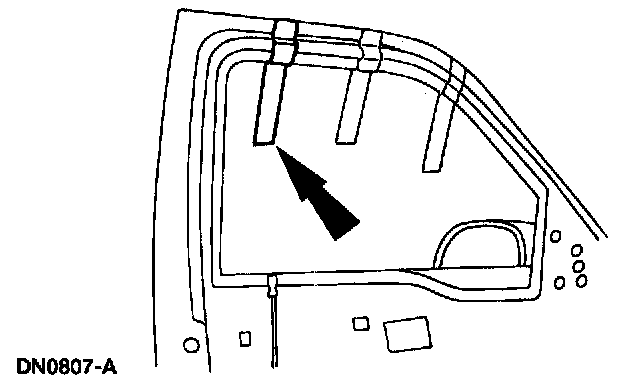

2. If removing the front door regulator assembly and motor, secure the front door glass in the full up position with tape.
Item 4: Front Door Window Glass Removal Note

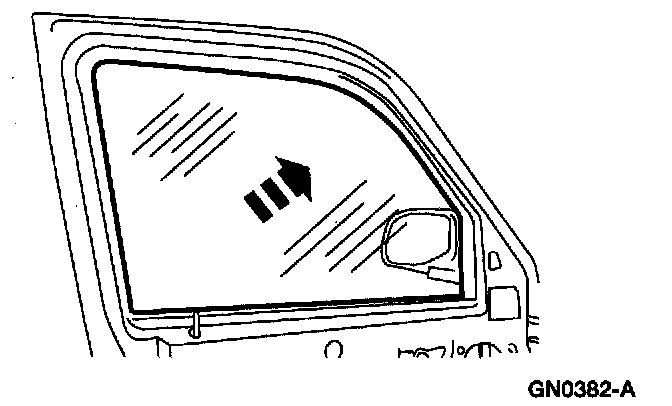

1. Pull glass out through the top inboard side of the door.

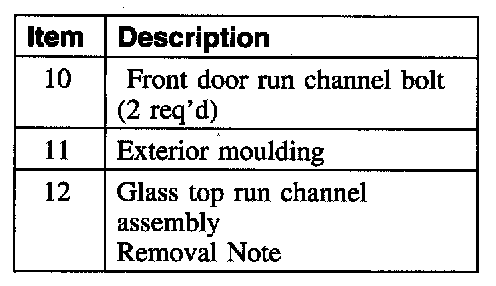

Item 12: Glass Top Run Channel Assembly Removal Note
1. Remove the top glass run channel thorough the top opening of the front door.
INSTALLATION
1. To install, reverse the removal procedure.
