Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Passenger Front Window Control Switch C604

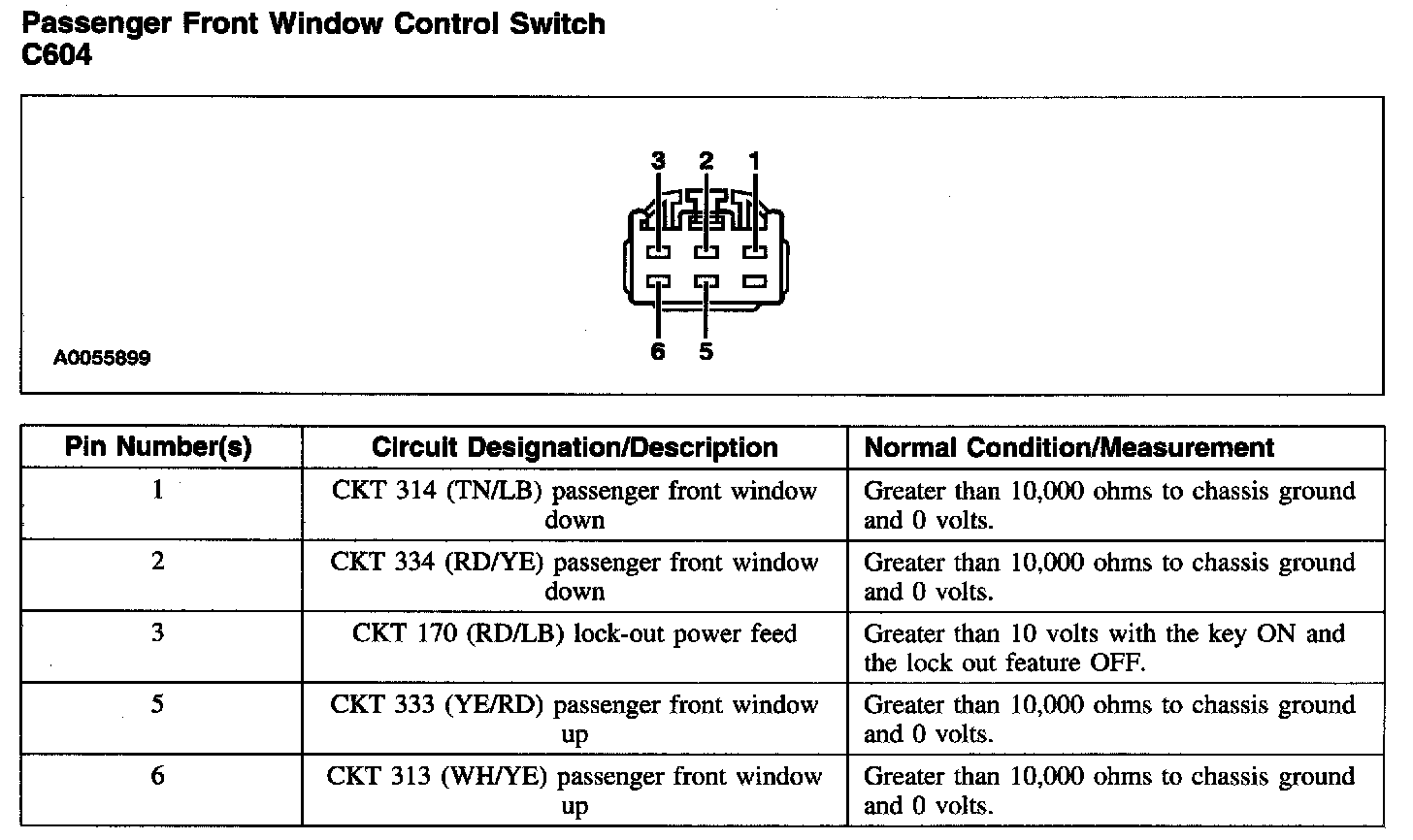

Passenger Front Window Control Switch C604

Passenger Front Window Control Switch C604:
