Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Driver Rear Power Window Motor C703

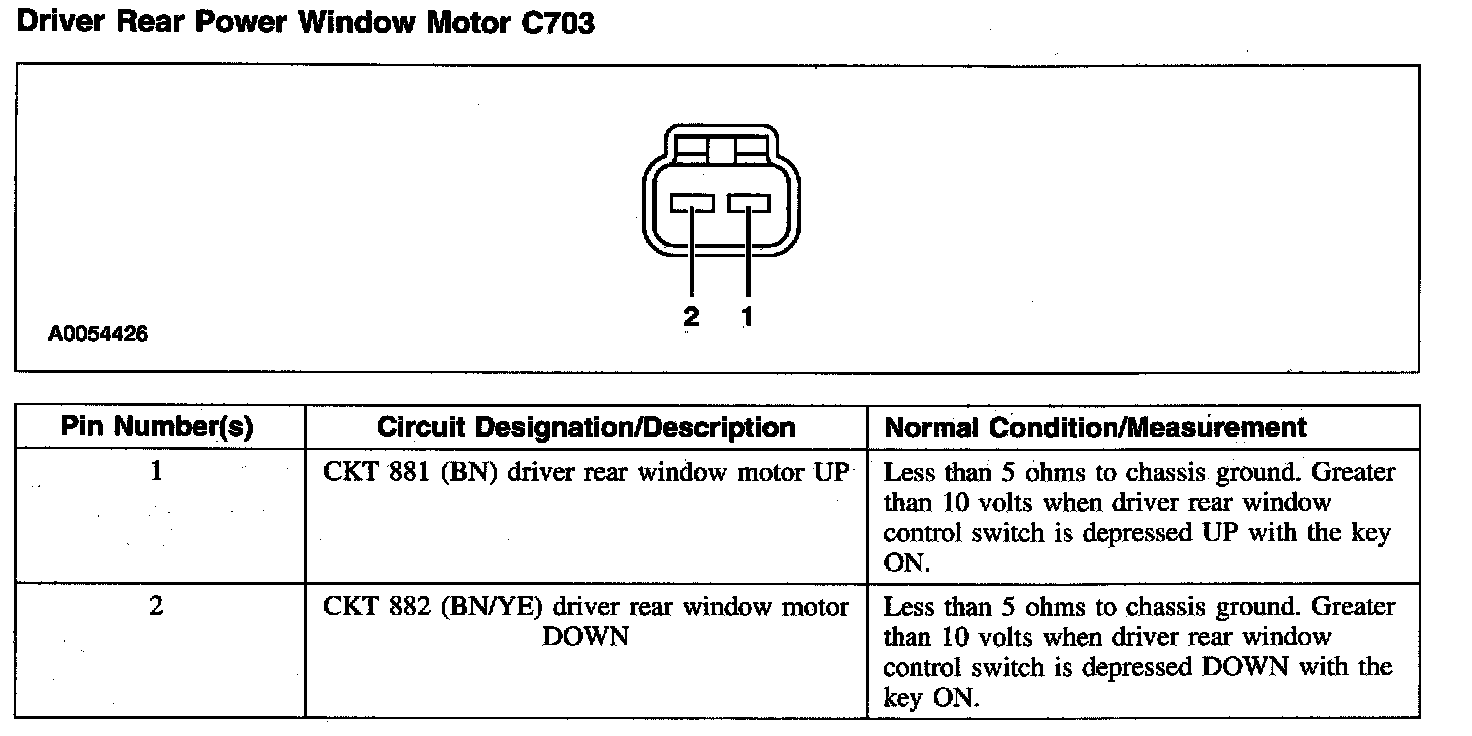

Driver Rear Power Window Motor C703

Driver Rear Power Window Motor C703:
