Transmission Temperature Sensor/Switch: Locations

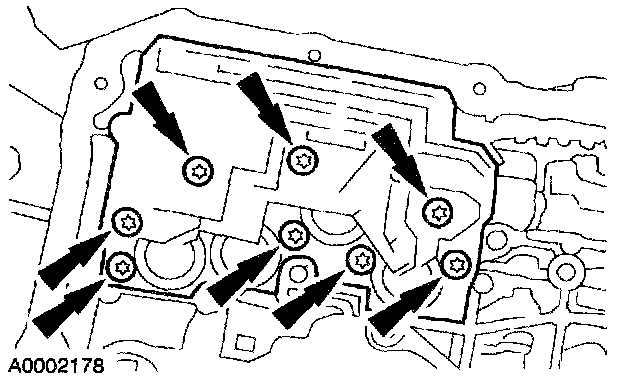

The Transmission Fluid Temperature Sensor is located on the solenoid body.
