Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S Automatic Transmission >> Torque Converter Operation Concerns >> 241: Always Applied/Stalls Vehicle

241: Always Applied/Stalls Vehicle

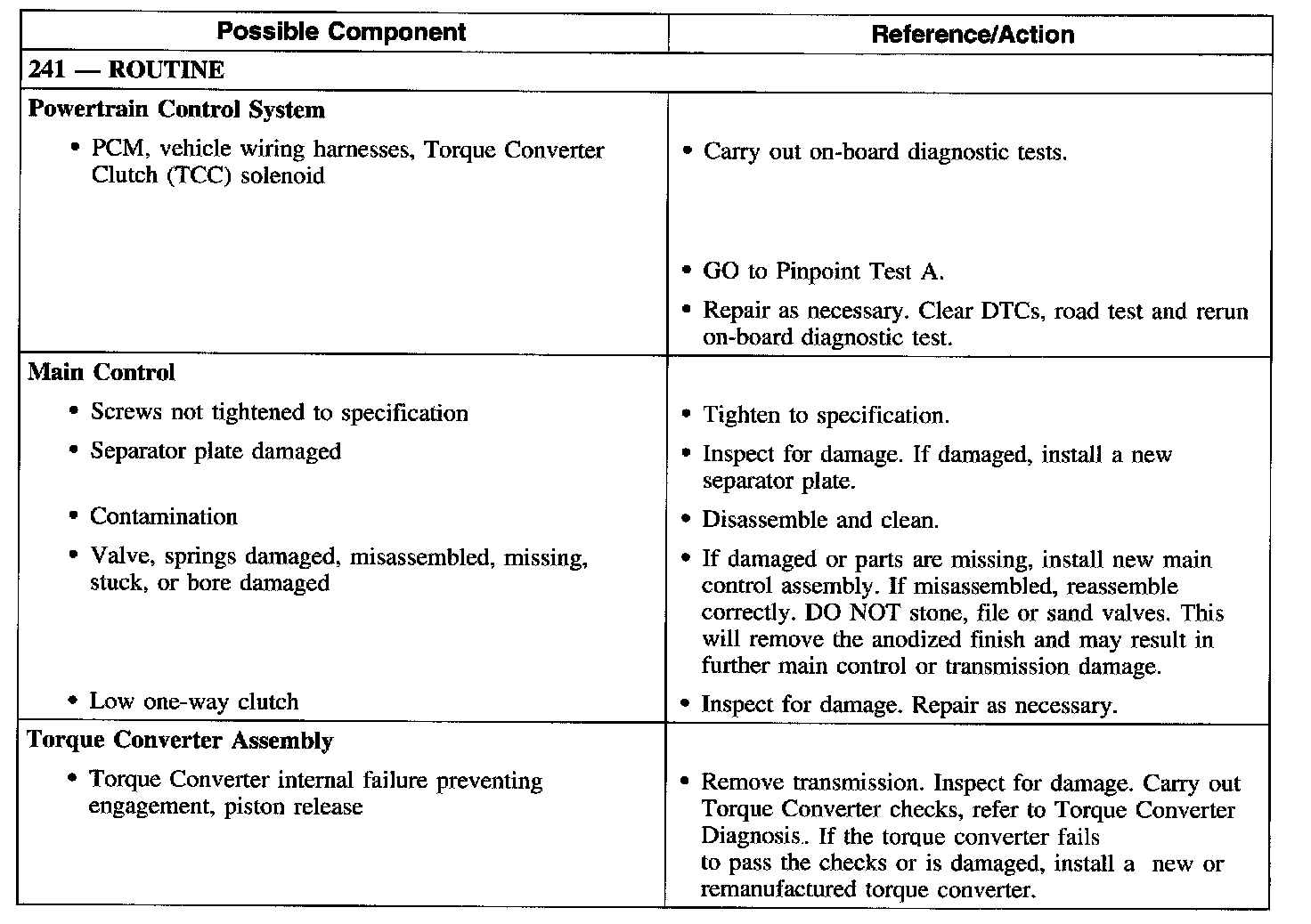

Torque Converter Operation Concern: Always Applied/Stalled Vehicle
