Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S Automatic Transmission >> Shift Concerns >> 220: No 1-2 Shift

220: No 1-2 Shift

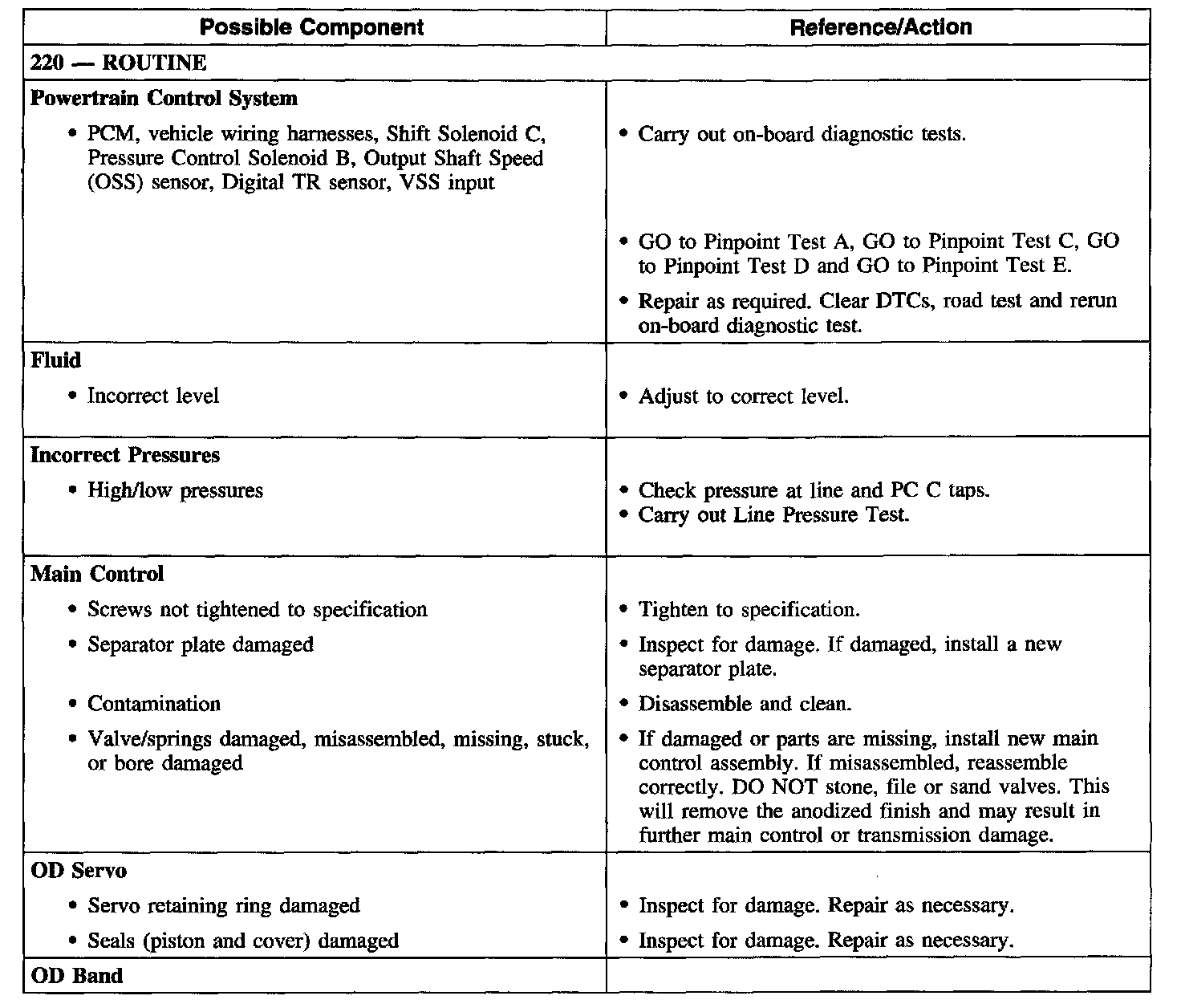

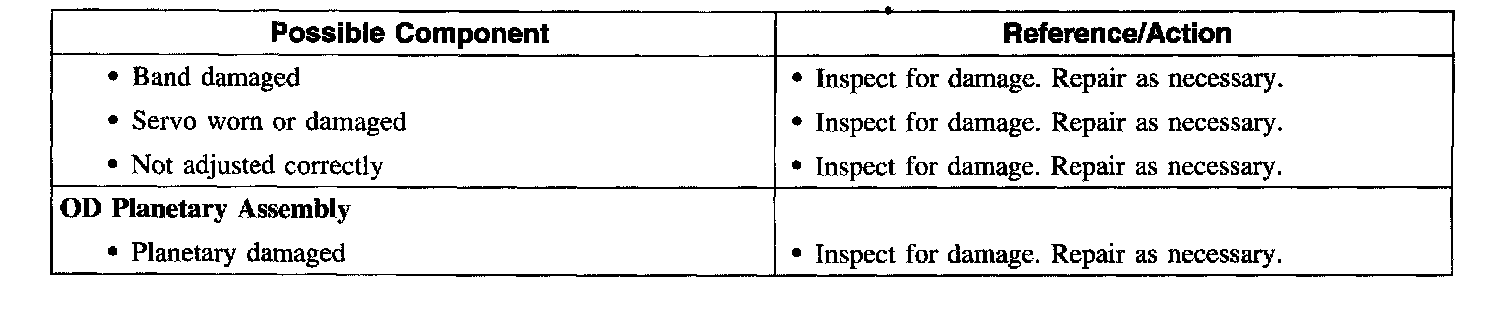

Shift Concern: No 1-2 Shift
