Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S Automatic Transmission >> Shift Concerns >> 211: Timing Concerns - Early/Late (Some/All)

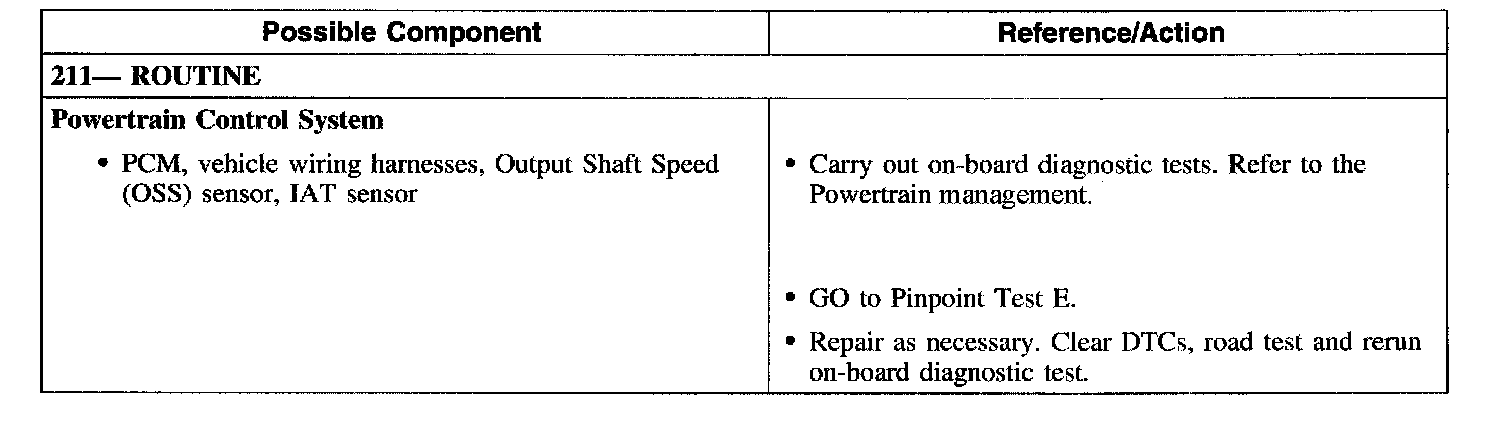

211: Timing Concerns - Early/Late (Some/All)

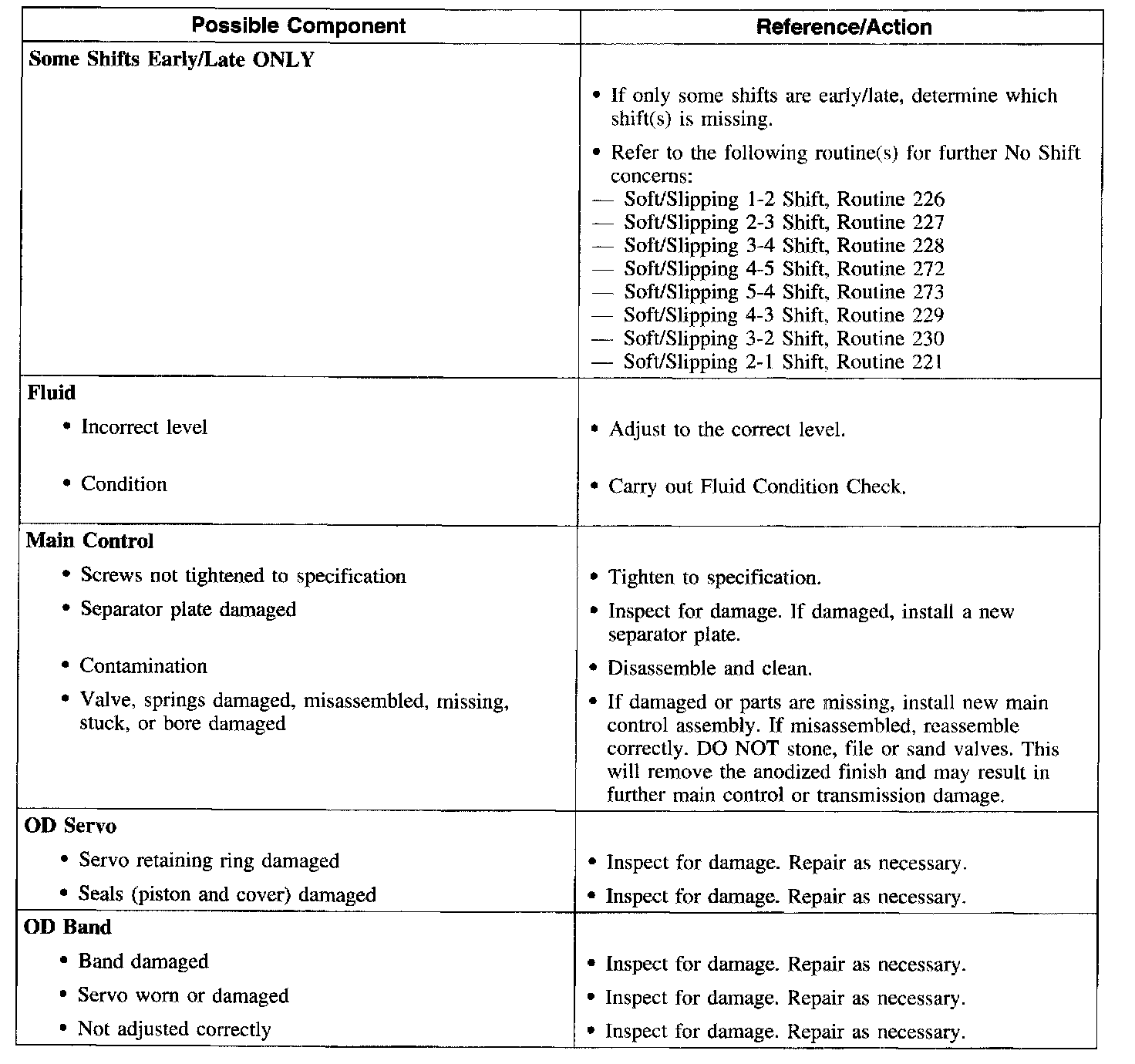

Shift Concern: Timing Concerns-Early/Late
