Test H: Shift Control is Out of Correct Gear Relationship

Pinpoint Test H: Shift Control is Out of Correct Gear Relationship
Normal Operation
When placing the range selector lever in a selected gear (P, R, N, D, or (D) ) the transmission will be in the correct gear for what was selected.

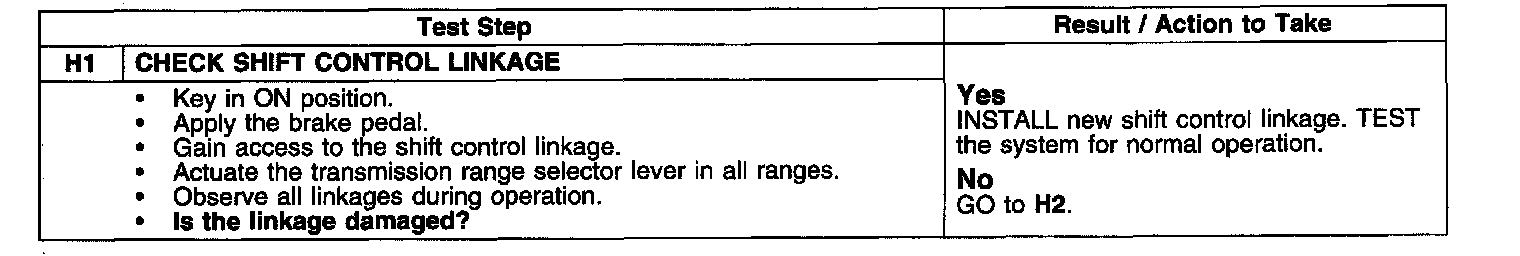

Test H1:

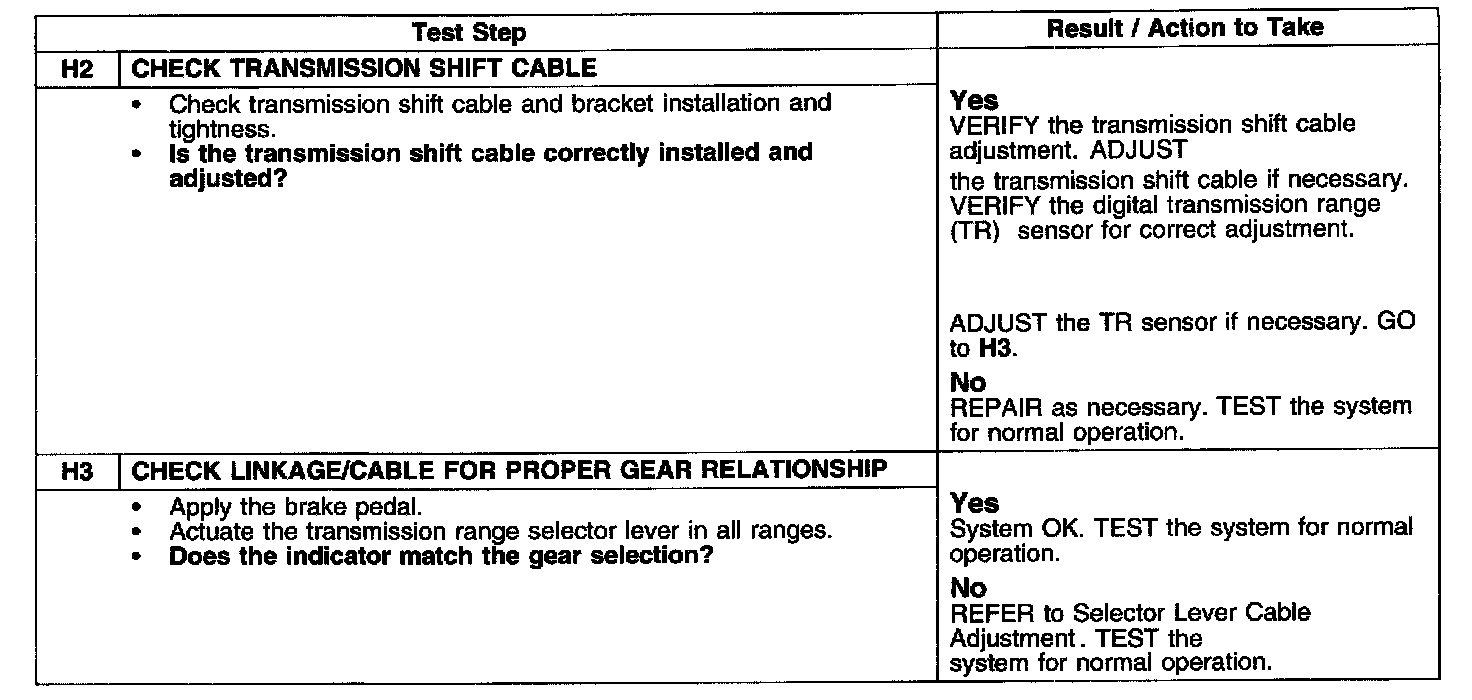

Test H2 - H3:

Possible Causes
When placing the range selector lever in a selected gear (P, R, N, D, or (D) ) and the transmission is not in the corresponding gear for what was selected, the cause could be:
- Shift linkage out of adjustment
- Worn or broken shift cable
- Wirier terminals or connectors
