Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Passive Anti-Theft (PATS) - C2007

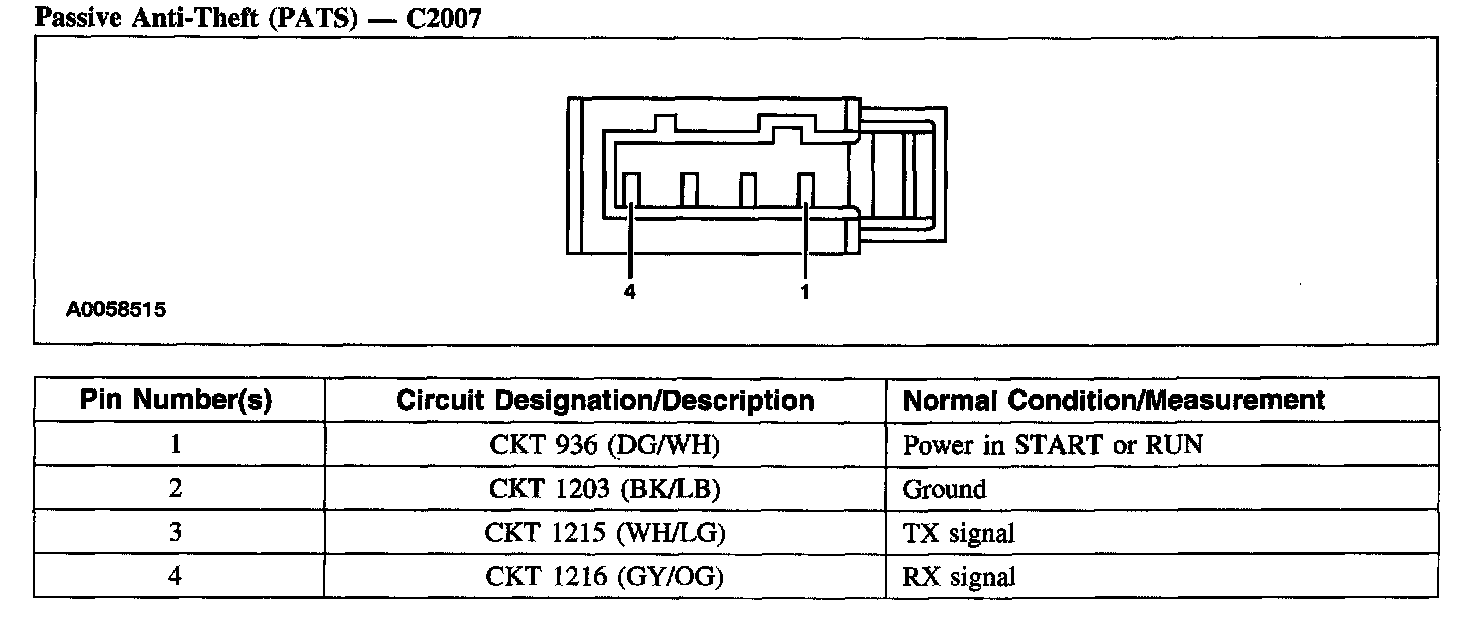

Passive Anti-Theft (PATS) - C2007

Passive Anti-Theft (PATS) - C2007:
