Test G

PINPOINT TEST G: THE GENERATOR IS NOISY

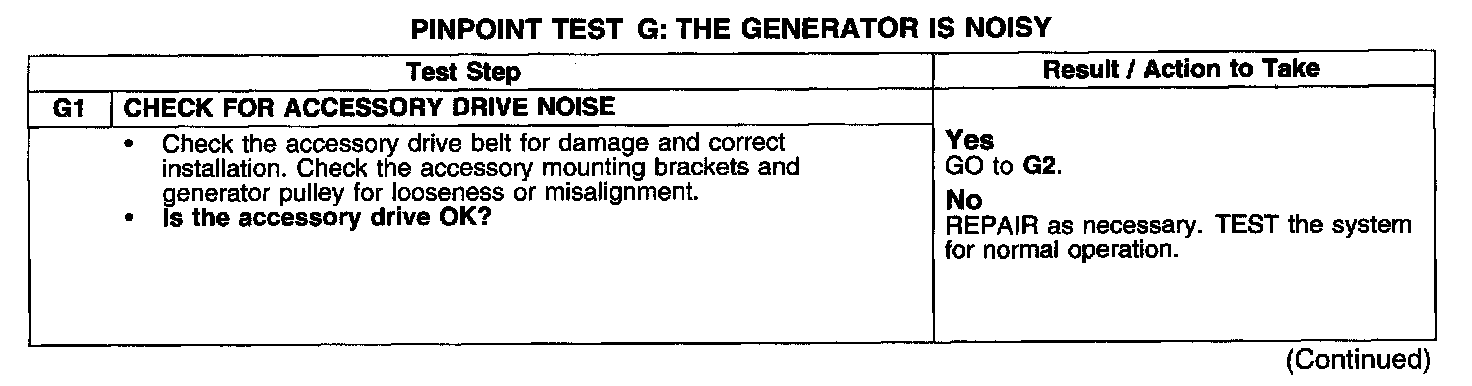

Test G1:

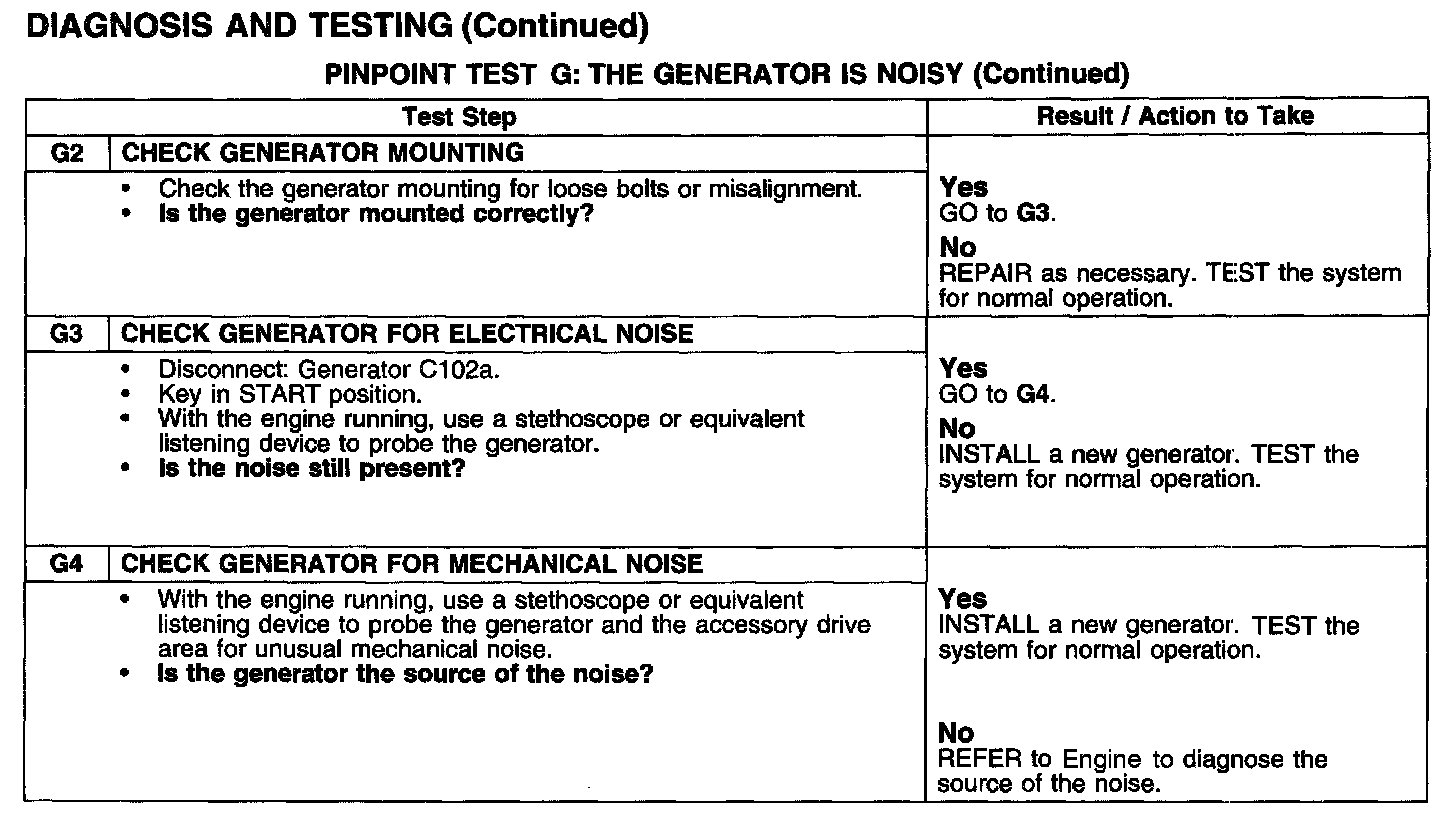

Test G2-G4:

Normal Operation
The generator is belt-driven by the engine accessory drive system.

Possible Causes
- accessory drive belt
- generator mounting
- generator
