Alternator: Service and Repair
GENERATOR - 4.OL SOHCREMOVAL
1. Disconnect the battery.

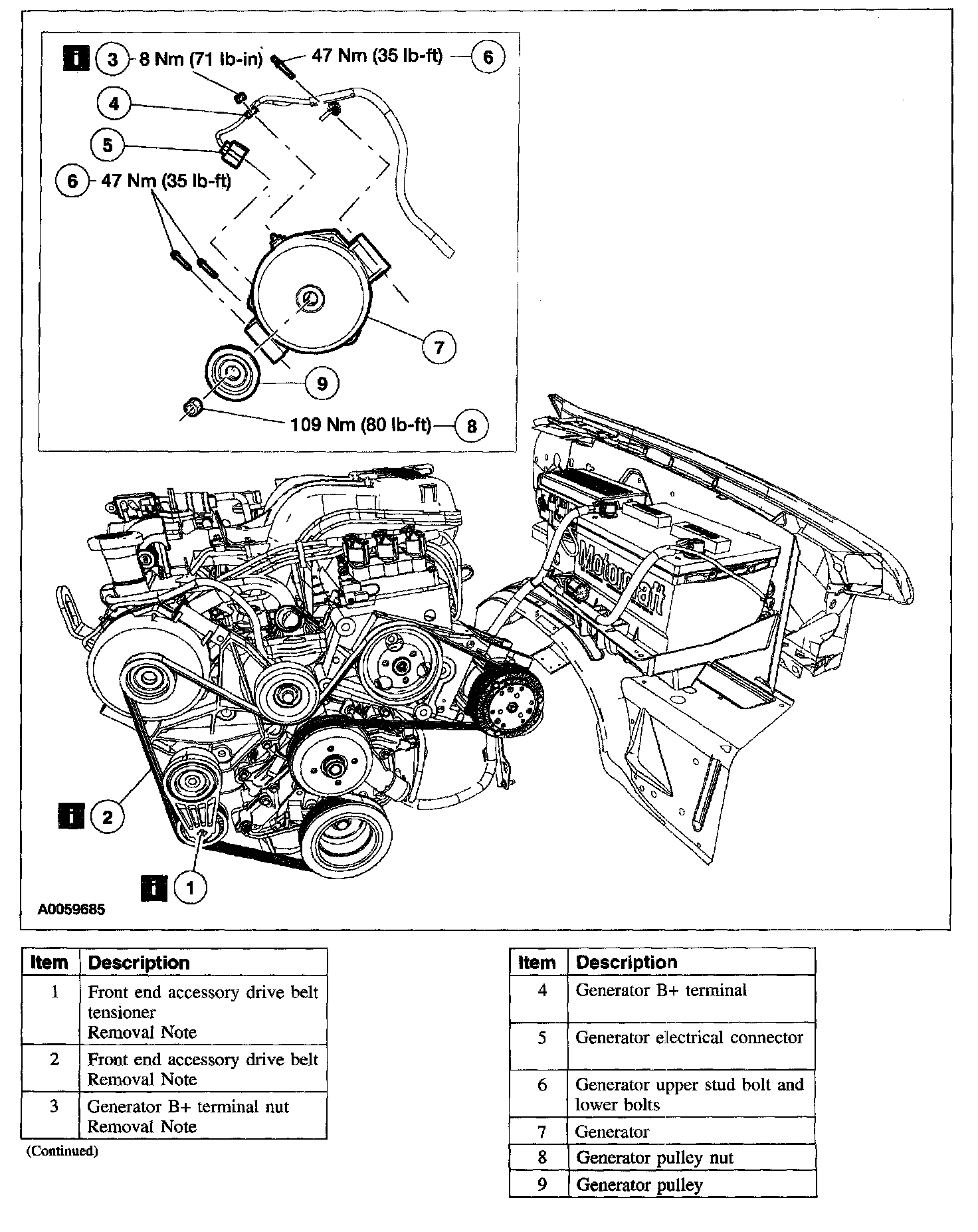

2. Remove the components in the order indicated in the illustration and table.
Item 1: Front End Accessory Drive Belt Tensioner Removal Note
1. Rotate the front end accessory drive belt tensioner counter-clockwise to loosen tension on the front end accessory drive belt.
Item 2: Front End Accessory Drive Belt Removal Note
1. Position the front end accessory drive belt aside.
Item 3: Generator B+ Terminal Nut Removal Note
1. Position the generator B+ terminal protective cover aside.
INSTALLATION
1. To install, reverse the removal procedure.
