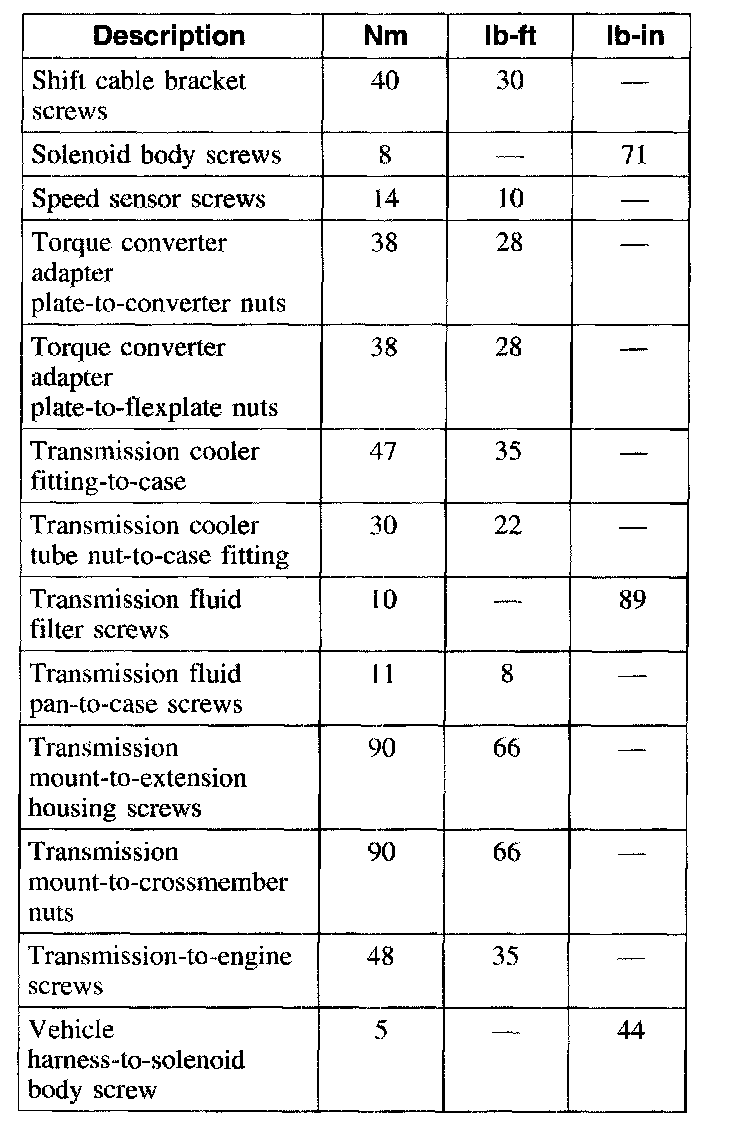

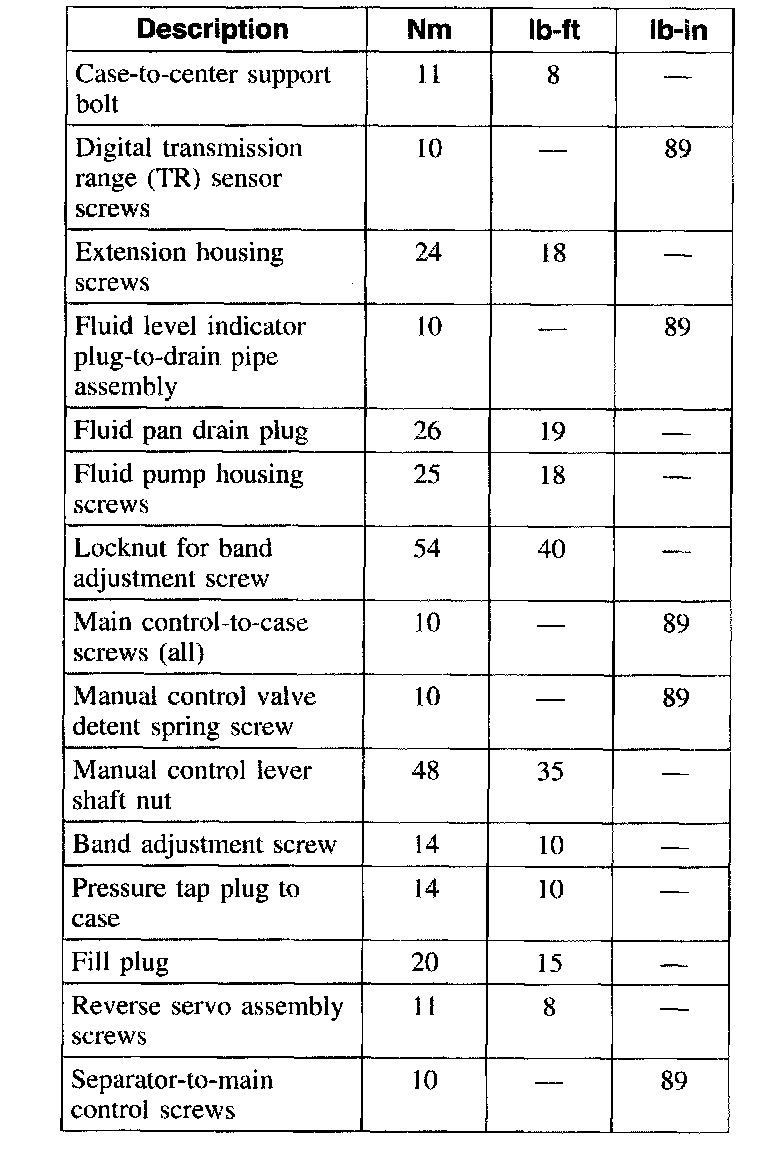

Torque Specifications

Torque Specifications









NOTE: Tighten the transmission fluid pan screws in a crisscross sequence.
