Seat Sensor/Switch: Service and Repair

SEAT POSITION SENSOR

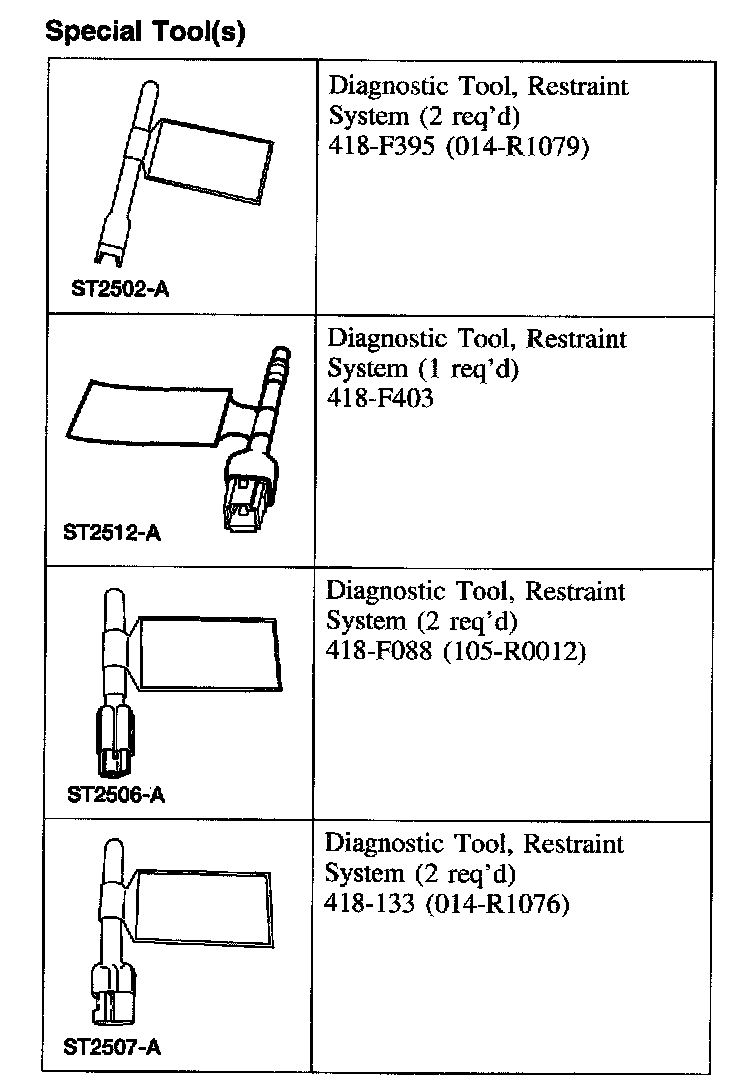

Special Tool(s):

SPECIAL TOOL(S)

REMOVAL

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.

NOTE:
- Restraint system diagnostic tools MUST be installed under the seats in the seat side air bag (if equipped) and safety belt pretensioner (if equipped) to floor connectors.
- After diagnosing or repairing an SRS, the restraint system diagnostic tools must be removed before operating the vehicle over the road.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. NOTE: The seat position sensor is mounted at the LH rear of the seat track.

Position the driver seat forward enough so that upon removal the sensor can clear the magnetic bar and bracket.

2. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

The side impact sensors (if equipped) are located at or near the base of the B-pillars and C-pillars.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable and wait at least one minute.

3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Deactivate the supplement restraint system (SRS).

4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.

Remove the driver seat.

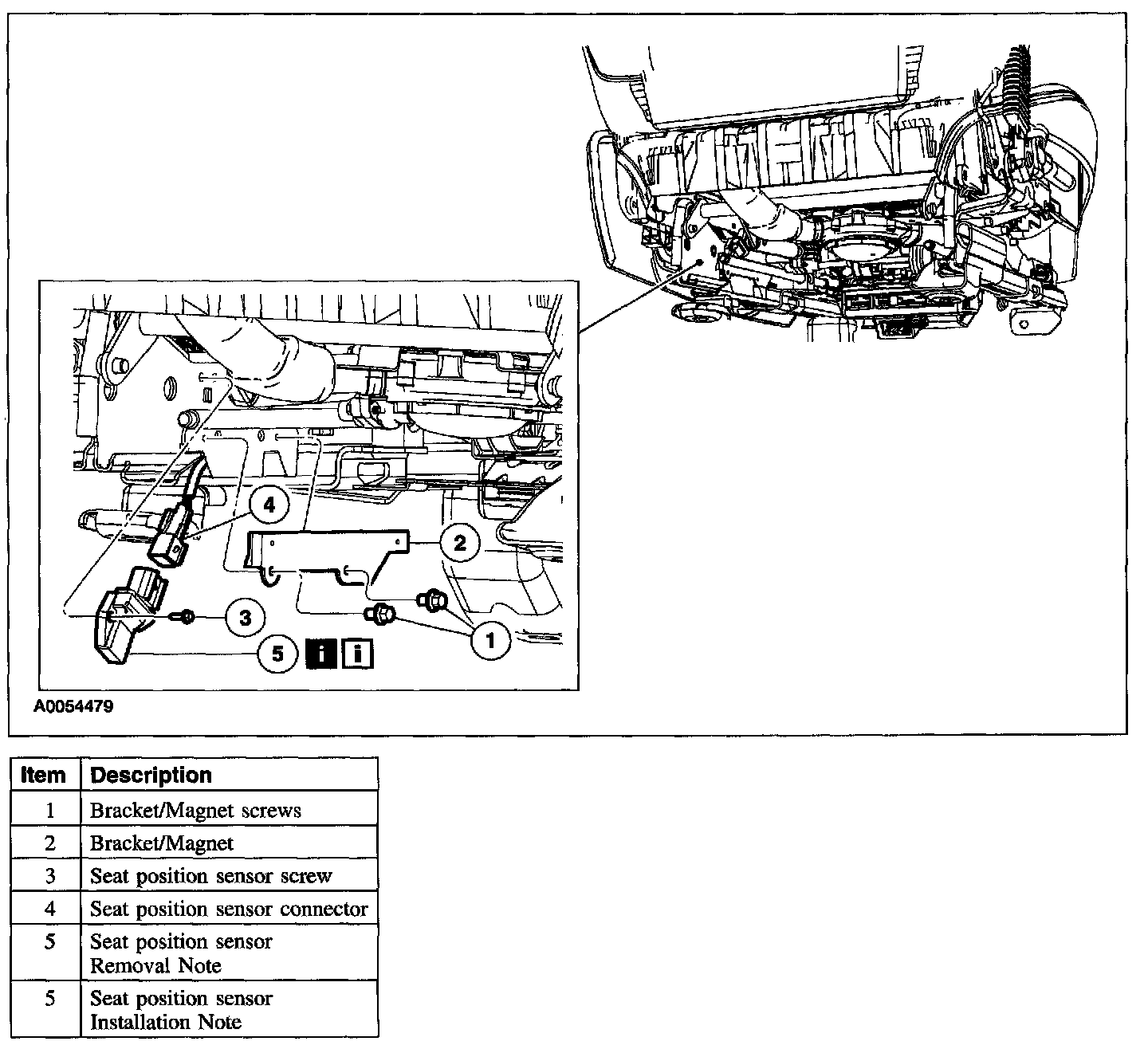

5. Remove the components in the order indicated in the illustration and table.

Item 5: Seat Position Sensor Removal Note

1. NOTE: Make note of the wire harness routing for installation purposes.

Disconnect the seat position sensor electrical connector.

INSTALLATION

1. NOTE: Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.

To install, reverse the removal procedure

2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.

Install the driver seat.
- After installation, position the driver seat from its forward most position to its rearmost position and then back again. While positioning the seat, make sure that the seat position sensor, the magnet and bracket and the wire harness do not come in contact with any other part of the seat that may cause damage.

3. Connect the battery ground cable.

4. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With the restraint system diagnostic tools installed at all deployable devices, prove out the supplemental restraint system (SRS). Prove Out Procedure

5. Disconnect the battery ground cable and wait at least one minute.

6. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Reactivate the supplemental restraint system (SRS).

7. Connect the battery ground cable.

8. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Prove Out Procedure

Item 5: Seat Position Sensor Installation Note

1. NOTE: Route the wire harness as noted during removal.

Connect the seat position sensor electrical connector.
