Speed Control Deactivator Switch-With Stability Assist

SPEED CONTROL DEACTIVATOR SWITCH - WITH STABILITY ASSIST

REMOVAL

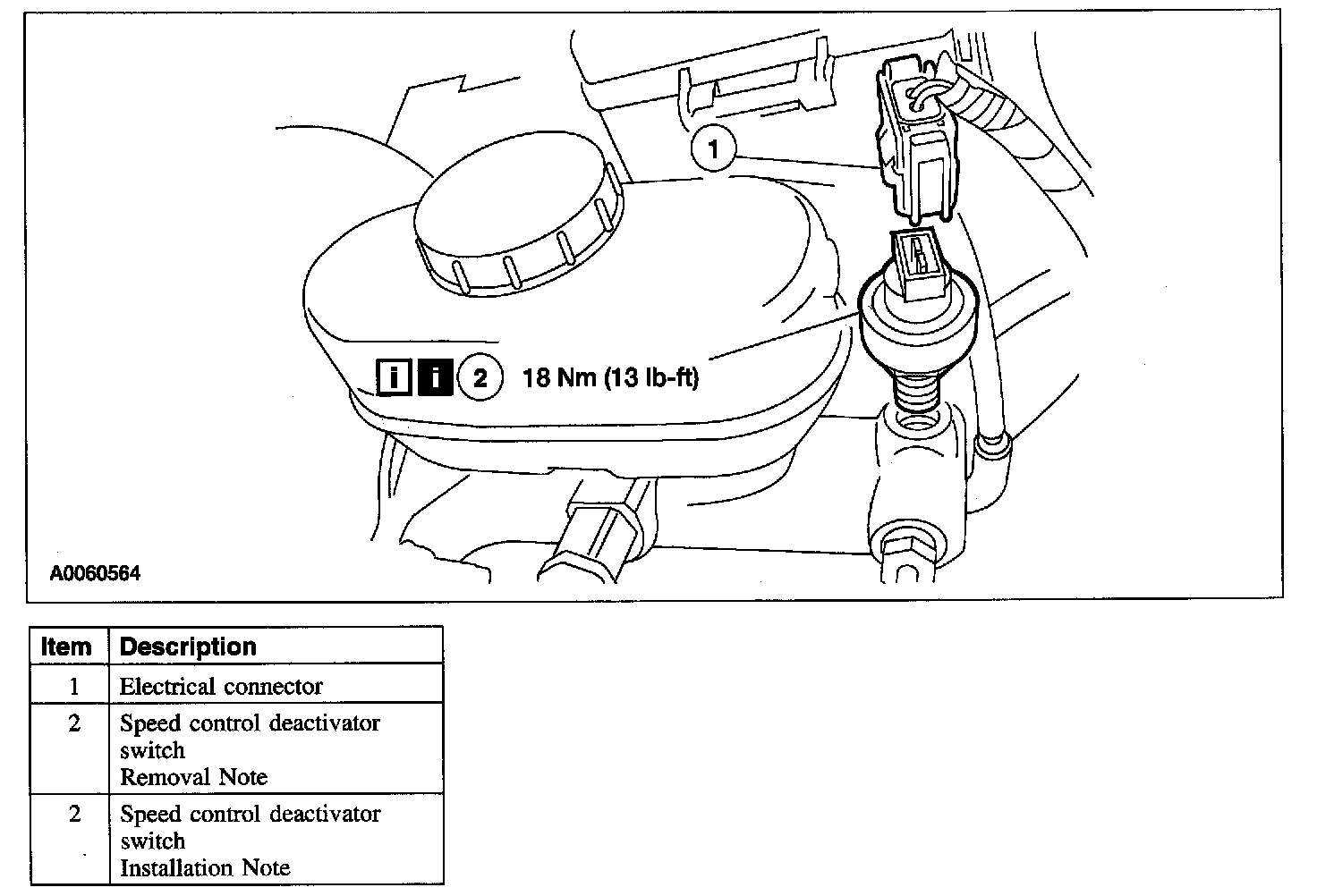

1. Remove the components in the order indicated in the illustration and table.

Item 2: Speed Control Deactivator Switch Removal Note

1. WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

INSTALLATION
1. To install, reverse the removal procedure.

Item 2: Speed Control Deactivator Switch Installation Note
1. After the deactivator switch is installed, it is necessary to bleed the brake system.
