Sunroof / Moonroof Switch: Service and Repair

ROOF OPENING PANEL CONTROL SWITCH

REMOVAL

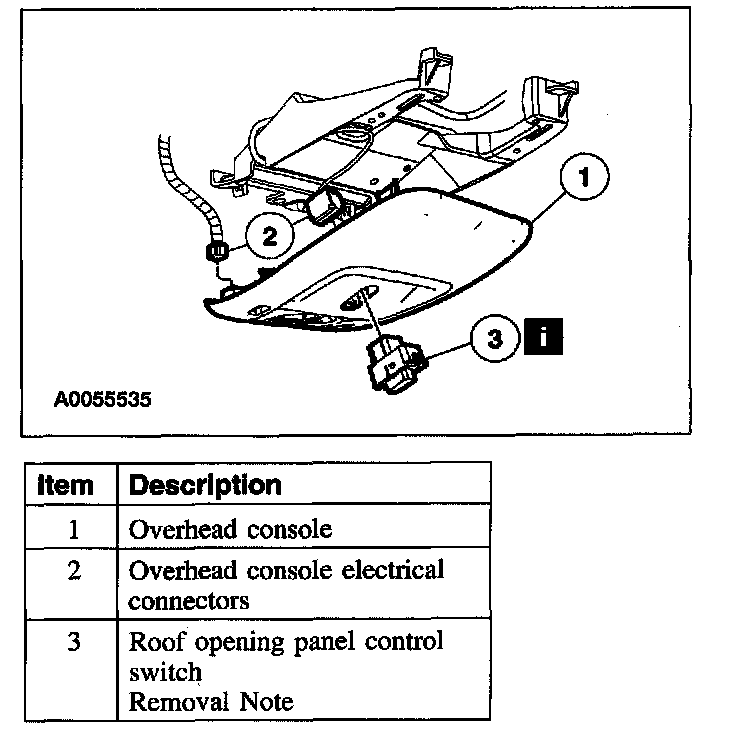

1. Remove the components in the order indicated in the illustration and table.

Item 3: Roof Opening Panel Control Switch Removal Note

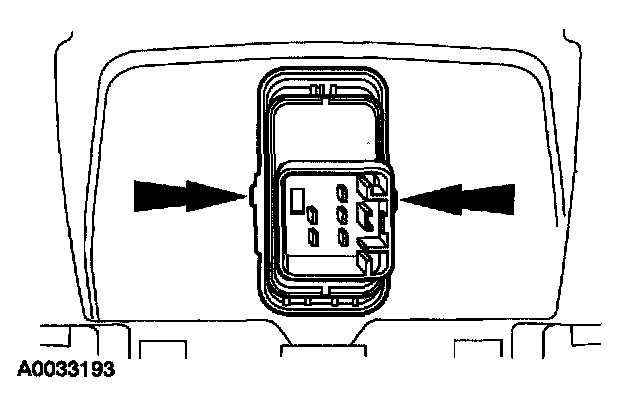

1. Disengage the clips and remove the switch from the overhead console.

INSTALLATION
1. Install in the reverse order of removal.
