Power Door Lock Switch: Service and Repair

DOOR LOCK CONTROL SWITCH

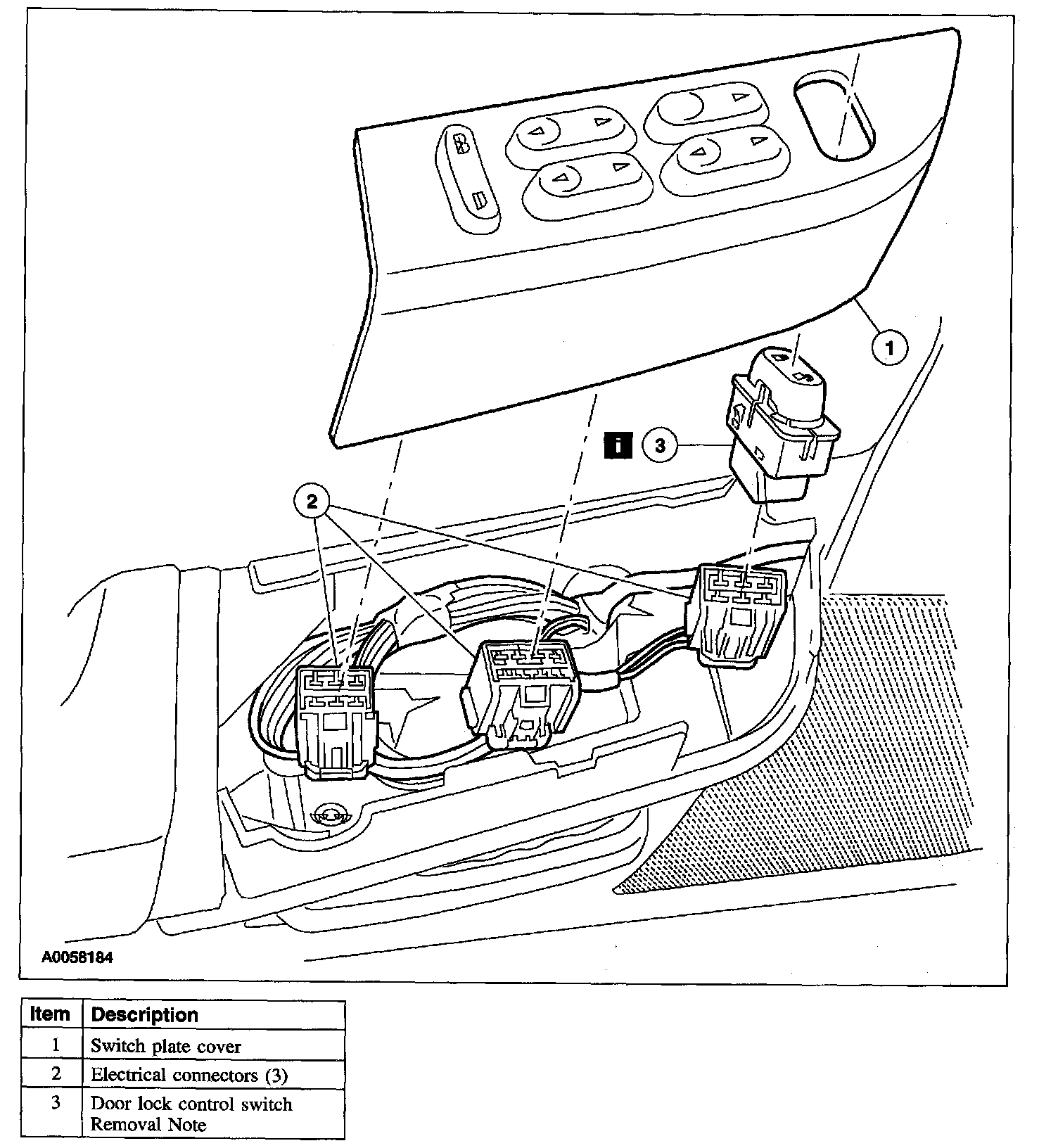

NOTE: LH side shown, RH side similar.

REMOVAL







1. Remove the components in the order indicated in the illustration and table.

Item 3: Door Lock Control Switch Removal Note
1. Release the door lock control switch tabs on the switch plate.

INSTALLATION
1. To install, reverse the removal procedure.
