Air Cleaner Housing: Service and Repair

AIR CLEANER ASSEMBLY

REMOVAL







1. Remove the splash shield.

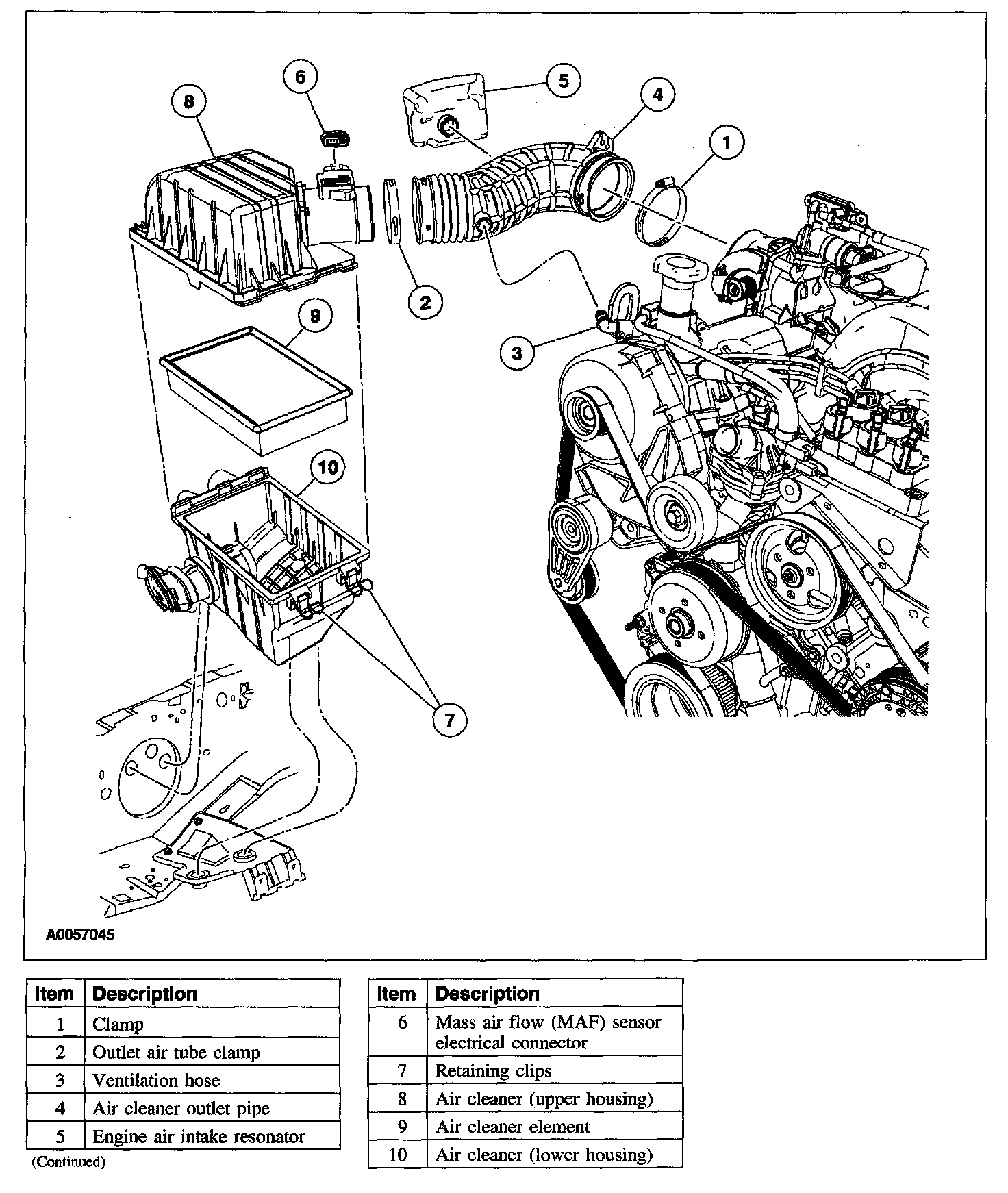

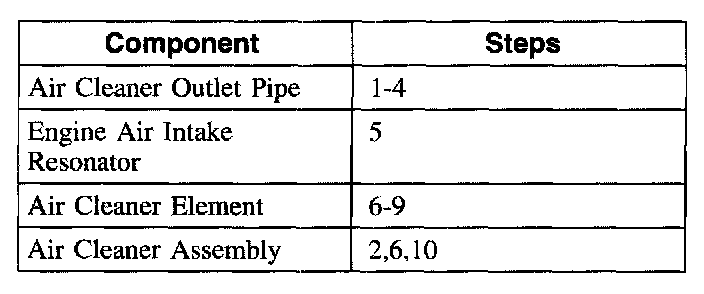

2. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.

INSTALLATION
1. To install, reverse the removal procedure.
