Throttle Body: Service and Repair
THROTTLE BODYWARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.
CAUTION: Throttle body bore and plate area have a special coating and cannot be cleaned, or possible damage to the throttle body may occur.
REMOVAL
1. Remove the air cleaner outlet tube.

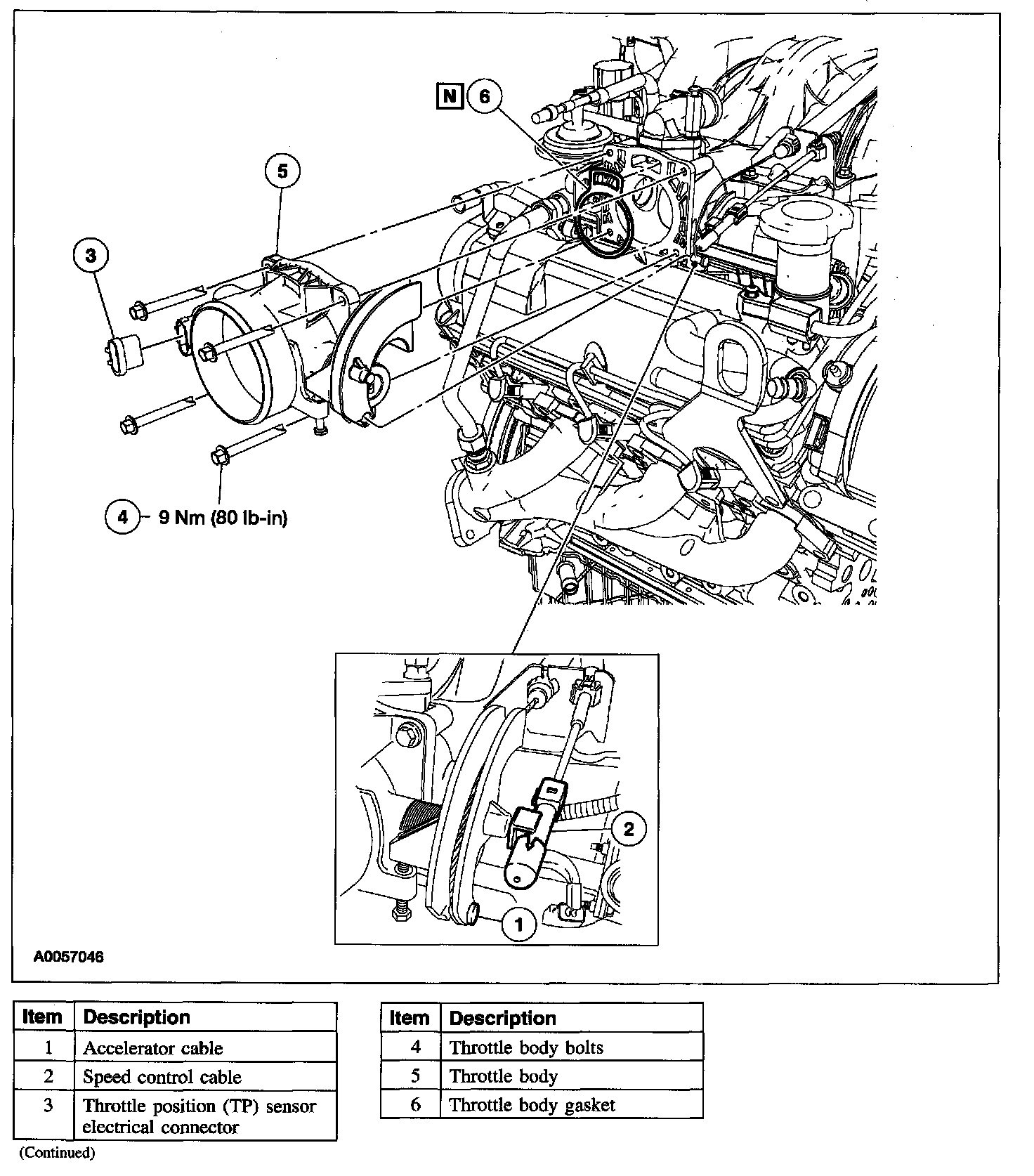

2. Remove the components in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
