Accelerator Pedal and Shaft

ACCELERATOR PEDAL AND SHAFT

REMOVAL

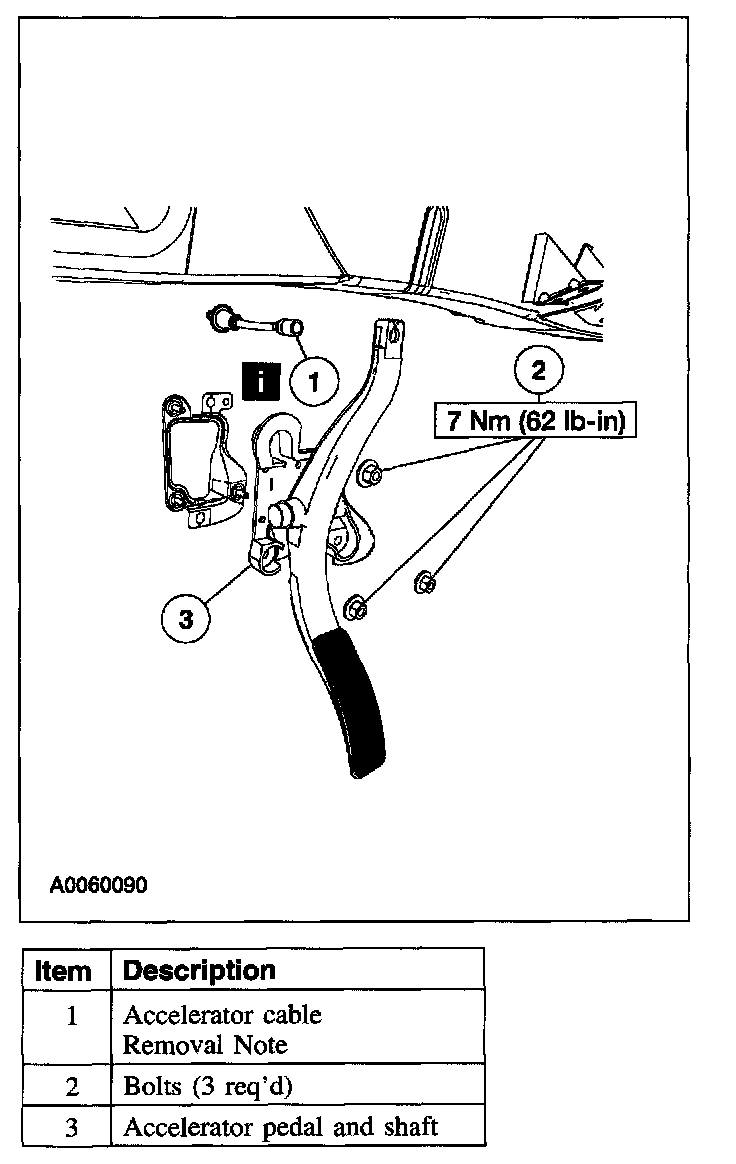

1. Remove the components in the order indicated in the illustration and table.

Item 1: Accelerator Cable Removal Note

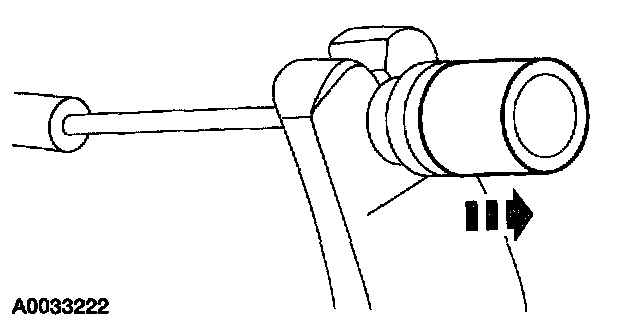

1. Remove the accelerator cable from the rubber plunger.

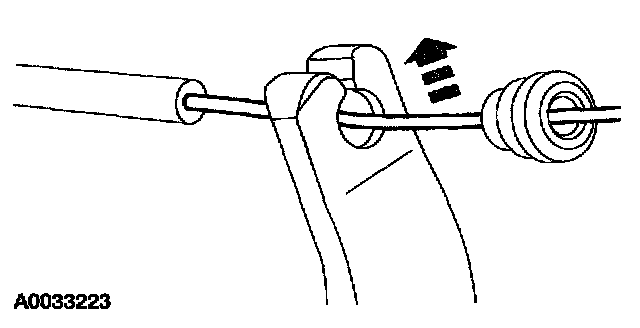

2. Position the rubber plunger rearward and remove the cable from the accelerator pedal.

INSTALLATION
1. To install, reverse the removal procedure.
