Accelerator Cable and Bracket

ACCELERATOR CABLE AND BRACKET - 4.OL SOHC

REMOVAL

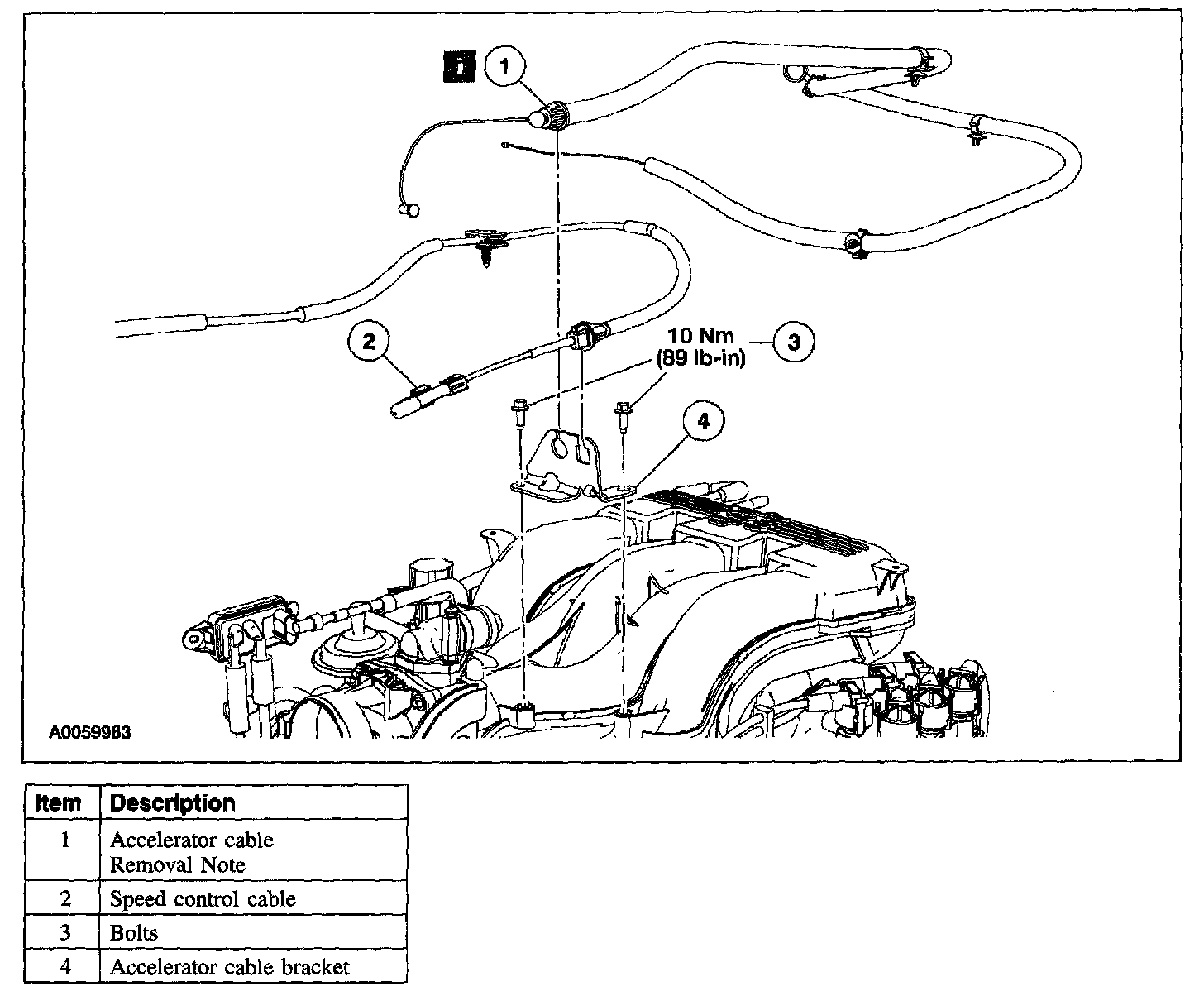

1. Remove the components in the order indicated in the illustration and table.

Item 1: Accelerator Cable Removal Note

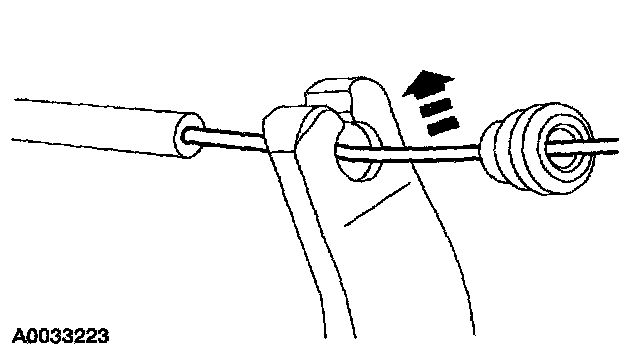

1. Remove the accelerator cable from the rubber plunger.

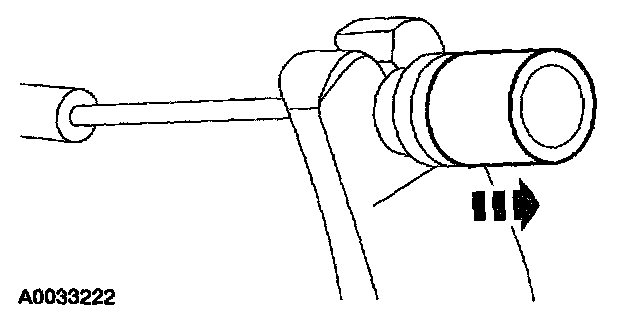

2. Position the rubber plunger rearward and remove the cable from the accelerator pedal.

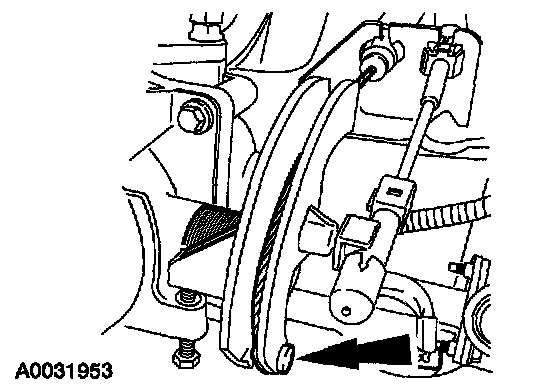

3. Disconnect the accelerator cable from the throttle body.

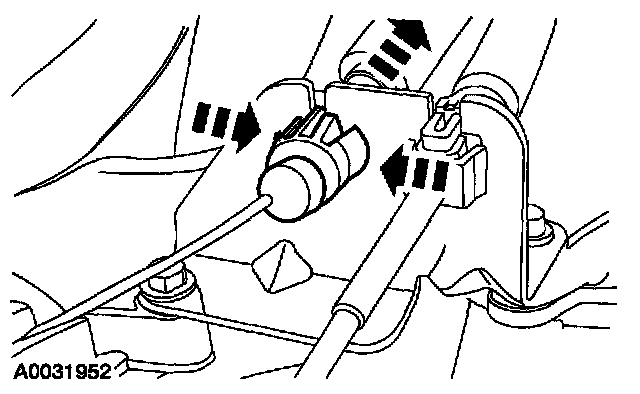

4. Squeeze the tabs and remove the accelerator cable from the bracket.







5. Pull the accelerator cable boot to the unlock position and remove the accelerator cable.

INSTALLATION
1. To install, reverse the removal procedure.
