EGR Valve: Service and Repair

Exhaust Gas Recirculation (EGR) Valve

Removal and Installation
1. With the vehicle in NEUTRAL, position on a hoist.
2. Remove the air cleaner outlet tube.





3. To remove individual components, carry out only the listed steps.

Part 1 Of 2:

Part 2 Of 2:

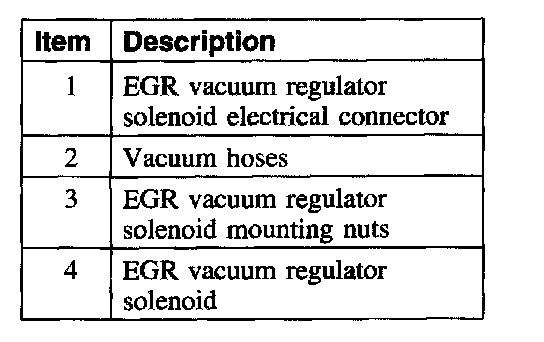

4. Illustration 1 of 2. Remove the components in the order indicated.

Part 1 Of 2:

Part 2 Of 2:

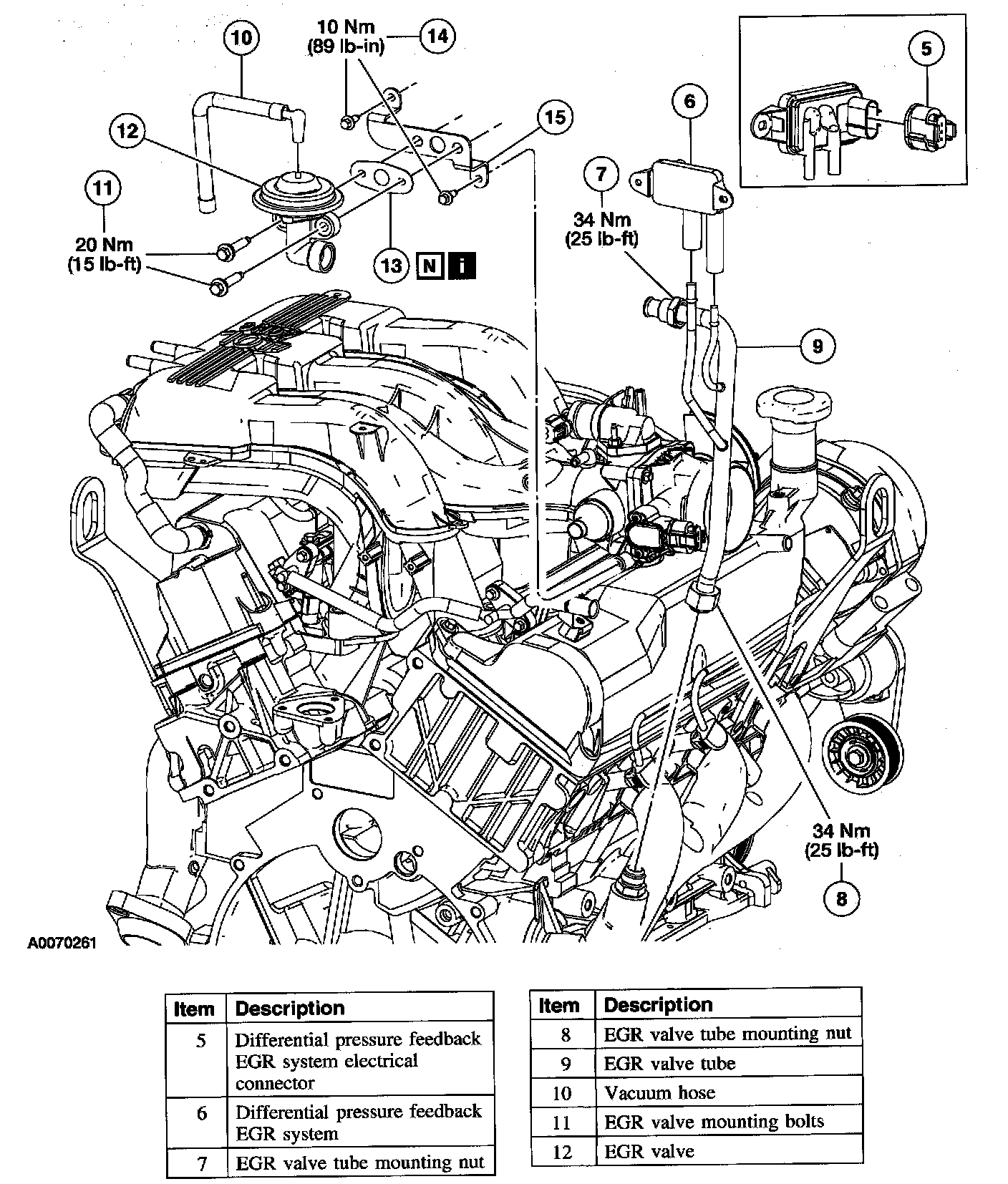

5. Illustration 2 of 2. Remove the components in the order indicated.
6. To install, reverse the removal procedure.

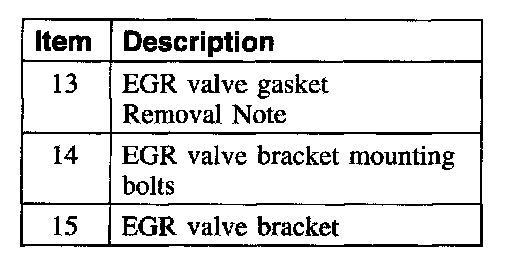

Item 13: EGR Valve Gasket Removal Note

1. NOTE: The EGR valve sealing surfaces are soft metals.

Carefully clean the EGR sealing surfaces.
