Test E

PINPOINT TEST E: EXCESSIVE FUEL ODOR

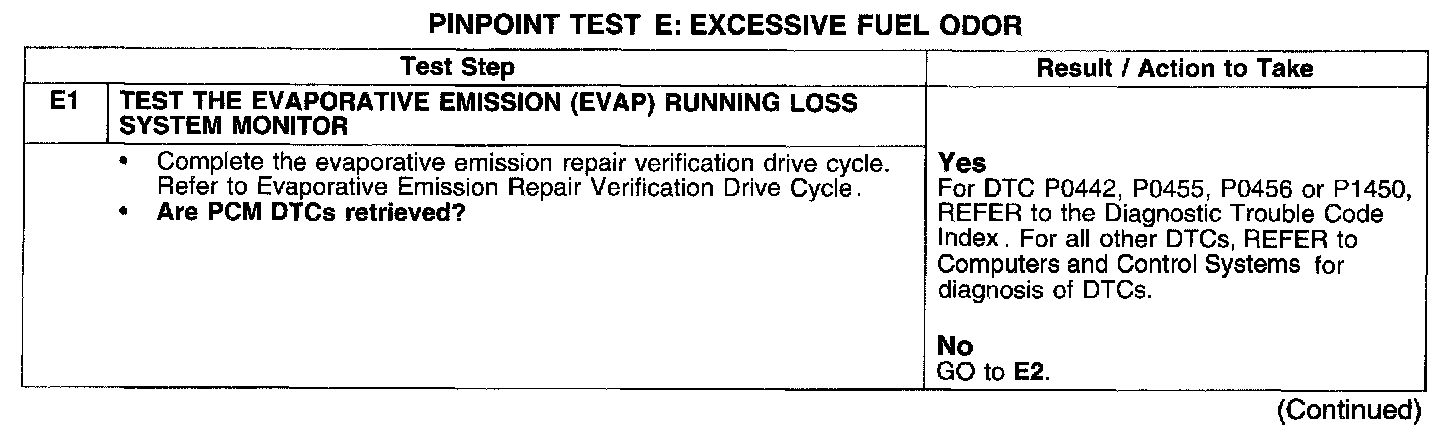

Test E1:

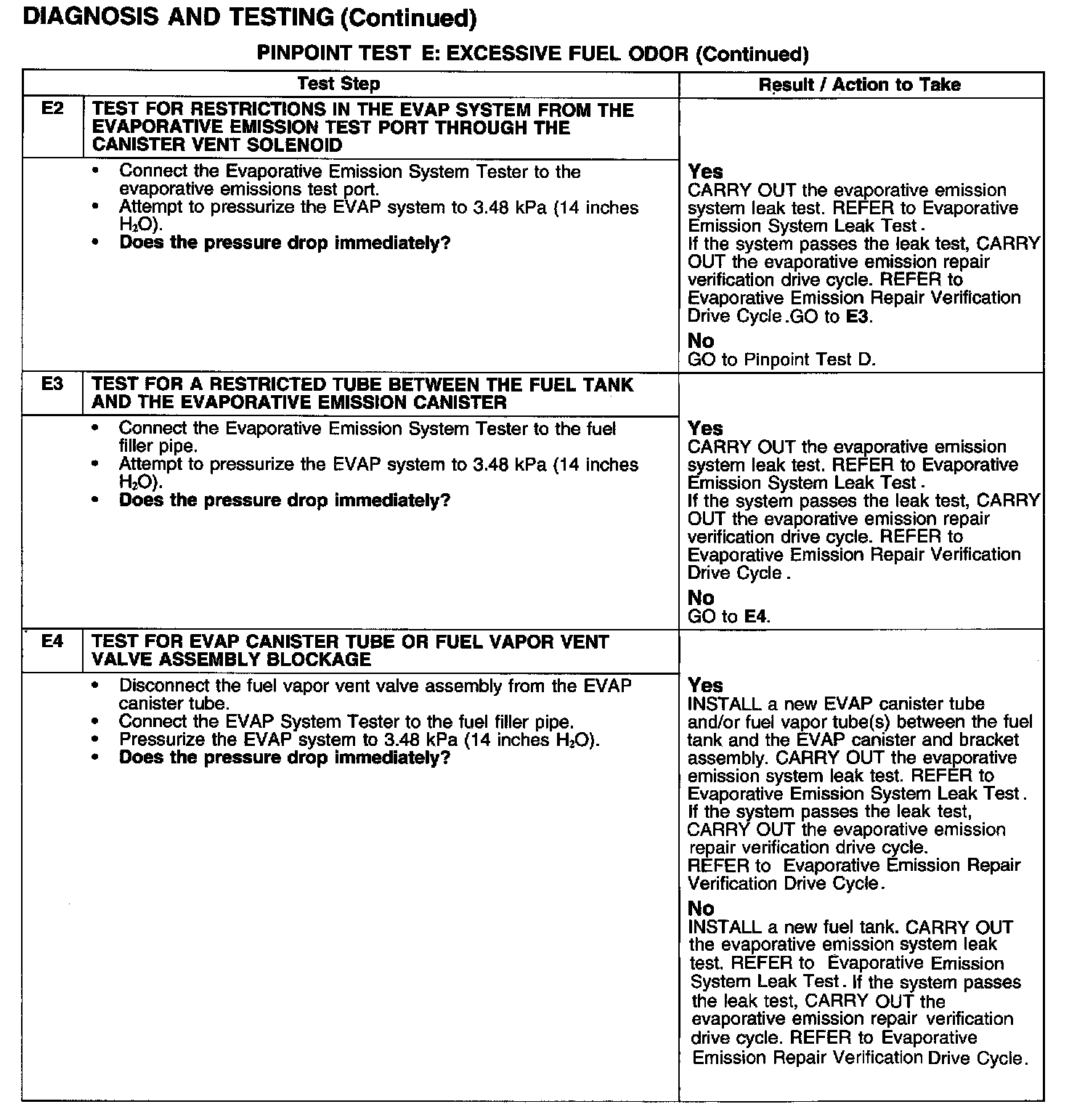

Test E2-E4:

Possible Causes
- Excessive fuel odor can be caused by:
- Blocked or restricted EVAP system components.
- Damaged fuel system or EVAP system components.
