Test D
Test D
PINPOINT TEST D: HISS WHEN OPENING FUEL CAP

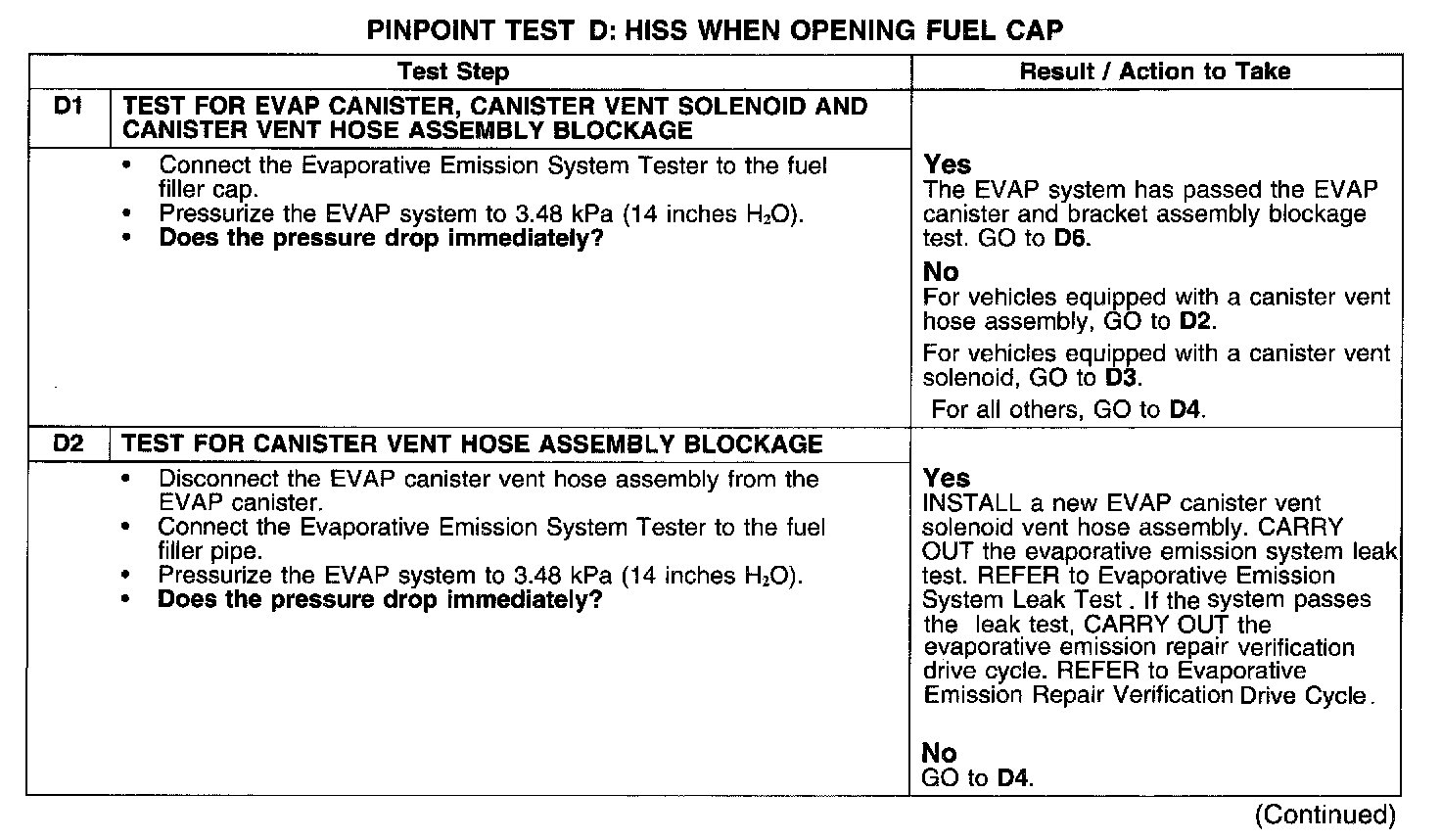

Test D1-D2:

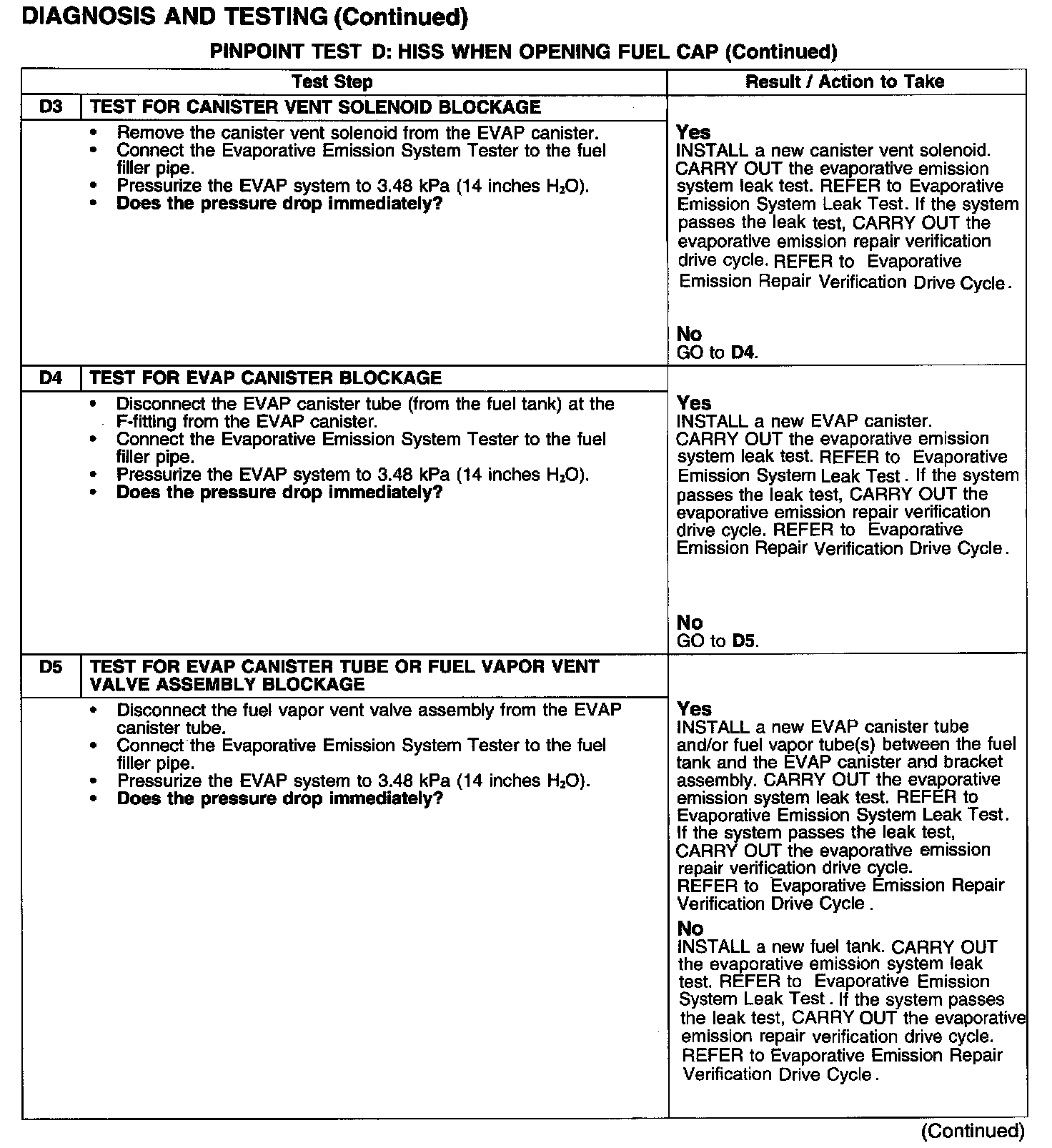

Test D3-D5:

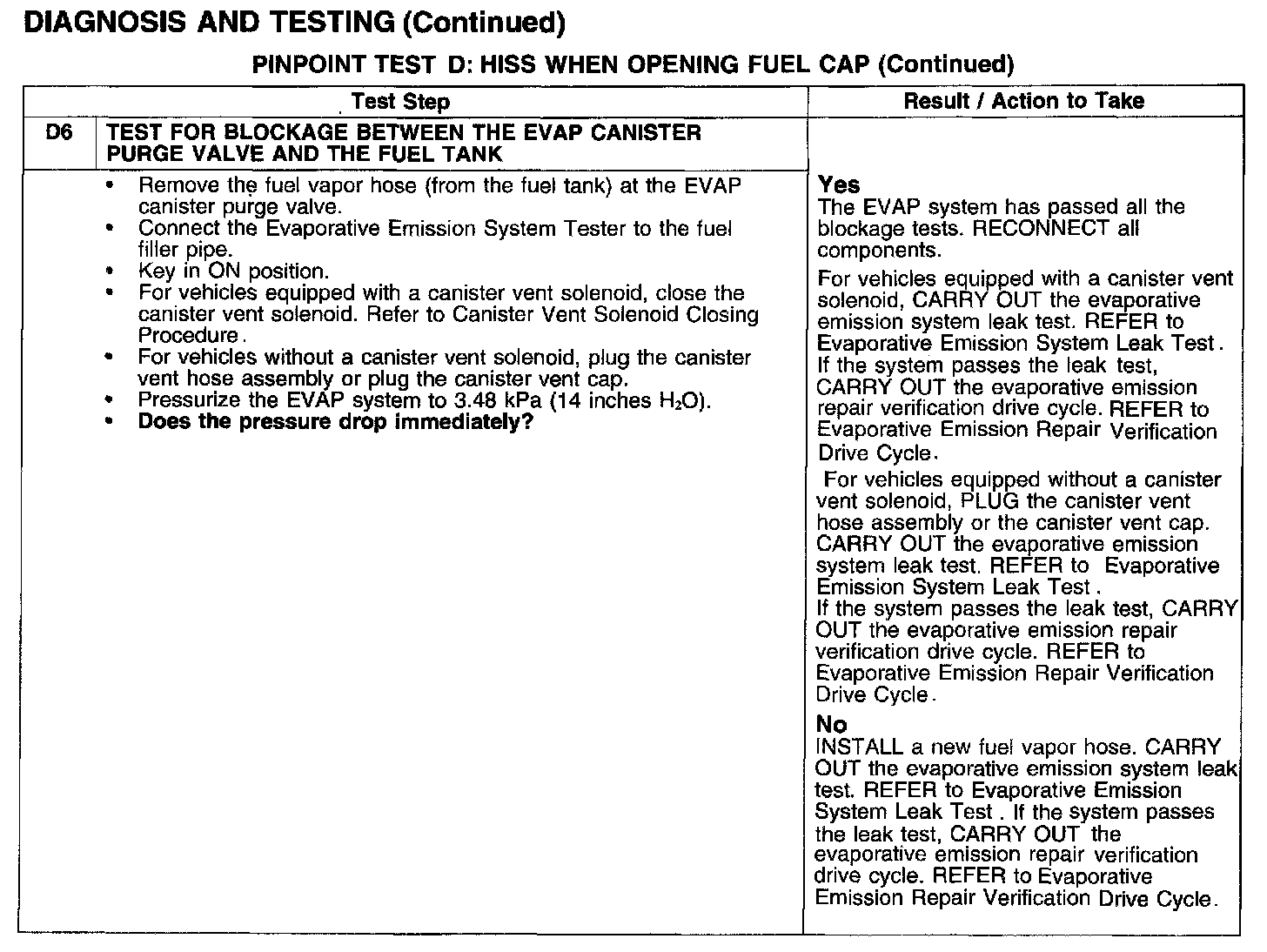

Test D6:
Possible Causes
-
A hissing sound heard when opening the
fuel filler cap
can be caused by:
-
Blocked or restricted EVAP system components.
