Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE

REMOVAL
1. Disconnect the battery ground cable.

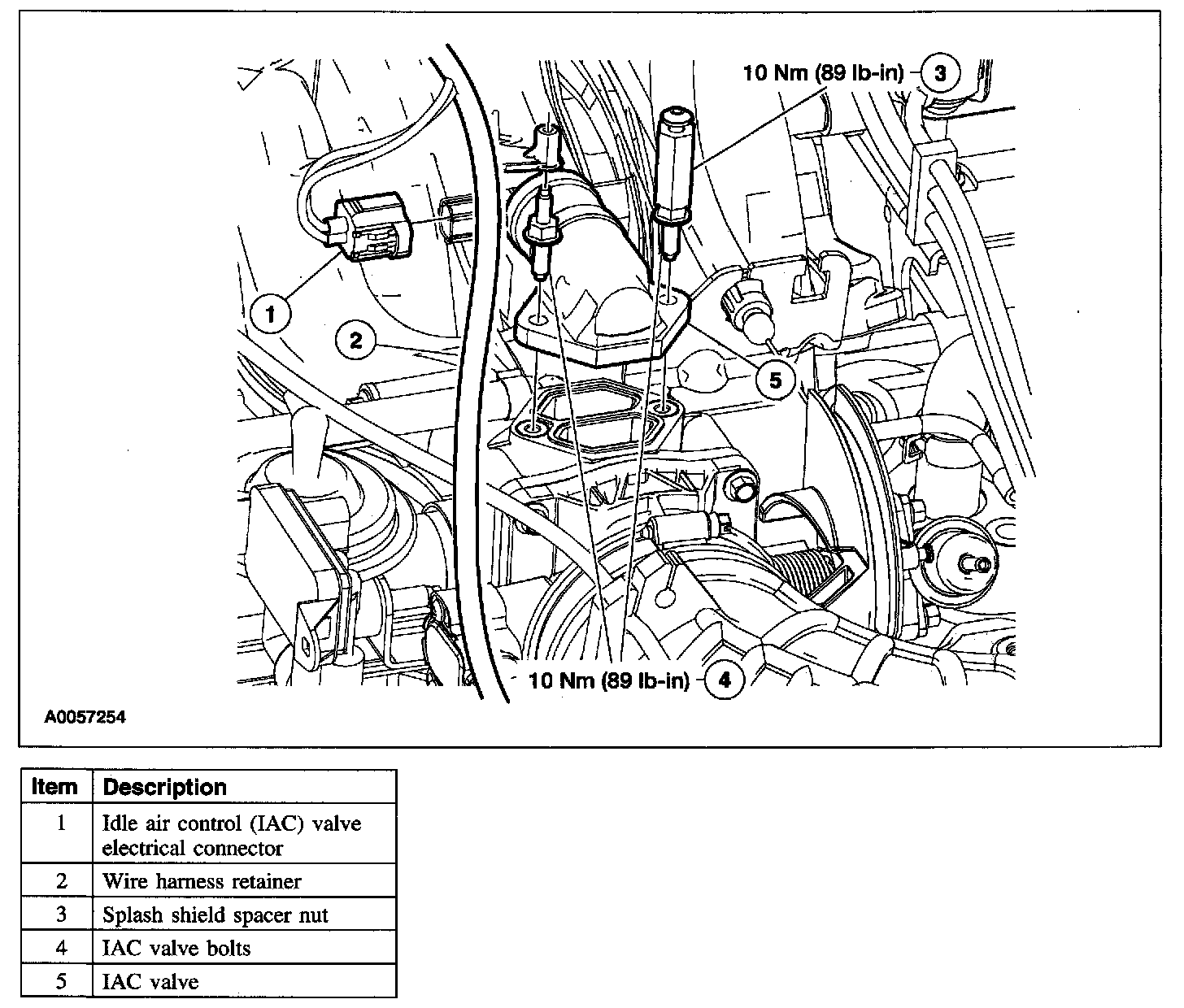

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
