Turn Signal Lamp: Service and Repair

SIDE TURN SIGNAL LAMP

NOTE: RH shown, LH similar.

REMOVAL
1. Remove the headlamp.

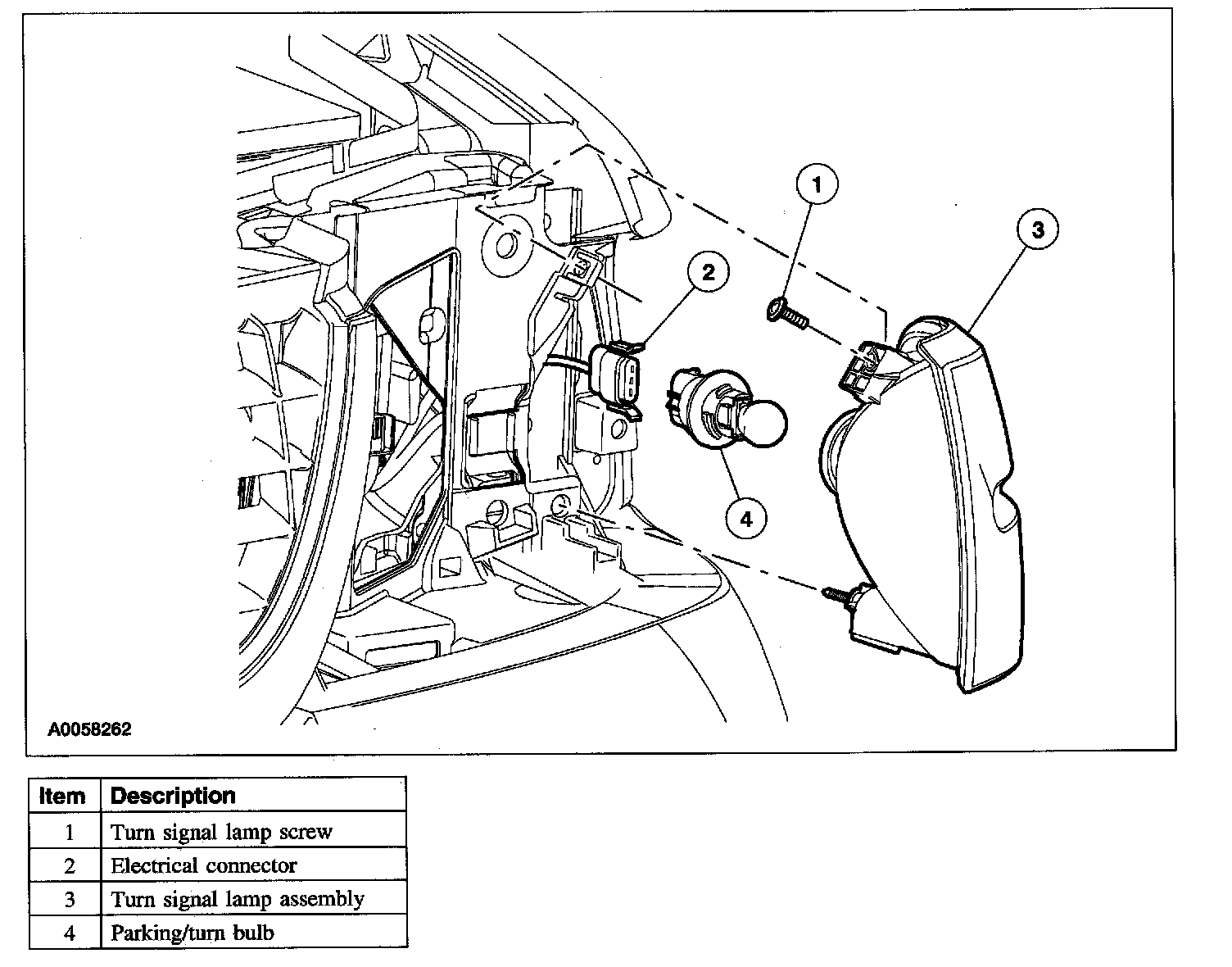

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
