Daytime Running Lamp Control Unit: Service and Repair

DAYTIME RUNNING LAMP (DRL) MODULE

REMOVAL

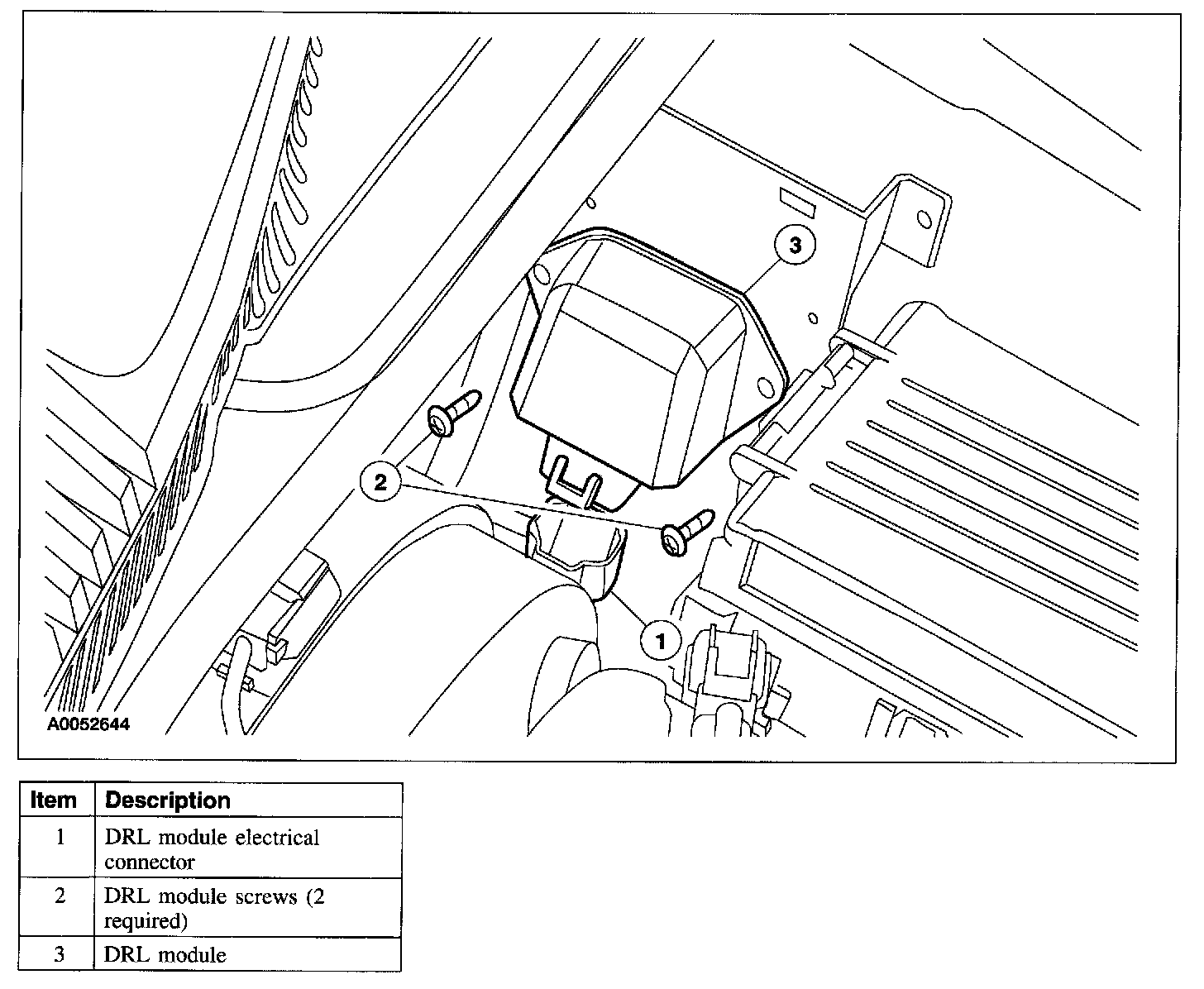

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
