Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> DRL Module C1030

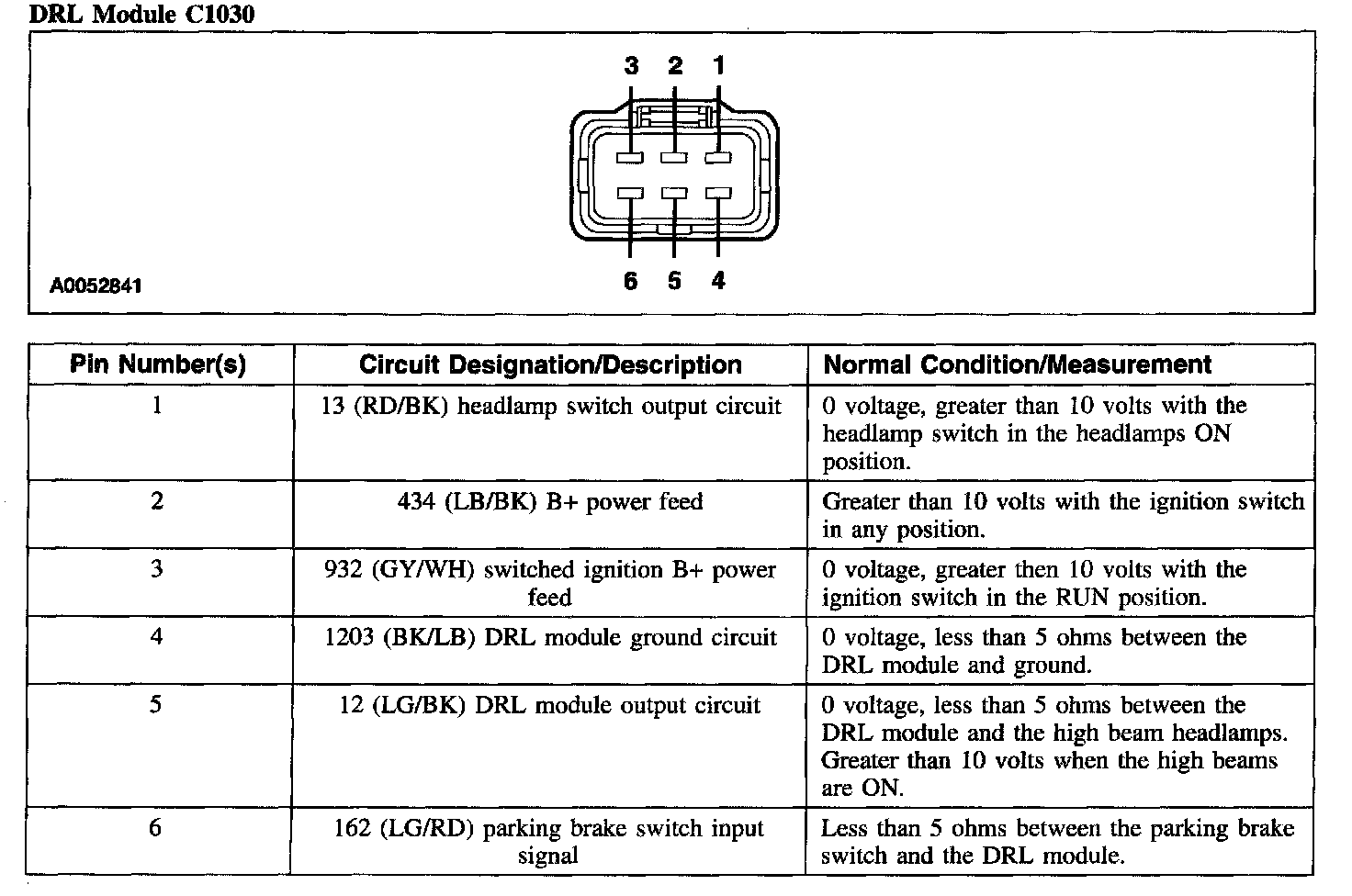

DRL Module C1030

DRL Module C1030:
