Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Trouble Code Diagnostic Charts - Instrument Cluster
>>
Instrument Cluster Diagnostic Trouble Code (DTC) Index
Instrument Cluster Diagnostic Trouble Code (DTC) Index

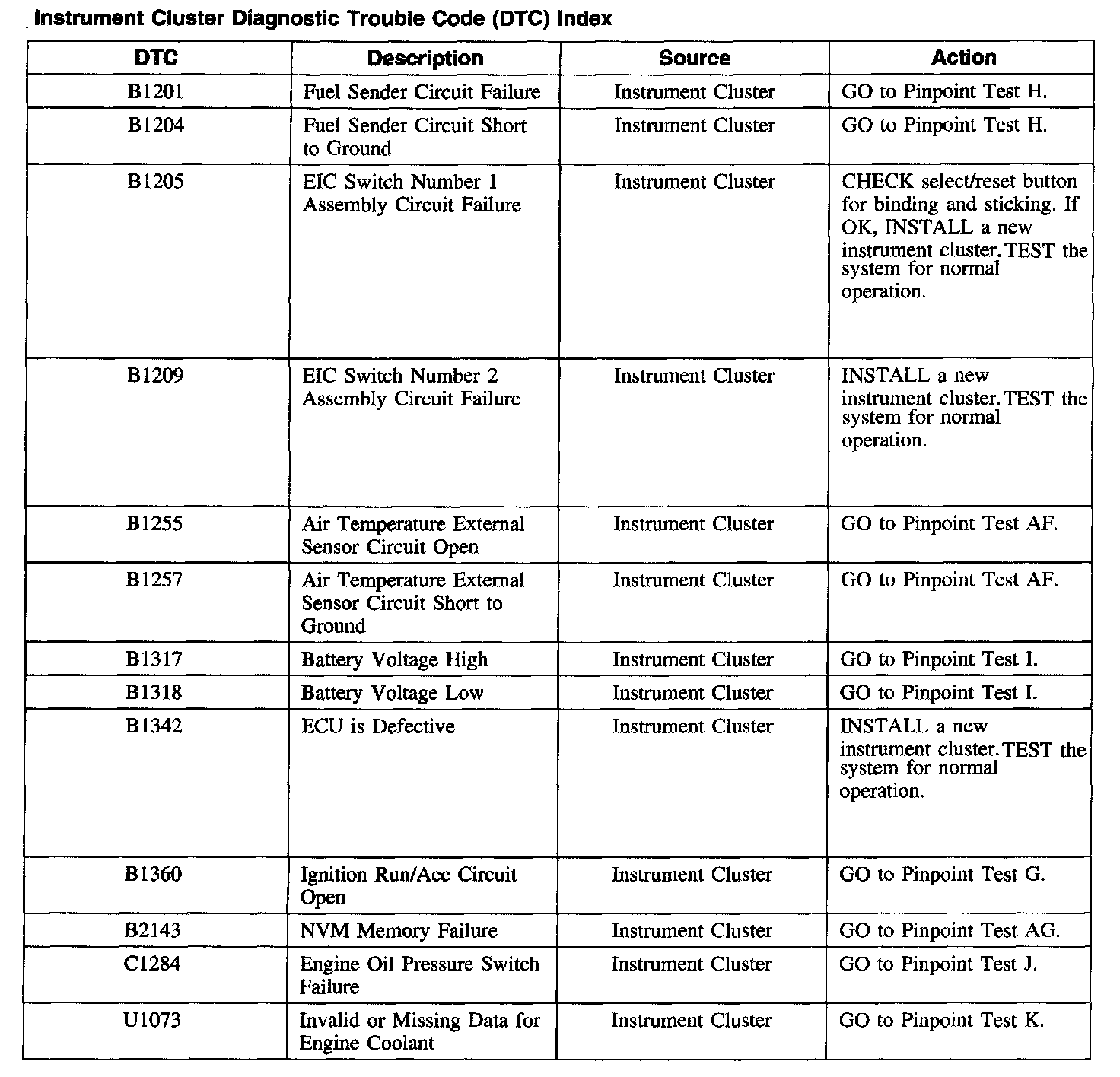

DTC Index B1201 - U1073:

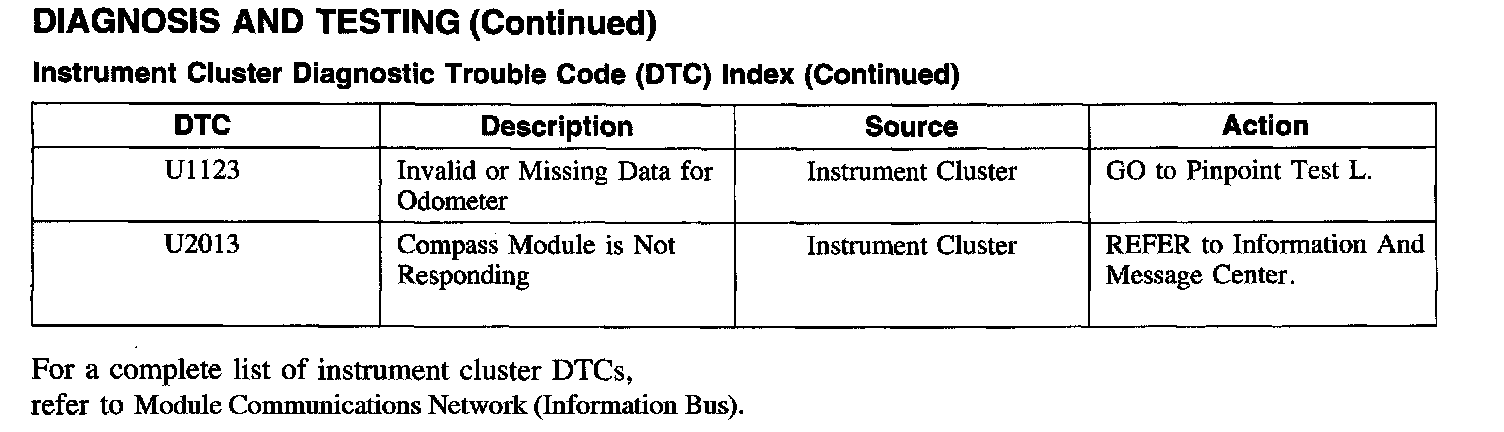

DTC Index U1123 - U2013:
