Function Selector Switch C294c - Manual Climate Control

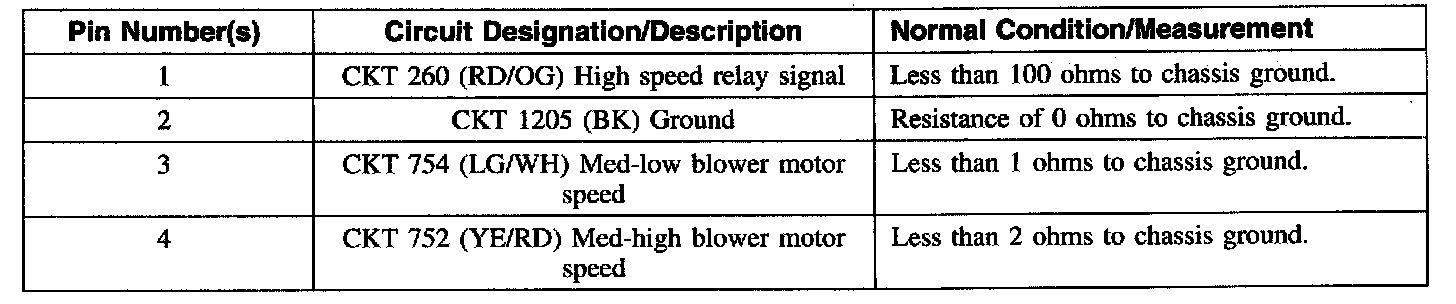

Function Selector Switch C294c - Manual Climate Control, Part 1:

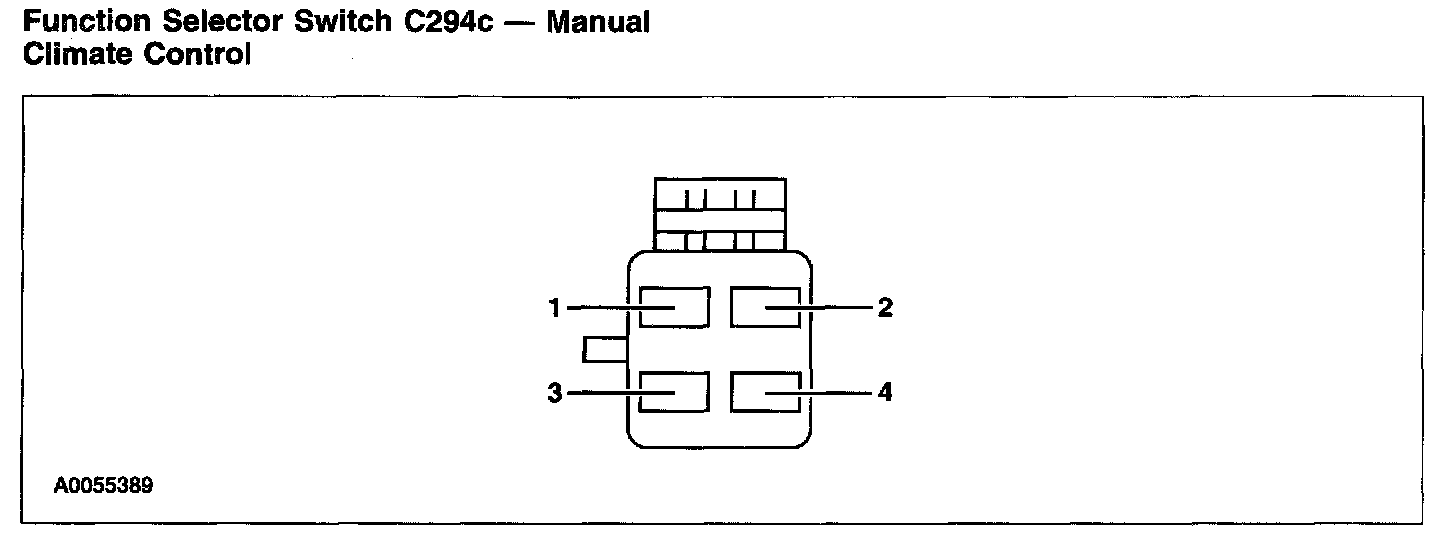

Function Selector Switch C294c - Manual Climate Control, Part 2:
