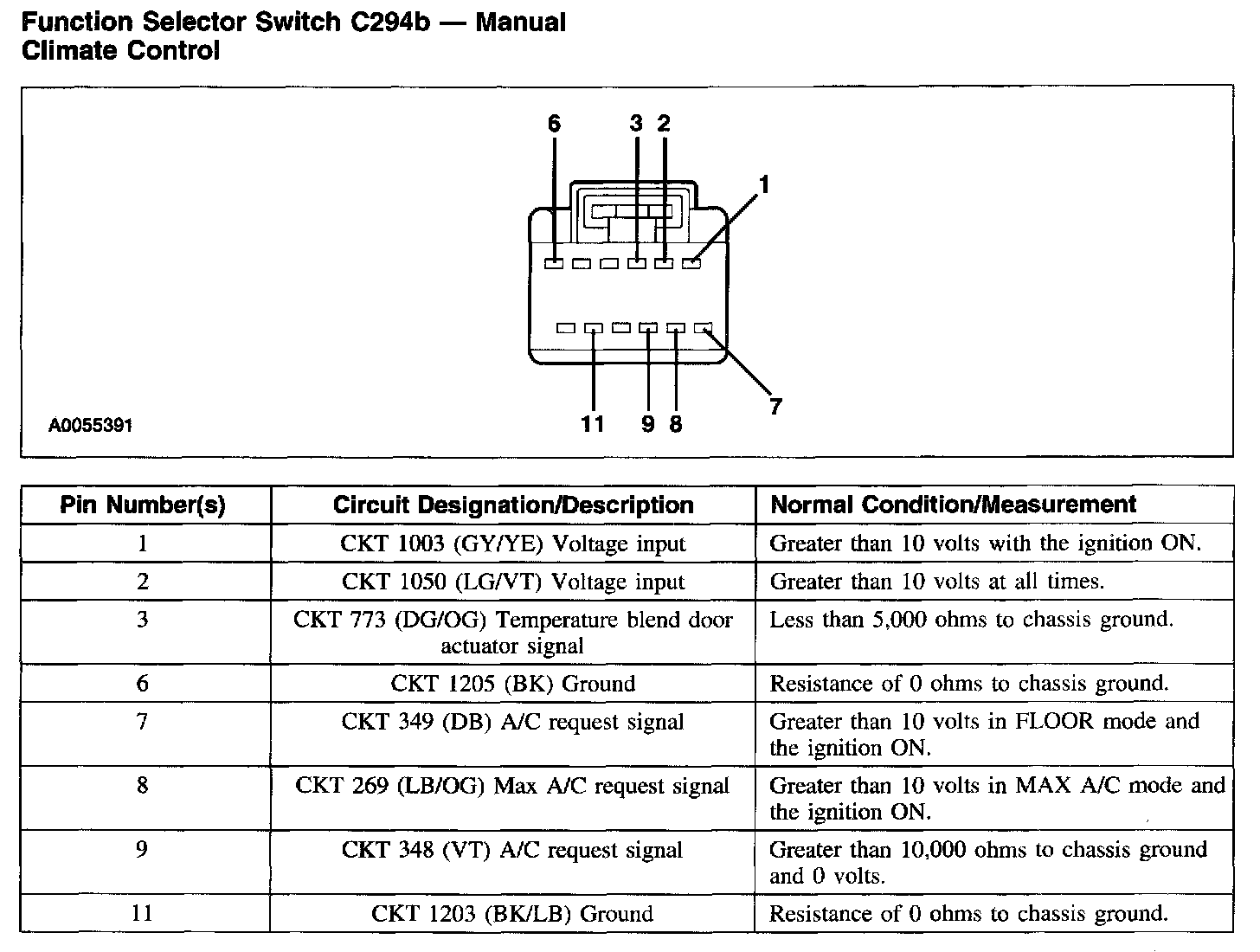

Function Selector Switch C294b - Manual Climate Control

Function Selector Switch C294b - Manual Climate Control:
